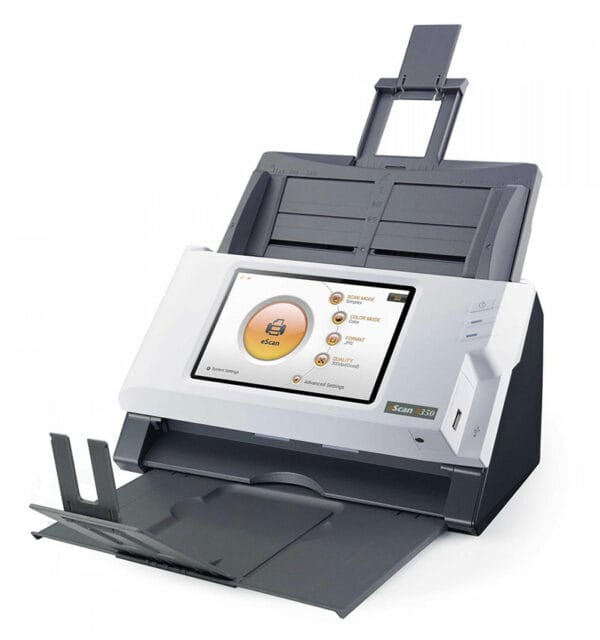

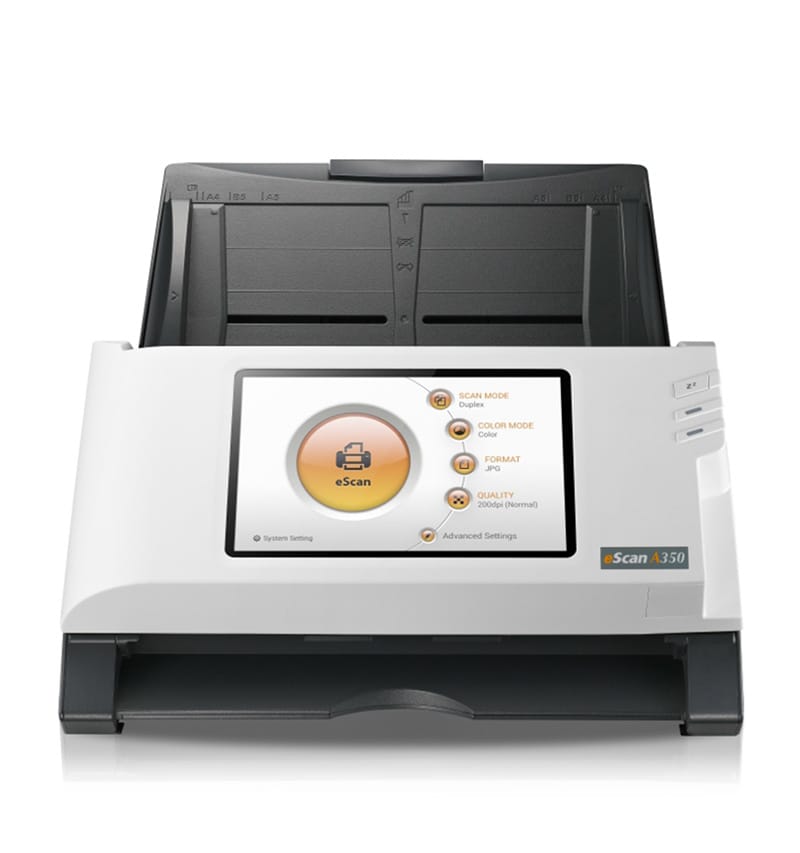

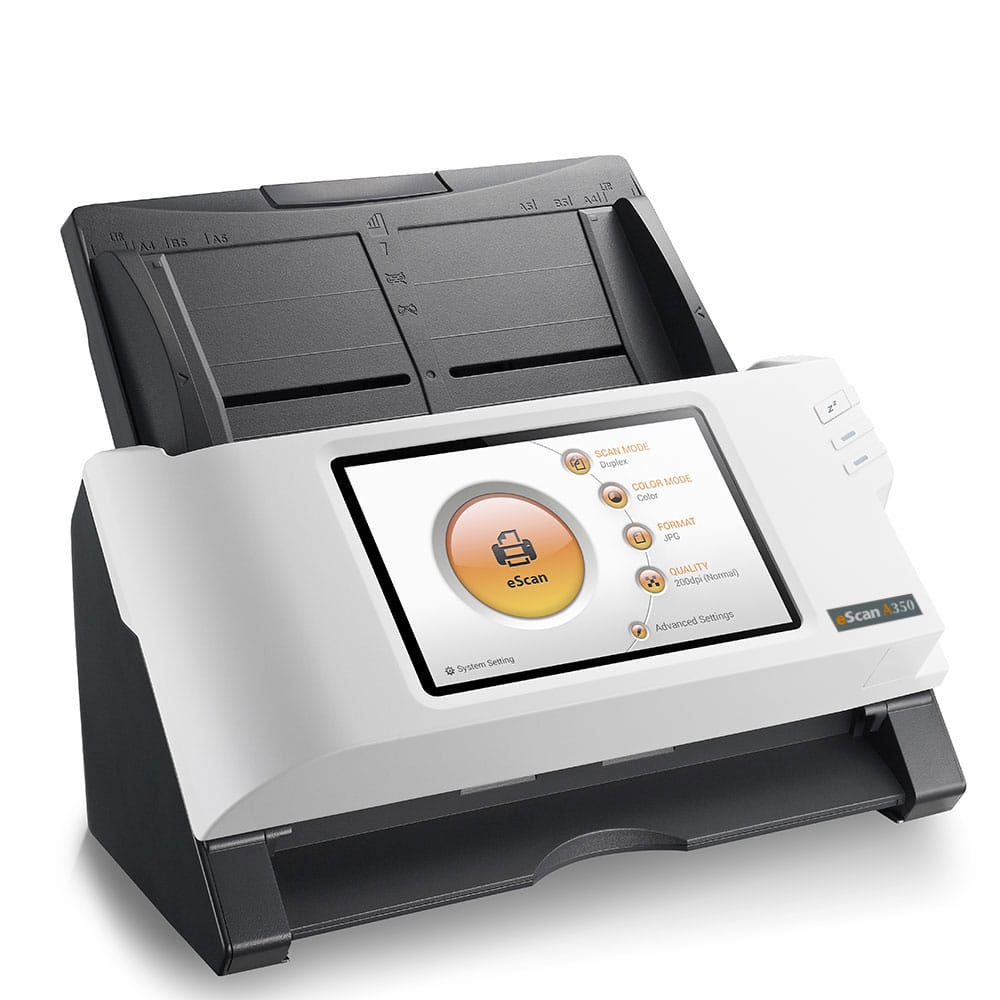

eScan A350

  • Standalone Network Attached Document Scanner
  • Plug & Play! Tap & Scan!
  • Scan, View and Save. Complete scanning in 3 simple steps!
  • Scan to multiple destinations
  • No PC required

Description

Plustek eScan Simply Easy!

Standalone network document scanner designed for easy setup and use.

  • No PC or additional software needed.
  •  Self-guided operation.
  •  Load your pages and tap a button to scan. Simple and Easy!
  •  Network TWAIN drivers enable use with thousands of applications.


Setup Easily

eScan works as easy as an appliance. End users can just plug the network cable and turn it on to start. There is no need for IT staff setup and training. Just respond to the three easy intuitive steps on our large seven inch LCD screen and you are on your way.

Scan

A Big eScan button is always waiting for your touch. If you have other requirements simply change the scan setting; it’s done!

View

eScan allows you to validate the scanned images in the thumbnail mode. It also allows you to review each individual page in full page mode to crop, rotate, or even redact the page. If you are happy with the scanned thumbnail image, you are ready to deliver!

Save

eScan is loaded with 9 destinations to choose from: USB drive, network folder, mobile, eMail address, or variety of cloud (Dropbox, Google Drive, Evernote, Box, SharePoint or FTP). Once a destination is selected just enter your credentials, cheers!

Sending to multiple destinations

From time to time you may want to send same document to different destinations. The eScan allows you to send the same scanned document over and over again.

Specification



TypeAutomatic Document Feeder (ADF), Wireless
Image SensorCIS x 2
Optical Resolution600 dpi
Hardware Resolution600 x 600 dpi
ADF Capacity50 sheets (70 g/m², 18 Lbs)
Note: Maximum ADF capacity varies, depending upon paper weight.

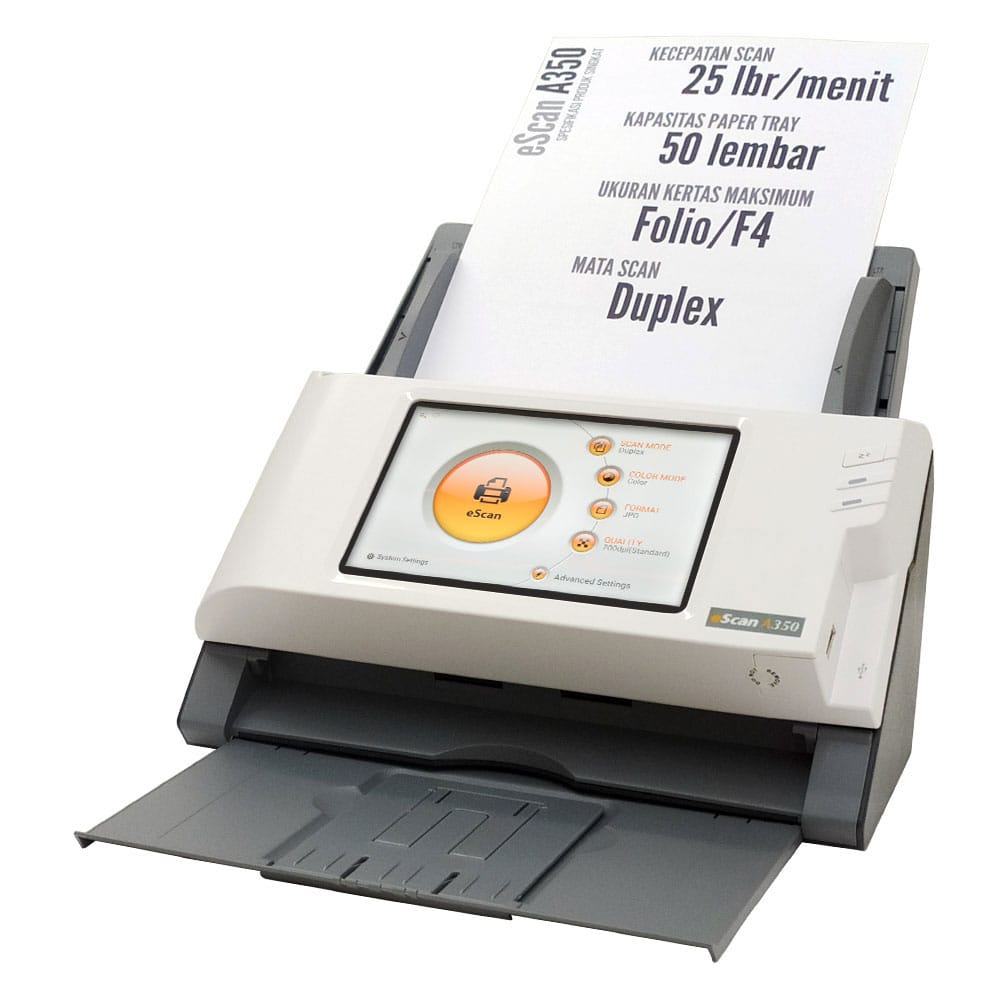

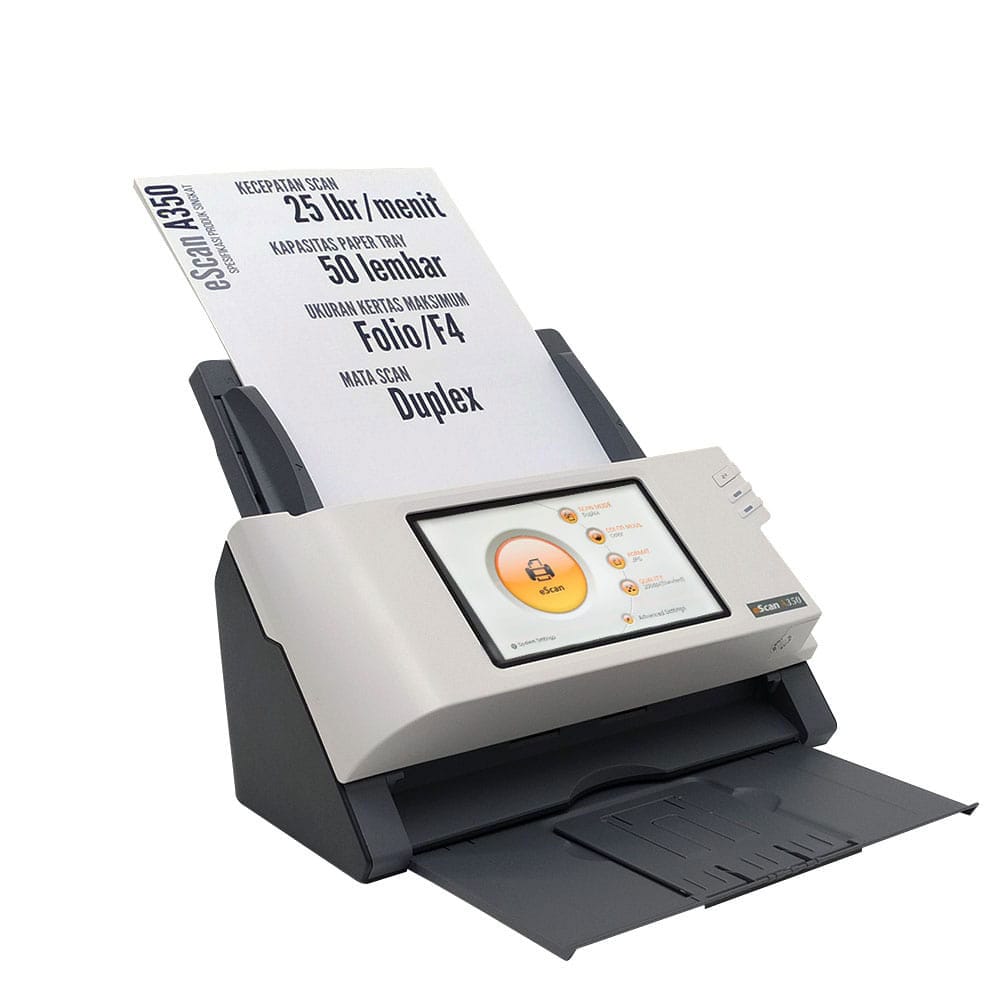

Scanning Speed ( ADF )25 ppm/ 50 ipm (Grayscale mode, 300 dpi, A4 Portrait)
25 ppm/ 50 ipm (Color mode, 300 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L)Max: 216 x 356 mm (8.5” x 14”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Scan: Name Card, A5, Quarto, Letter, A4, Folio (F4), Legal
Acceptable Paper Sizes (W x L)Max. 244 x 356 mm (9.6″ x 14″)
Min: 50.8 x 50.8 mm (2” x 2”)
Acceptable Paper Weight (Thickness)40 to 157 g/m² (12 to 40 Lbs)
Daily Duty Scan ( Sheets )6.000
Roller Lifetime (Scans)300.000
Pad Lifetime (Scans)200.000
Power Supply24Vdc/1.67 A
Network FunctionsScan to Mobile Device
Scan to FTP (Supports FTP/SFTP)

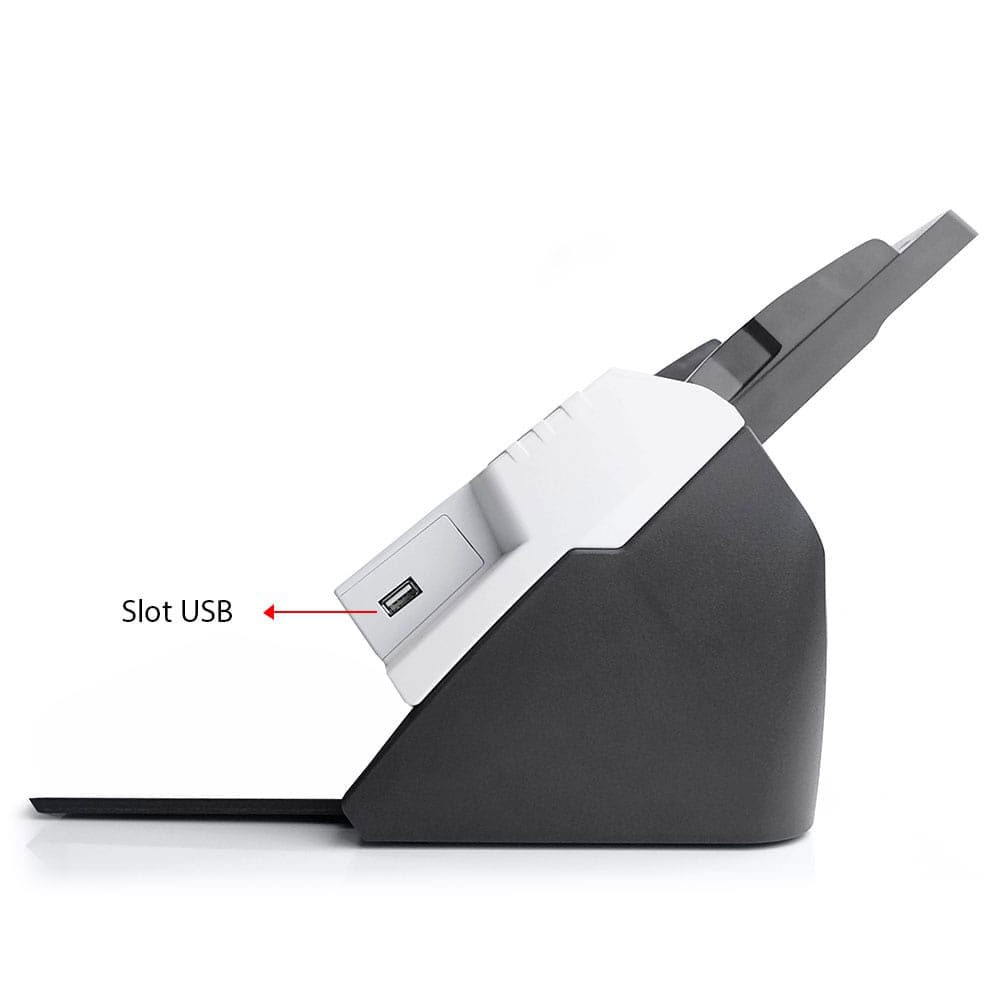

Scan to USB
Scan to PC
Scan to Email
Scan to Cloud
InterfaceUSB 2.0 x 1, RJ45 (network connection) x 1
Net Weight2.8 Kgs (6.17 Lbs)

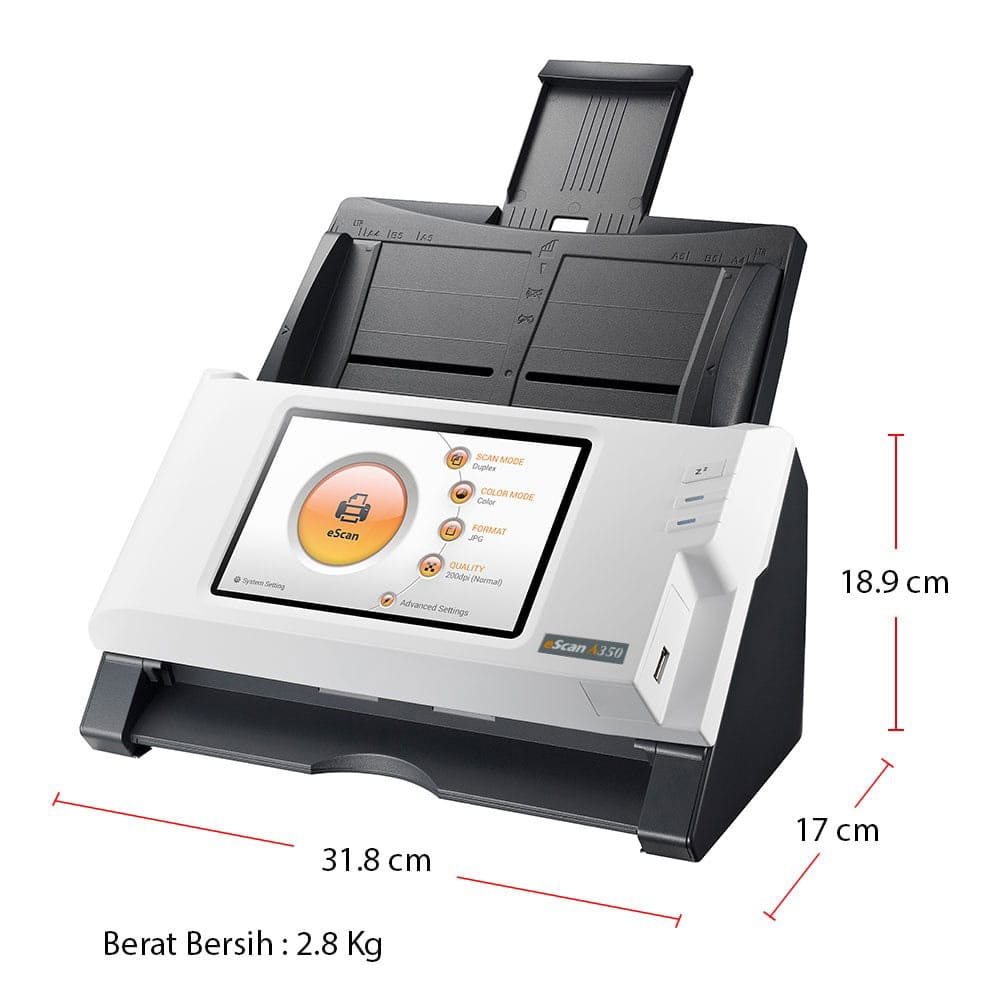

Dimensions (W x D x H)318 x 170 x 189 mm (12.53″ x 6.69″ x 7.45″)
Operating Temperature+ 5 °C to +35°C
OSWindows XP, Vista, 7, 8, 10
Mac 10.7, 10.8, 10.9, 10.10
Hardware RequirementsPentium® IV 2.0 GHz processor (Pentium IV 3.0 GHz processor recommended)
CD-ROM Driver
One available USB Port (USB 2.0 recommended)
1GB RAM or higher recommended
800 MB free HDD space (1 GB or larger recommended)



Product Weight Specification

Net Weight2,8 Kg
Bruto Weight6 Kg
Product Dimensions (W x D x H)31,8 x 17 x 18,9 cm
Box Dimensions (W x D x H)44 x 30 x 27 cm



Downloads



eScan Application Software :
Icons WindowsNetwork Scanner (USB TWAIN) A350 for Windows XP-10
Size : 135 mB (updated 15 October 2019)
Icons WindowseScanClient for Windows XP-10
Size : 13,9 mB (updated 27 February 2019)



Icons Apple eScan Client A150 for Mac 10.7-10.15
Size : 67 mB (updated 5 Juni 2019)



User Guide :
Icons-PDF eScan A350 User Guide
Size : 10.3 mB (updated 4 March 2019)
Leaflet :
Icons-PDF eScan A350 Leaflet
Size : 270 kB (updated 27 February 2019)
