SmartOffice PN30U

  • 30 ppm Duplex (Grayscale, 200dpi, A4)
  • 50 Sheets ADF Capacity
  • Business Cards to Legal Sized Documents Scanning Available
  • Network Scanner

SmartOffice PN30U

Scan Speed
30 ppm/ipm

Interface
USB and Network

Acceptable Paper Size
Up To 200

Compatible and comprehensive
Windows, Mac and TWAIN

The Plustek SmartOffice PN30U scanner is an easy to use network based office solution for sharing documents in today’s multi-location and global environment.

Scan to any PC on your network

The SmartOffice PN30U is perfect for small and medium sized offices that have the need to scan documents, but do not have the daily scan volume to justify a dedicated scanner for each employee. All PC users in the office are be able to digitize document with the same network.

Application
Send your scanned documents to the application

Save
Save directly to a shared folder or local folder, archive your documents more easily

Mail
Attach your documents and directly send via your default MAPI-based email program

Copy
Scan images straight to your printer without requiring saving to the device

FTP
Upload the documents directly to FTP

OCR+Searchable PDFs

Compatible with Windows and Mac support you can feel free to use in both operating systems. With the SDK kits you can easily develop the customize application for industry use. Option: the user interface of Android system for developers to further use.

Multi-feeding Detection

The PN30U prevents multi-feeds by checking the thickness of documents and detecting overlapping pages with the built-in ultrasonic multi-feeds detection capability. Users will be warned when a multi-feed is detected.

Spesifikasi Hardware

Type Automatic Document Feeder (ADF)
Image Sensor CIS Sensor x 2
Optical Resolution 600 dpi
Hardware Resolution 600 x 600 dpi
ADF Capacity 1. 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
2. 20 sheets (Business Cards)
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF ) 30 ppm/ 60 ipm (Grayscale mode, 200 & 300 dpi, A4 Portrait)
30 ppm/ 60 ipm (B&W mode, 200 & 300 dpi, A4 Portrait)
30 ppm/ 60 ipm (Color mode, 200 & 300 dpi, A4 Portrait)
Note : Kecepatan bisa berbeda-beda tergantung dari spesifikasi komputer.
Scanning Area (W x L) Max: 216 x 5080 mm (8.5” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Acceptable Paper Sizes (W x L) Max: 220 x 5080 mm (8.66” x 200”)
Min: 63.5 x 50.8 mm (2.5” x 2”)
Acceptable Paper Weight (Thickness) 50 to 105 g/㎡ (14 to 28 Lbs)
Multi-feed Detection With ultrasonic technology
Daily Duty Scan ( Sheets ) 4,000
Roller Lifetime (Scans) 300,000
Pad Lifetime (Scans) 50,000
Action Button 3 Buttons: Up, Down, Scan
9 Function Keys: All Customizable.
Power Supply 24 Vdc/ 0.75 A

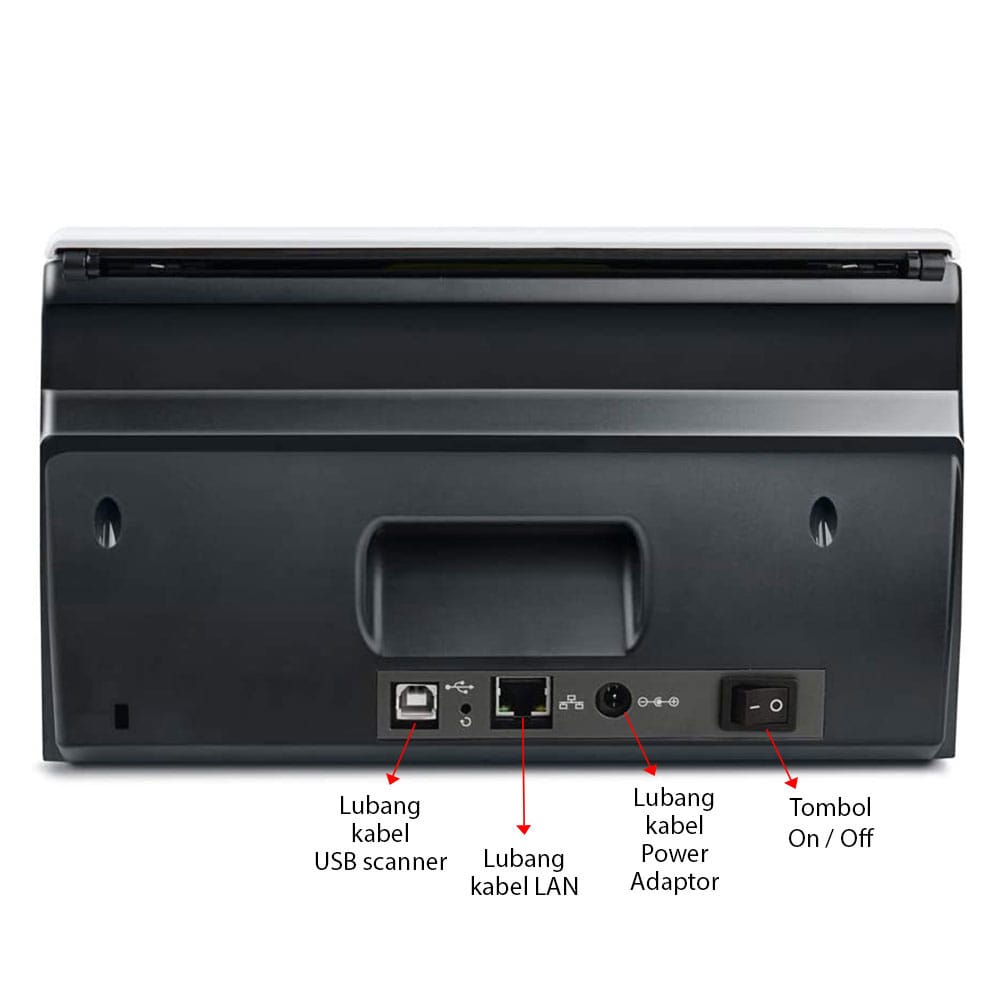

Interface USB 2.0 x 1
RJ45 LAN (network connection) x 1
Net Weight 1.66 Kgs (3.66 Lbs)

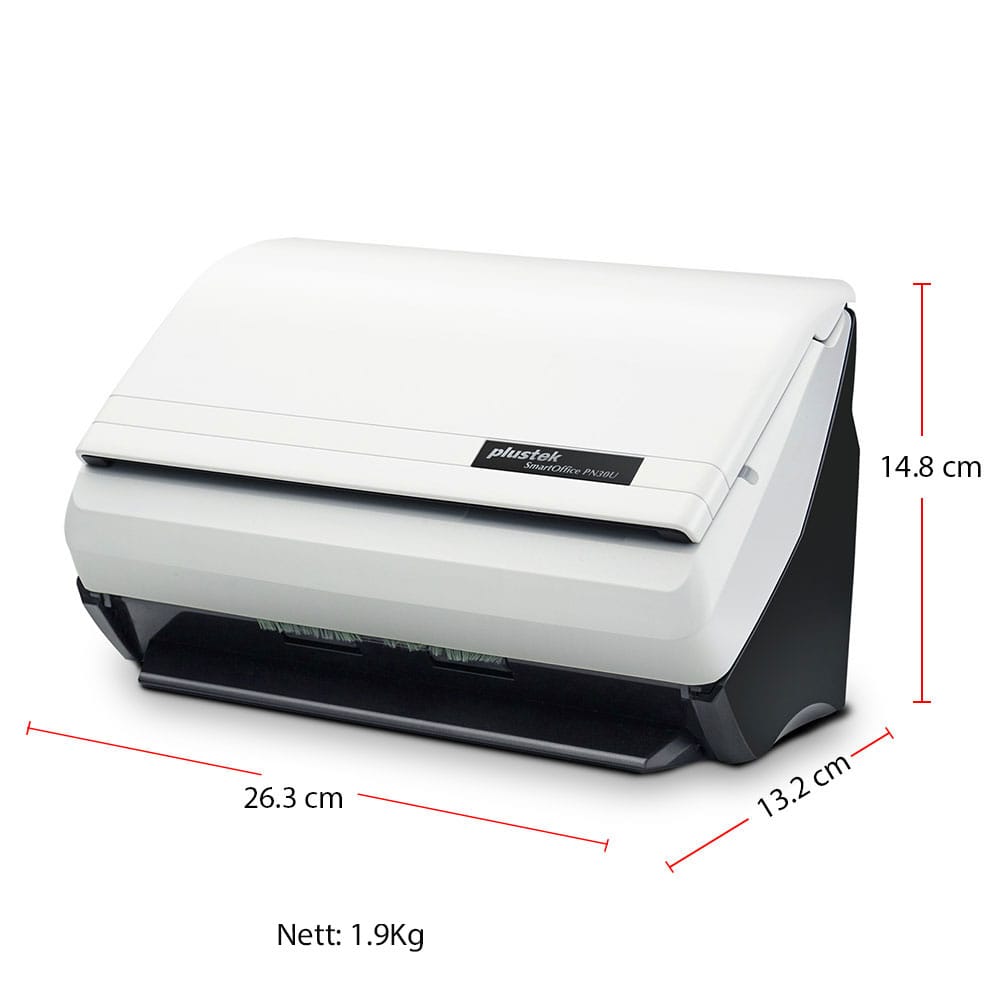

Dimensions (W x D x H) 263 x 128 x 148 mm (10.36″ x 5.02″ x 5.83″)
Protocol TWAIN Compliant
OS Windows XP / Vista / 7 / 8 / 10 / 11
macOS 10.12/13.x
Linux compatibility is only available for system integrators. Please contact [email protected] for more info.
Hardware Requirements Windows and Mac
2.0 GHz CPU processor or higher[1][2][3]
[1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher
[2]Support Mac INTEL and M1 based processor
[3]Compatibility is not available with PowerPC
4 GB RAM minimum (Recommended: 8 GB or more)
6 GB of hard-disk space for program installation
Display dimensions of 1024×768 or greater

[elementor-template id=”10474″]

Downloads



Driver Scanner :
SmartOffice PN30U Driver for Windows XP – 11
Size : 157 mB (updated 18 Oct 2022)



SmartOffice PN30U Driver for MacOS 10.8 – 12.x
Size : 294 mB (updated 22 Dec 2022)
Leaflet :
SmartOffice PN30U Leaflet
Size : 0.63 mB (updated 28 Dec 2021)
