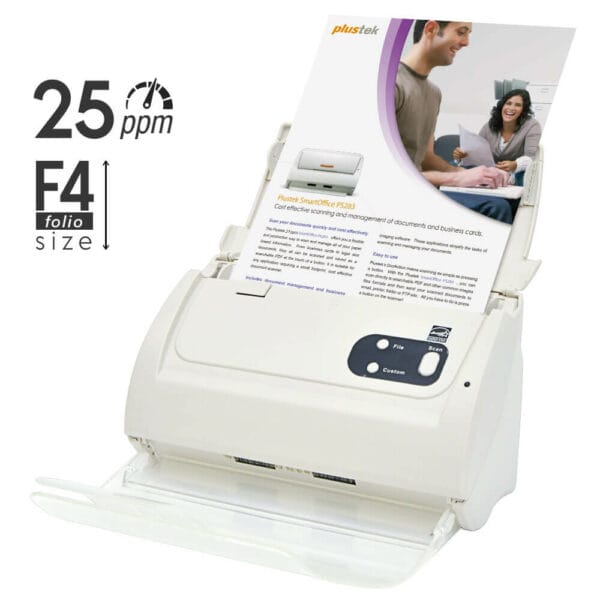

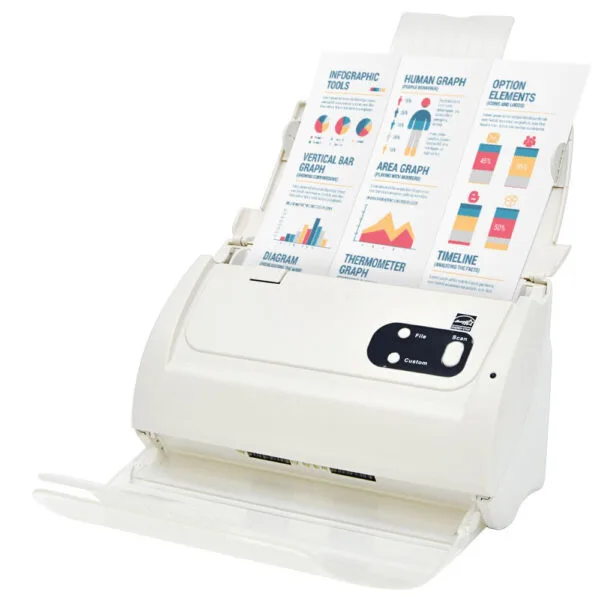

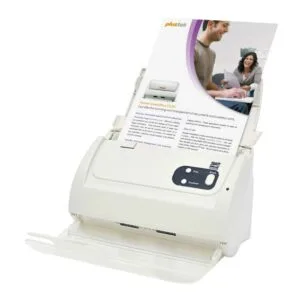

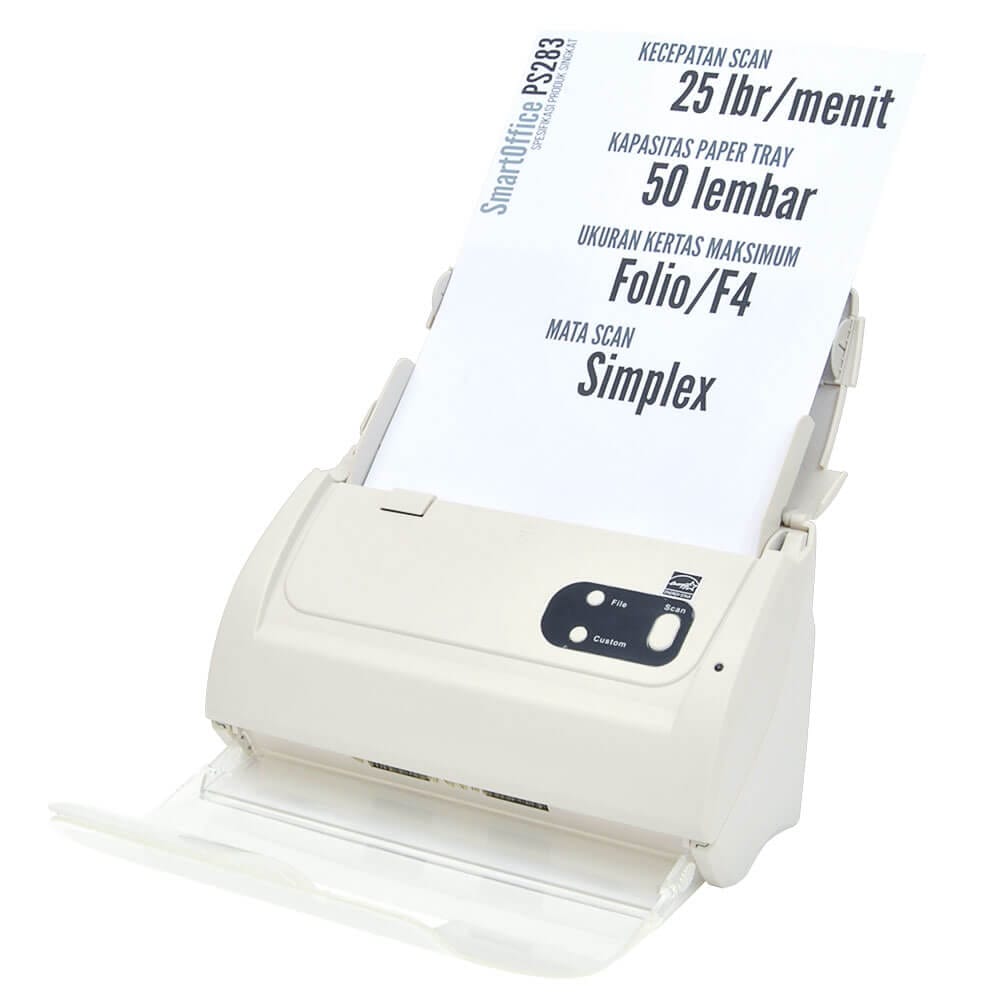

SmartOffice PS283

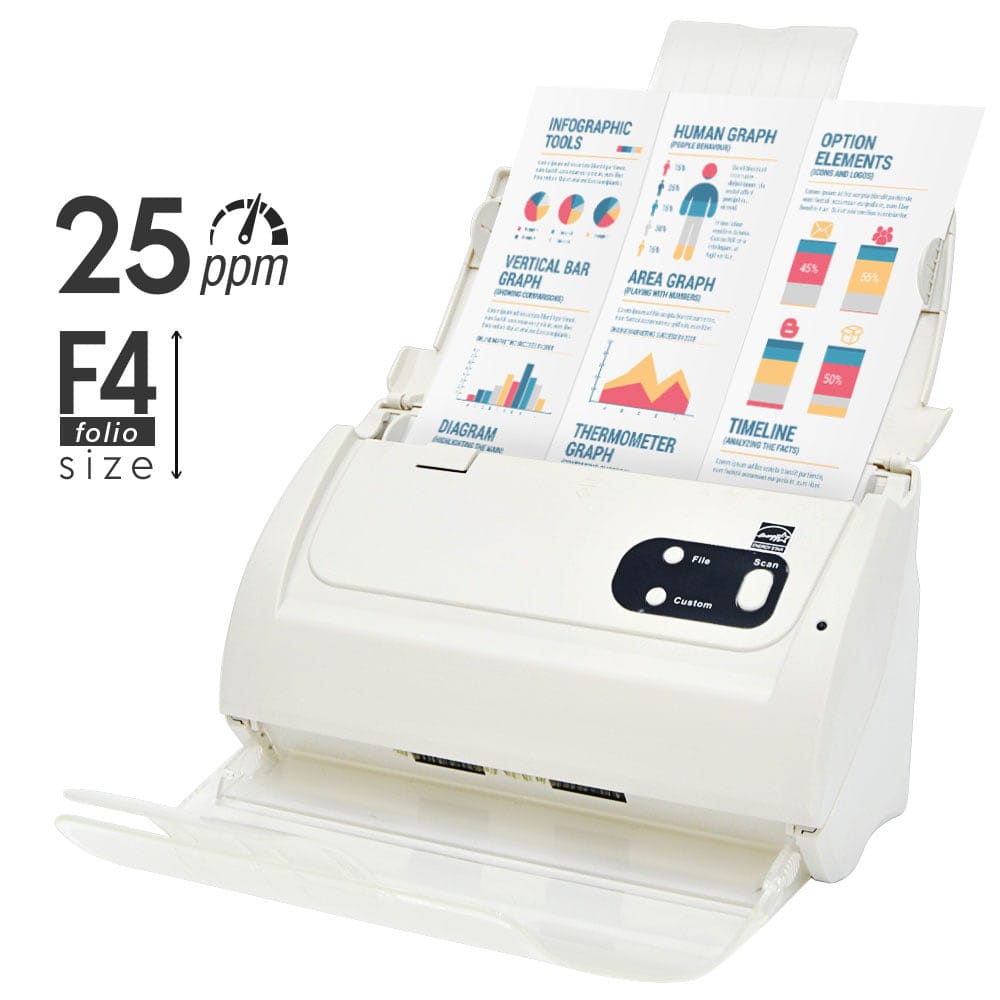

- 25 ppm Simplex Color Scanning
- 50 Sheets ADF Capacity

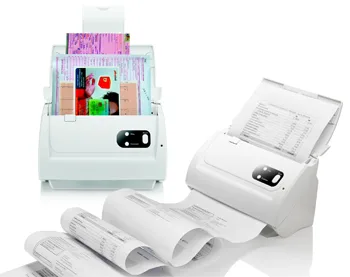

- Business Cards to Legal Sized Documents Scanning Available

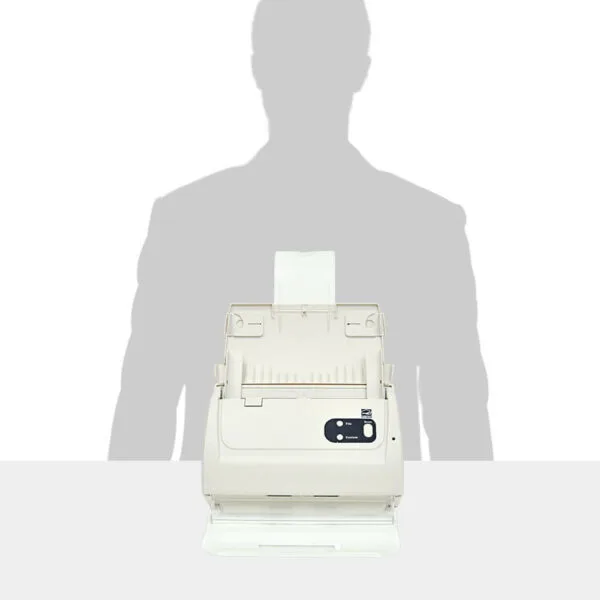

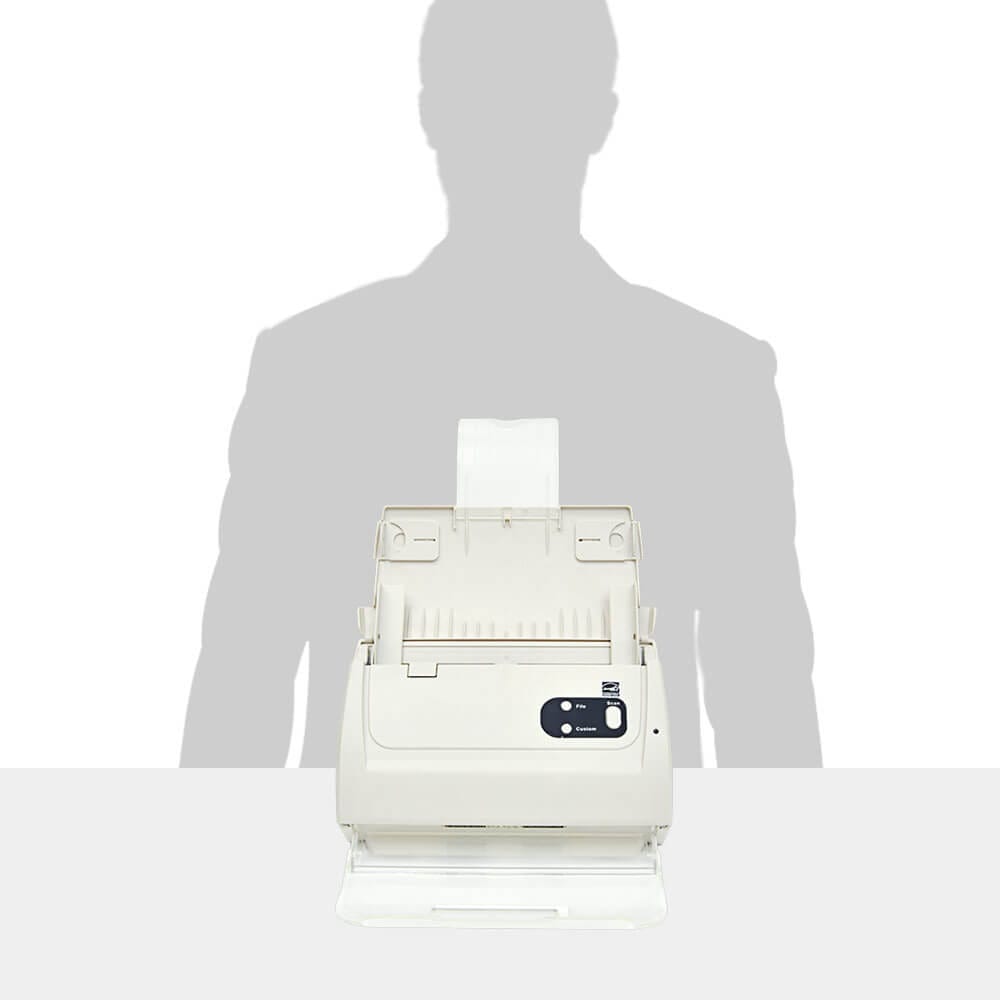

- Small Footprint
Specification
Type | Automatic Document Feeder (ADF) |
Image Sensor | CIS |
Optical Resolution | 600 dpi |
Hardware Resolution | 600 x 600 dpi |
ADF Capacity | 1. 50 sheets (A4/Letter, 70 g/㎡ or 18 lb.), Max. thickness under 5mm (0.2″). |
2. 20 sheets (Business Cards) | |
Note: Maximum ADF capacity varies, depending upon paper weight. | |
Scanning Speed ( ADF ) | 25 ppm (Grayscale mode, 200 dpi, A4 Portrait) |
25 ppm (B&W mode, 200 dpi, A4 Portrait) | |
9 ppm (Color mode, 200 dpi, A4 Portrait) | |
Note: Results may vary depending upon your scanning application, computer processor and system memory. | |
Scanning Area (W x L) | Max: 216 x 356 mm (8.5” x 14”) |
Min: 13.2 x 13.2 mm (0.52” x 0.52”) | |
Scan: Name Card, A5, Quarto, Letter, A4, Folio (F4), Legal | |
Acceptable Paper Sizes (W x L) | Max: 220 x 356 mm (8.66” x 14”) |
Min: 50.8 x 50.8 mm (2” x 2”) | |
Acceptable Paper Weight (Thickness) | 50 to 105 g/㎡ (14 to 28 Lbs) |
Daily Duty Scan ( Sheets ) | 1.500 |
Roller Lifetime (Scans) | 100.000 |
Pad Lifetime (Scans) | 20.000 |
Action Button | Scan, File, Custom (PDF) |
Power Supply | 24 Vdc/ 0.75 A |

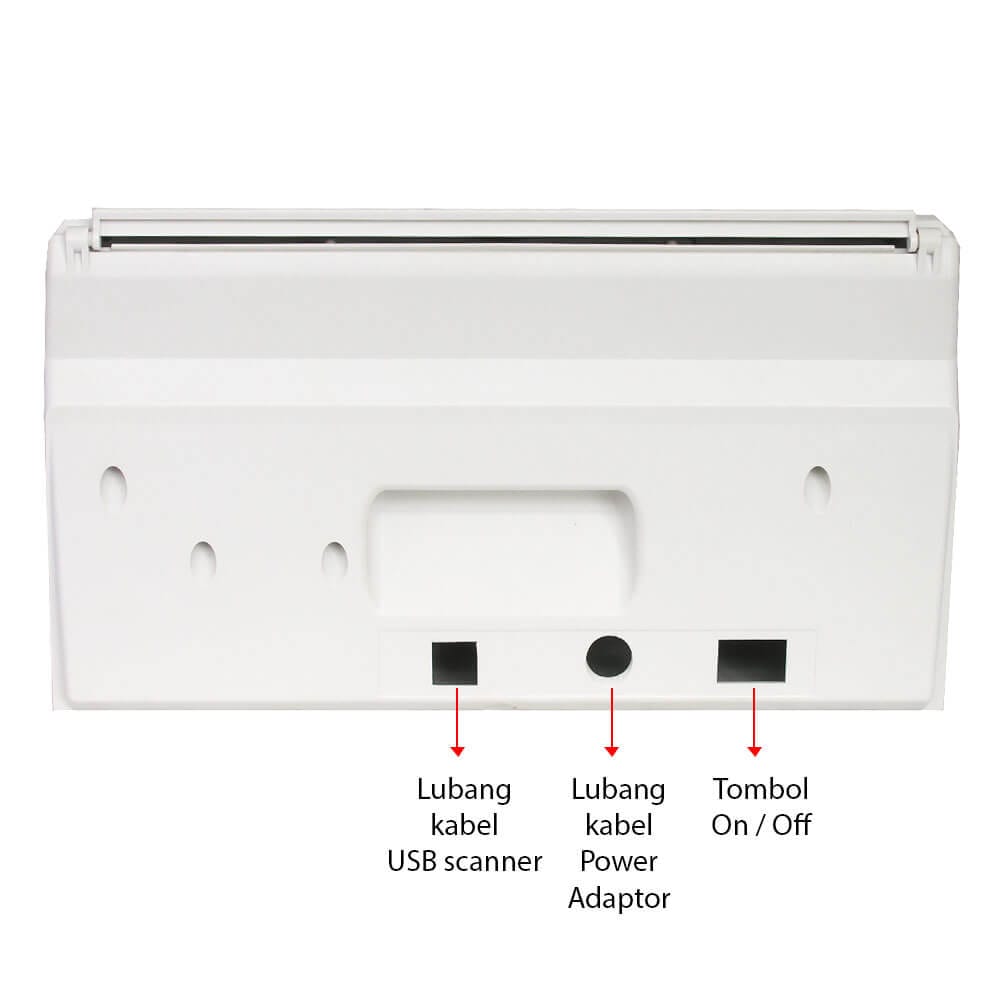

Interface | USB 2.0 |
Net Weight | 1.66 Kgs (3.66 Lbs) |
Dimensions (W x D x H) | 263 x 127.5 x 148 mm (10.36” x 5.02” x 5.83”) |
Protocol | TWAIN Compliant |
OS | Windows XP, Vista, 7, 8, 10 |
Hardware Requirements | Pentium® IV 2.0 GHz processor (Pentium IV 3.0 GHz processor recommended) |
CD-ROM Driver | |
One available USB Port (USB 2.0 recommended) | |
1GB RAM or higher recommended | |
800 MB free HDD space (1 GB or larger recommended) |
Product Weight Specification
Net Weight | 1,66 Kg |
Bruto Weight | 4 Kg |

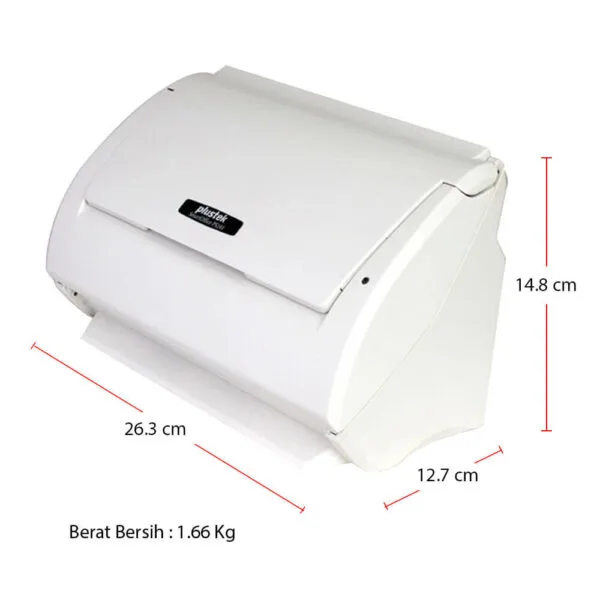

Product Dimensions (W x D x H) | 26,3 x 12,7 x 14,8 cm |
Box Dimensions (W x D x H) | 36 x 25 x 24 cm |
