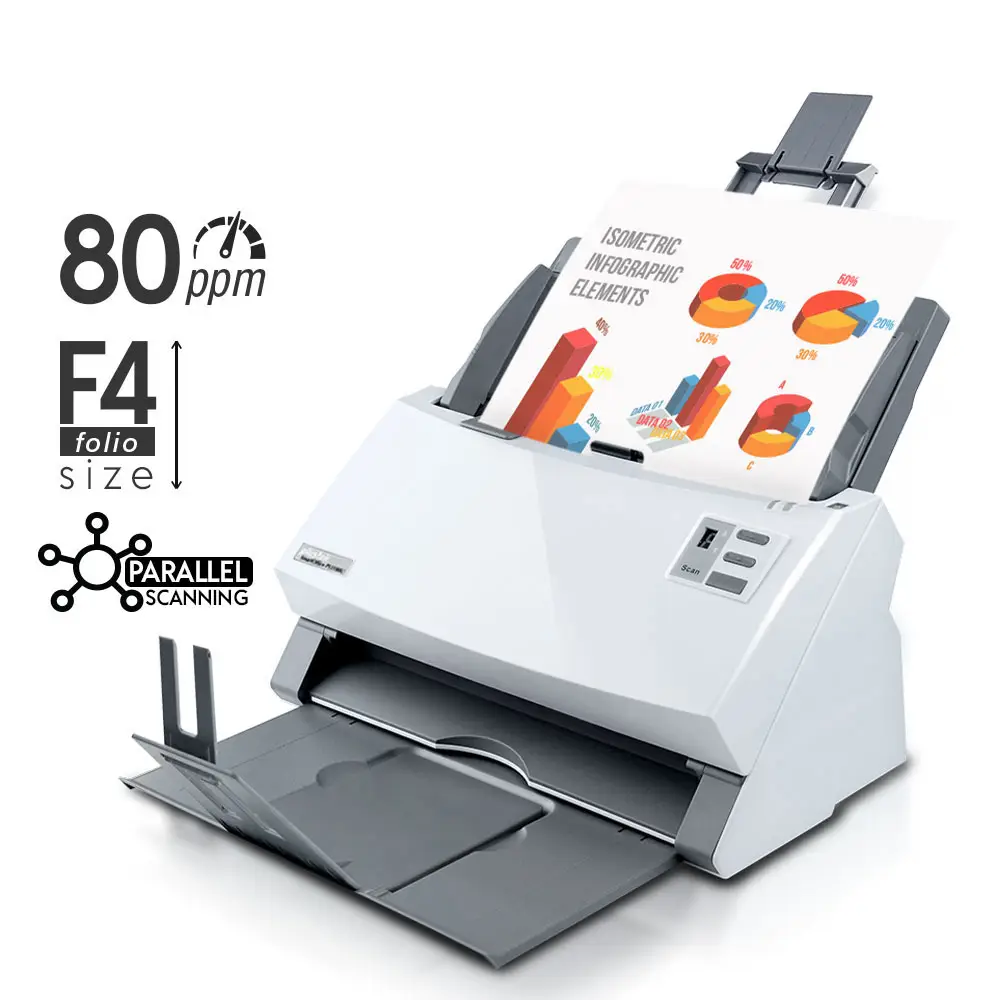

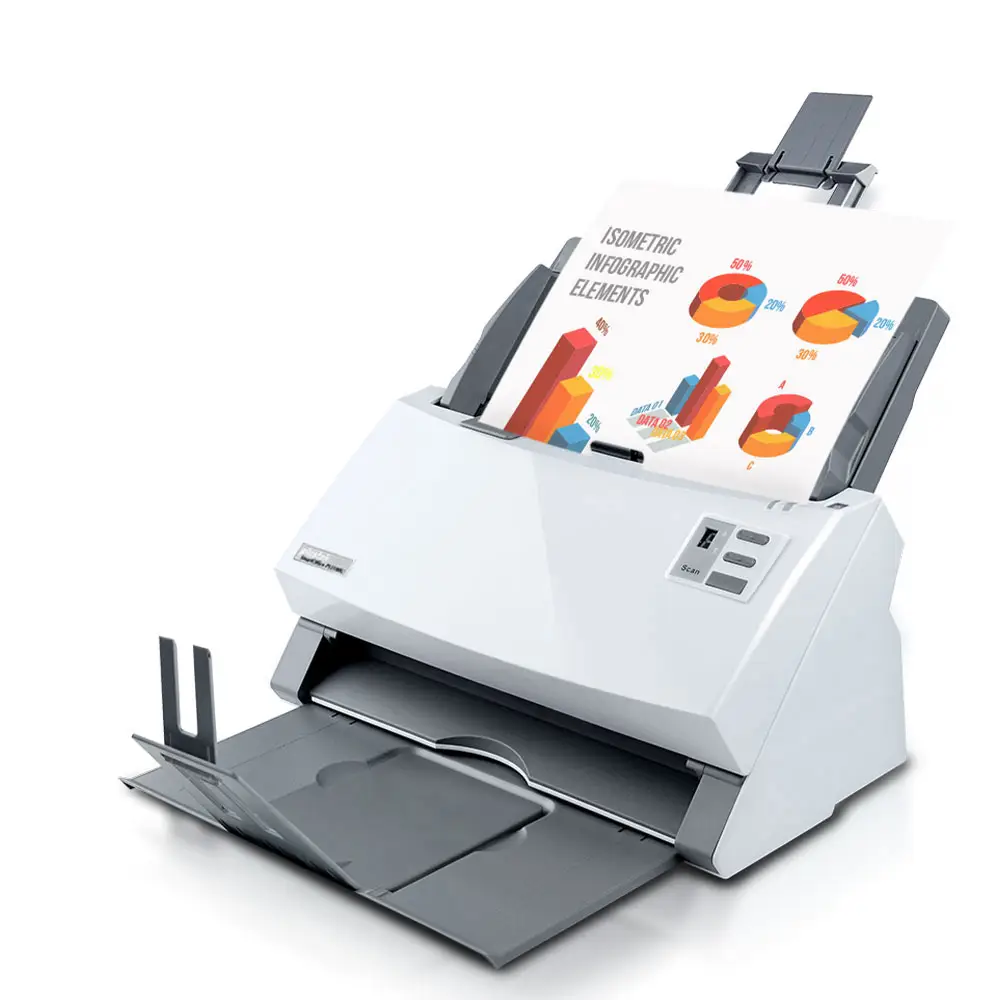

SmartOffice PS3180U

  • Scan speed up to 80ppm/160ipm in grayscale mode
  • 100 page ADF capacity and a generous daily duty cycle up to 8000 pages
  • Built-in ultrasonic misfeed detection
  • TWAIN, ISIS and WIA drivers

The Plustek SmartOffice PS3180U is an 80-page per minute, duplex color document scanner that is not only fast, but also reliable and cost effective. The automatic refinement of images and ultrasonic mis-feed detection ensures all of your important documents are accurately scanned.
The PS3180U has one of the lowest Total Cost of Ownerships (TCO) of any high-speed document scanner. TCO is 40% less than other scanners in the 60-80 ppm segment.

Automatic image refinement

Automatic page size detection, black border removal, rotation and straightening ensure high quality images and the ability to scan mixed batches of documents.

Single Touch Scanning

Set 9 different scanning jobs and send to printer, Email, Local Folder, Network Folder or FTP and save in standard imaging formats, including JPEG, TIFF, and searchable PDF.


Type Automatic Document Feeder (ADF)
Image Sensor CIS Sensor x 2 (Duplex)
Optical Resolution 600 dpi
Hardware Resolution 600 x 600 dpi
ADF Capacity 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
2. 30 sheets (Business Cards)
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF ) 80 ppm/ 160 ipm (Grayscale/B&W mode, 300 dpi, A4 Portrait)
45 ppm/ 90 ipm (Color mode, 200 dpi, A4 Portrait)
30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L) Max: 216 x 5080 mm (8.5” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Scan: Kartu Nama, A5, Kuarto, Letter, A4, Folio (F4), Legal
Acceptable Paper Sizes (W x L) Max: 244 x 5080 mm (9.6” x 200”)
Min: 50.8 x 50.8 mm (2” x 2”)
Acceptable Paper Weight (Thickness) 40 to 220 g/㎡ (10 to 58 Lbs)
Daily Duty Scan ( Sheets ) 8,000
Roller Lifetime (Scans) 300,000
Pad Lifetime (Scans) 50,000
Action Button 4 Buttons: Up, Down, Scan, Standby
9 function keys are all customizable.
Power Supply 24 Vdc/ 1.25 A
Interface USB 2.0 x 1, USB 2.0 (Host) x 1
Net Weight 2.7 Kgs (5.95 Lbs)
Dimensions (W x D x H) 318.7 x 230.7 x 228.3 mm (12.55″ x 9.08″ x 8.99″)
Protocol ISIS & TWAIN Compliant
OS Windows XP, Vista, 7, 8, 10
Hardware Requirements Pentium IV 2.0 GHz processor (Pentium IV 3.0 GHz processor recommended)
CD-ROM Driver
One available USB Port (USB 2.0 recommended)
1GB RAM or higher recommended
800 MB free HDD space (1 GB or larger recommended)


Leaflet Produk:

Driver Scanner :

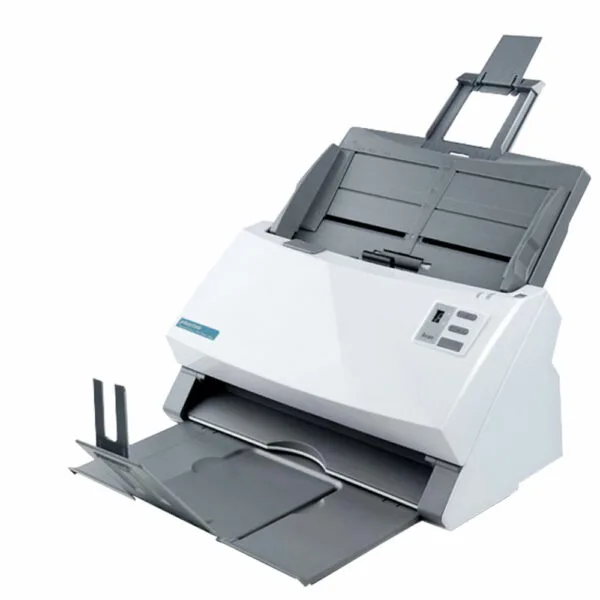

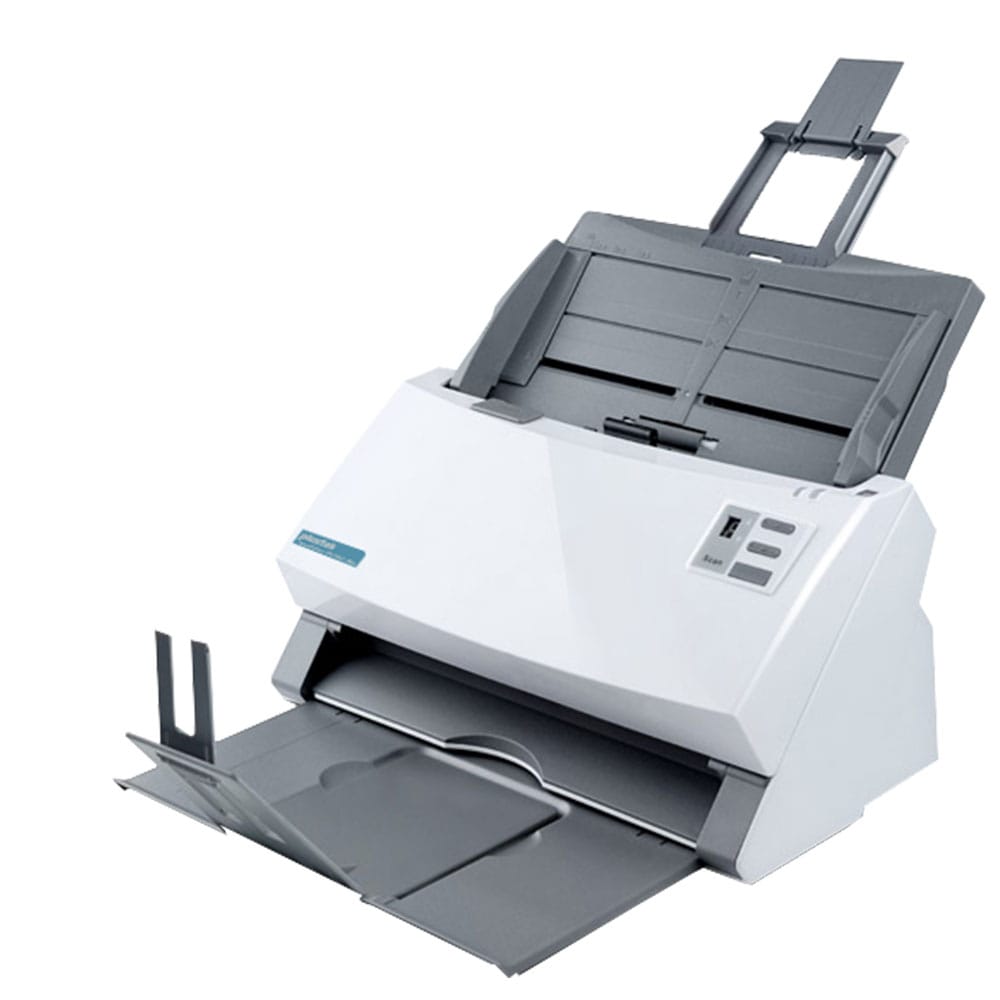

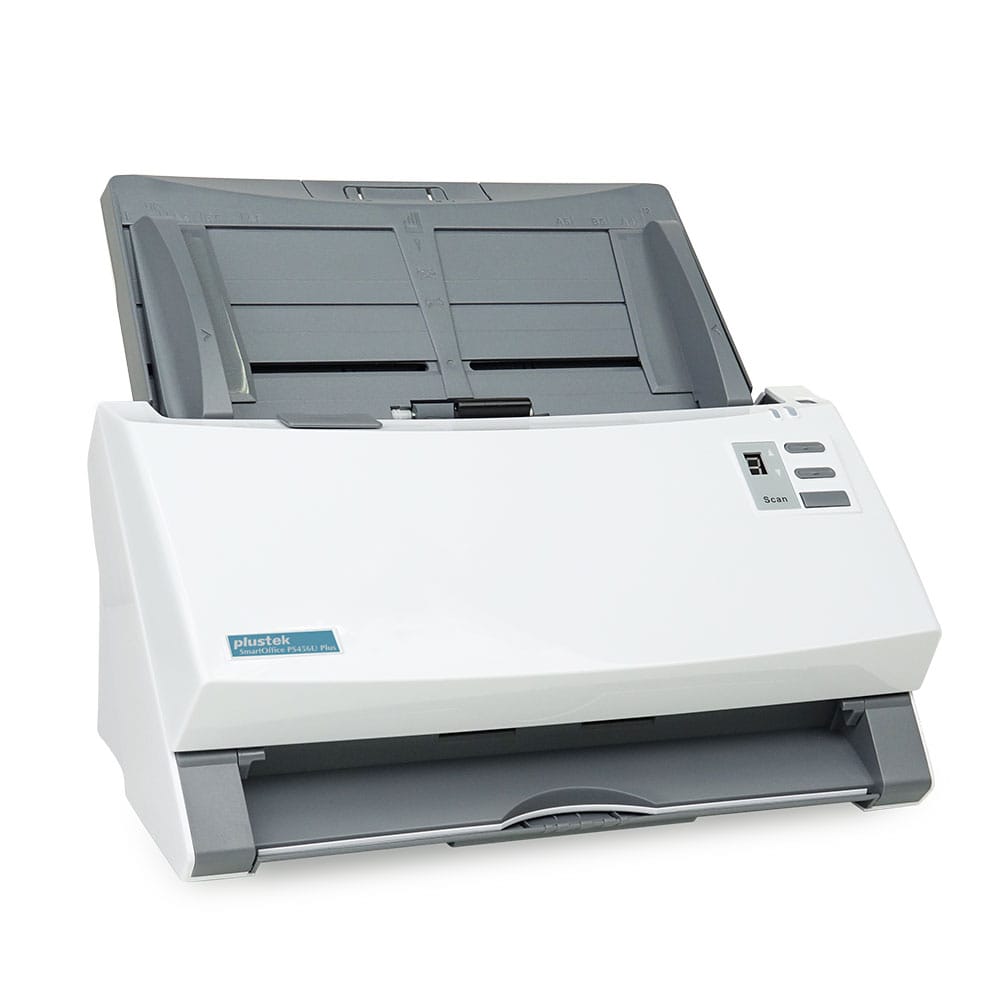

 SmartOffice PS456U Plus Driver for Windows 7-10
Size : 124 mB (updated 19 Sept 2019)
SmartOffice PS456U Plus Driver for Mac os 10.12-10.15
Size : 268 mB (updated 18 Dec 2019)
