SmartOffice SN8016U

  • 80 PPM / 160 IPM duplex scan in 300 dpi grayscale mode
  • A3 Automatic Document Feeder
  • Built-in Misfeed ultrasonic detection
  • Multiple images output and auto-detect the scan mode of documents

High Speed, Reliable, Cost Effective

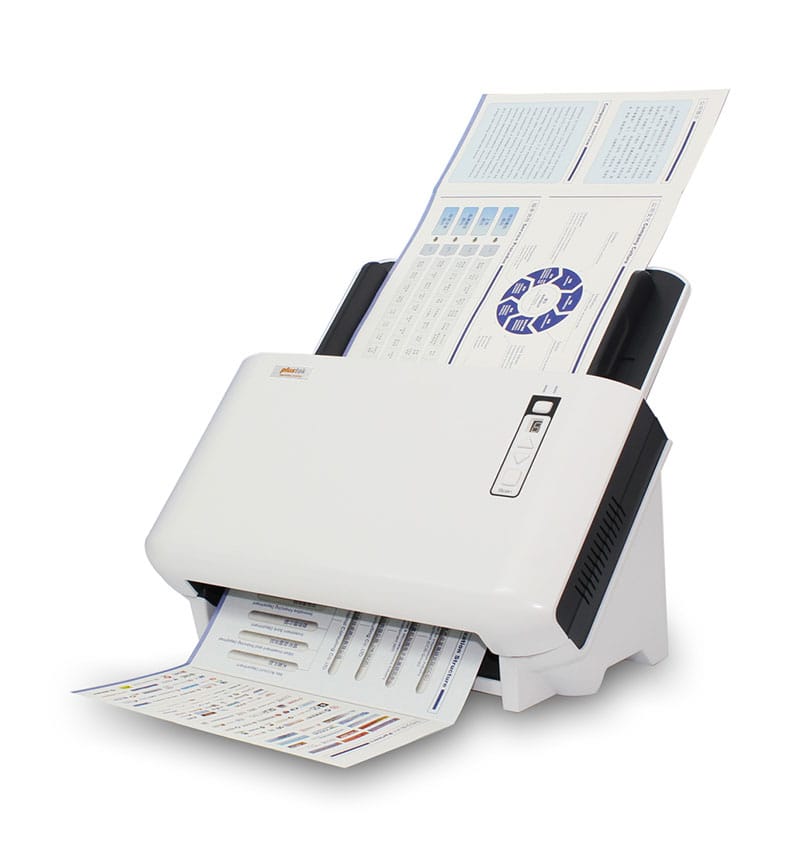

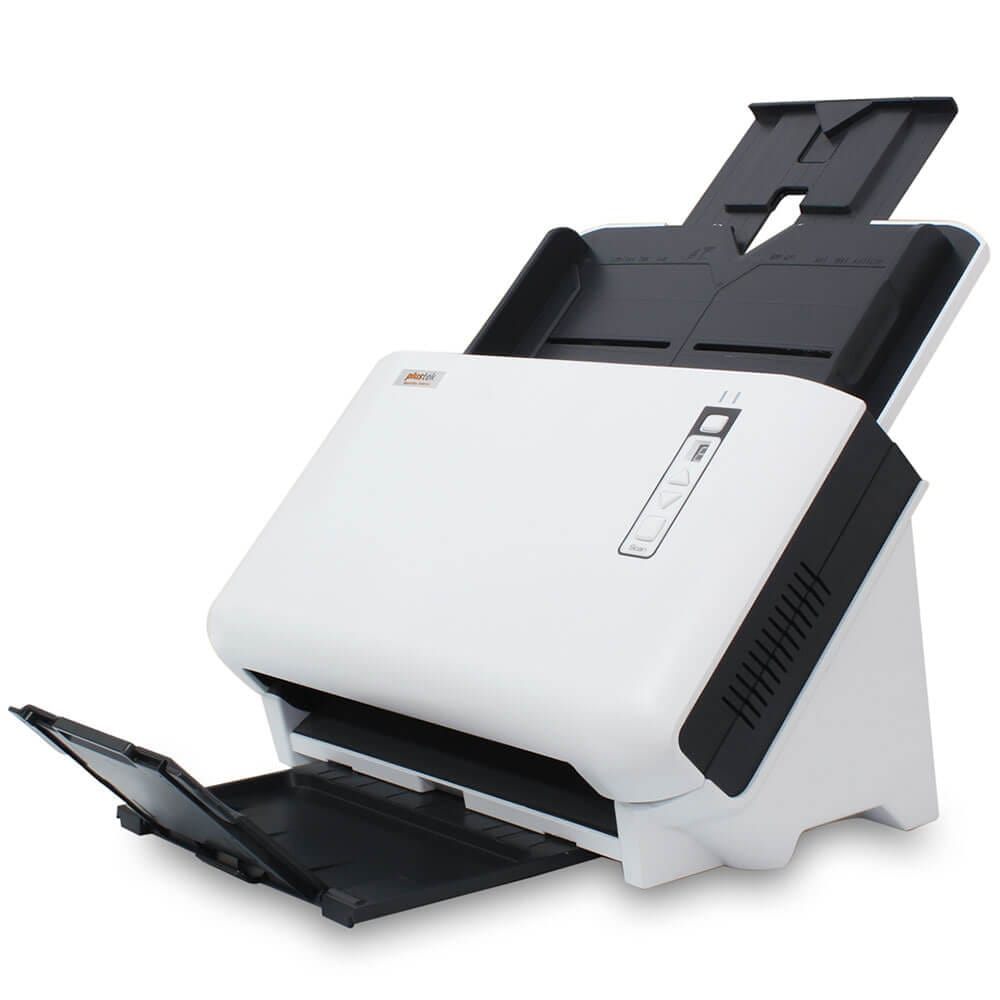

The Plustek SmartOffice SN8016U is a departmental class A3 sized document scanner that interfaces to your PC using either the built in USB interface or built in network interface. The dual interface coupled with industry standard TWAIN drivers and DocAction single touch scanning enable this scanner to be used for almost any document imaging application or scanning environment.

Performance - Fast, A3 size availble, high daily duty cycle

Featuring a scan speed of 80 pages per minute, 160 images per minute in duplex mode,a 100 sheet feeder and a daily duty cycle of 8,000 pages per day, the SmartOffice SC8016U is designed for applications requiring frequent scanning of large document batches.

Add Your Heading Text Here

Single-touch customizable button automates up to 9 frequent scanning jobs (e.g., Scan to PDF, Scan to file, email, network share, copy, etc.)

Automatically wake-up function

The innovative automatic wake-up function turns the scanner on as soon as documents are placed in the feeder.

Flexibility - USB or Network Attached

The dual interfaces enable the SmartOffice SN8016U to be either directly attached to a PC or connected to your local network. When the network interface is used, the scanner can be shared with all of the PCs on the network. This is great for workgroups and departments that do not have the scanning workload to justify purchasing a scanner for every workgroup or department member.

Specification

Type Automatic Document Feeder (ADF)
Image Sensor CIS x 2
Light LED
Optical Resolution 600 dpi
Hardware Resolution 600 x 600 dpi
Scan Modes Color: Input 48-bit, Output 24-bit
Grayscale: Input 16-bit, Output 8-bit
Black & White: 1-bit
ADF Capacity 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 10 mm (0.4”)
2. 50 sheets (A3, 70 g/㎡ or 18 Lbs)
3. 20 sheets (Business Cards)
4. Plastic Card (Portrait Loading), Max. thickness under 1 mm, embossed cards can be scanned.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF ) 80 ppm/ 160 ipm (Grayscale/ B&W mode, 300 dpi, A4 Landscape)
55 ppm/ 110 ipm (Color mode, 200 dpi, A4 Landscape)
36 ppm/ 72 ipm (Color mode, 300 dpi, A4 Landscape)
Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L) Max: 297 x 5080 mm (11.69” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Scan: Kartu Nama, A5, Kuarto, Letter, A4, Folio (F4), Legal, A3
Acceptable Paper Sizes (W x L) Max: 305 x 5080 mm (12” x 200”)
Min: 50.8 x 63.5 mm (2” x 2.5”)
Acceptable Paper Weight (Thickness) 40 to 220 g/㎡ (10 to 58 Lbs)
Daily Duty Scan ( Sheets ) 8,000
Roller Lifetime (Scans) 300,000
Pad Lifetime (Scans) 100,000
Action Button 4 Buttons: Up, Down, Scan, Standby
9 function keys: all customizable.
Power Supply 24 Vdc/ 2.7 A
Interface USB 2.0 / RJ45 LAN
Net Weight 6.57 Kgs (14.48 Lbs)
Dimensions (W x D x H) 436 x 262 x 266 mm (17.16″ x 10.31″ x 10.47″)
Protocol TWAIN Compliant
OS Windows XP / Vista / 7 / 8 / 10 / 11
Hardware Requirements Pentium Core I7, 3.2 GHz processor
4 GB RAM minimum (Recommended: 8 GB or more)
6 GB of hard-disk space for program installation
Display dimensions of 1024×768 or greater

Downloads

Driver Scanner :

Driver SmartOffice SN8016U for Windows XP-11
Size : 147.7 mB (updated 6 January 2022)
User Guide :
User Guide SmartOffice SN8016U
Size : 3.45 mB (updated 25 March 2022)
Leaflet :
Leaflet SmartOffice SN8016U
Size : 0.51 mB (updated 12 May 2022)
