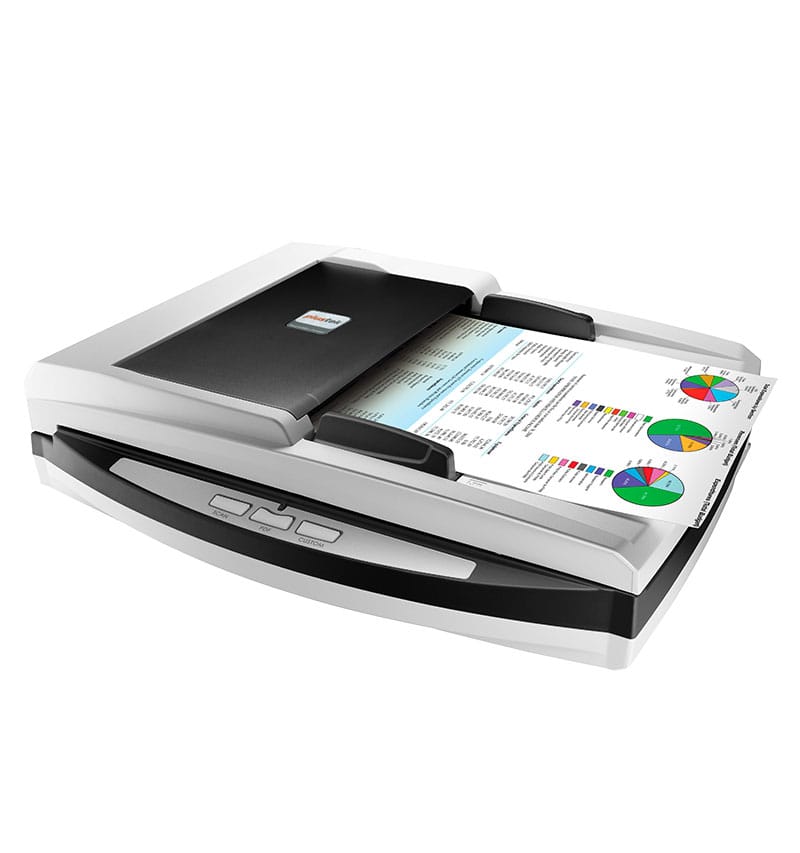

SmartOffice PL3060

  • 32 ppm ADF speed (All color, 200dpi, A4)
  • Scan to any PC on your network
  • Automatic document detection for ADF/Flatbed
  • Duplex Scanning in Color, Grayscale or B/W
SKU: SO-PL3060 Category: Tags: , ,

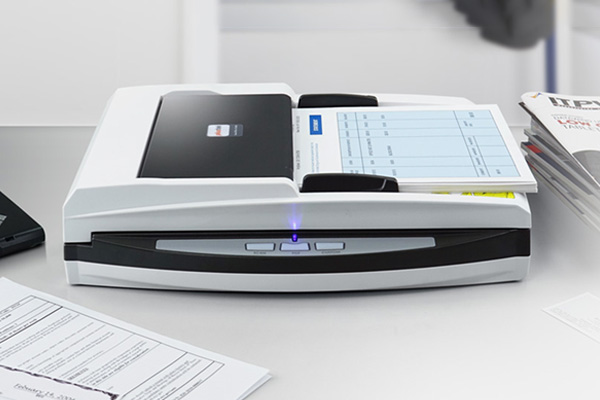

SmartOffice PL3060: The essential first step in document digitization.

Effortlessly convert paper files into organized digital assets with high-speed scanning and seamless cloud integration. Start building a smarter, paperless workflow today.

The combination of paperless and efficiency

Unlock peak efficiency with seamless digital workflows that save time, space, and resources.

Scan Once. Send Anywhere

Scanning job can configure to a Searchable PDF, Save to folder, Scan to Email, Scan to application and scan to Printer.

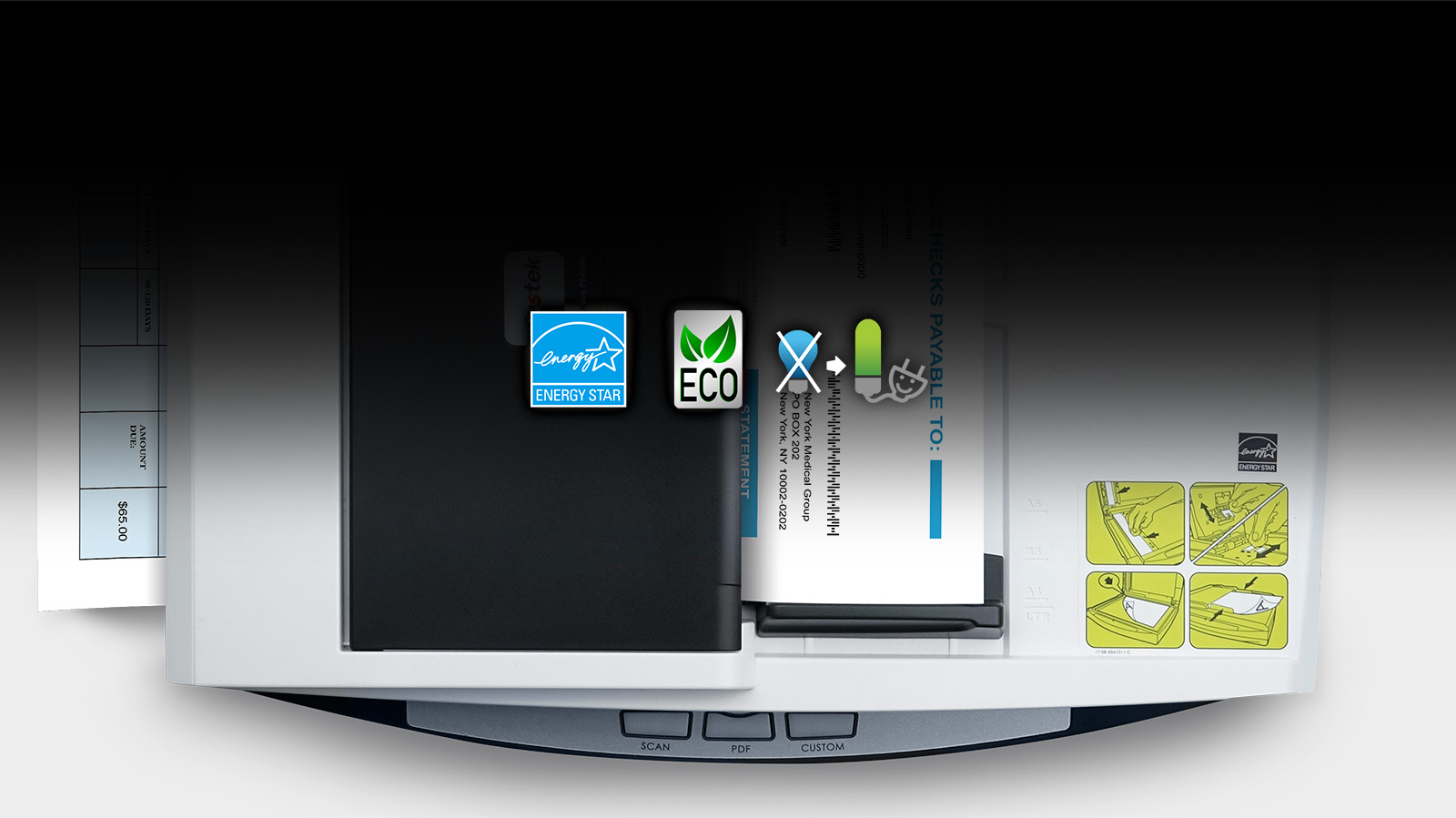

Environmentally Responsible and Energy-Saving

The ENERGY STAR certification of the SmartOffice PL3060 guarantees environmentally responsible design features, such as low powered LED illumination technology and power-saving functions.

Specification Hardware

Scanner Type Scanner ADF + Flatbed
Hardware Resolution Flatbed: 1200 x 1200 dpi
ADF: 600 x 600 dpi
Scan Modes Color: Input 48-bit, Output 24-bit
Grayscale: Input 16-bit, Output 8-bit
Black & White: 1-bit
ADF Capacity 1. 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 5mm (0.2″).
2. 20 sheets (Business Card)
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Area (W x L) Flatbed:
Max. 216 x 297 mm (8.5” x 11.69”)
Min. 12.7 x 12.7 mm (0.5” x 0.5”)
Scan: Kartu Nama, A5, Kuarto, Letter, A4
ADF:
Max. 216 x 356 mm (8.5” x 14”)
Min. 12.7 x 12.7 mm (0.5” x 0.5”)
Scan: Kartu Nama, A5, Kuarto, Letter, A4, Folio (F4), Legal
Acceptable Paper Sizes (W x L) Flatbed:
Max. 216 x 297 mm (8.5” x 11.69”)
Min. 12.7 x 12.7 mm (0.5” x 0.5”)
ADF:
Max. 216 x 356 mm (8.5” x 14”)
Min. 12.7 x 12.7 mm (0.5” x 0.5”)
Scanning Speed ( ADF ) 32 ppm/ 64 ipm (Color mode, 200 dpi, A4 Portrait)
32 ppm/ 64 ipm (Grayscale mode, 200 dpi, A4 Portrait)
32 ppm/ 64 ipm (B&W mode, 200 dpi, A4 Portr8it)
Note: Results may vary depending upon your scanning application, computer processor and system memory.
Acceptable Paper Weight (Thickness) 50 to 120 g/㎡ (14 to 32 Lbs)
Daily Duty Scan ( Sheets ) 3.000
Roller Lifetime (Scans) 100,000
Pad Lifetime (Scans) 25,000

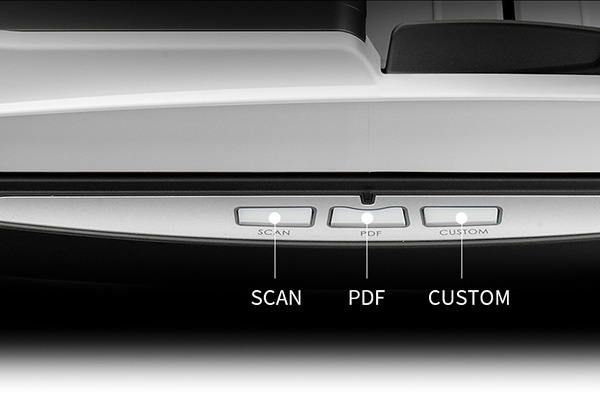

Action Button Scan, PDF, Custom
Power Supply 24 Vdc/ 0.75 A
Interface USB 2.0
Net Weight 3.98 Kgs (8.77 Lbs)
Dimensions (W x D x H) 418 x 326 x 101 mm (16.45″ x 12.83″ x 4″)
Protocol TWAIN Compliant
Operating System Windows XP / Vista / 7 / 8 / 10 / 11
Hardware Requirements 2.0 GHz CPU processor or higher
Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher
4 GB RAM minimum (Recommended: 8 GB or more)
6 GB of hard-disk space for program installation
Display dimensions of 1024×768 or greater
Bundled Software Plustek DocAction
Plustek DocTWAIN
Built-in OCR Plustek OCR
(Powered by ABBYY® FineReader®)

Product Weight Spesification

Net Weight 3,78 Kg
Bruto Weight  7 Kg
Product Dimension 41,8 x 32,6 x 10,1 cm
Box Dimensions 60 x 55 x 30 cm





Download

Driver Scanner :
Manual & Guide :
