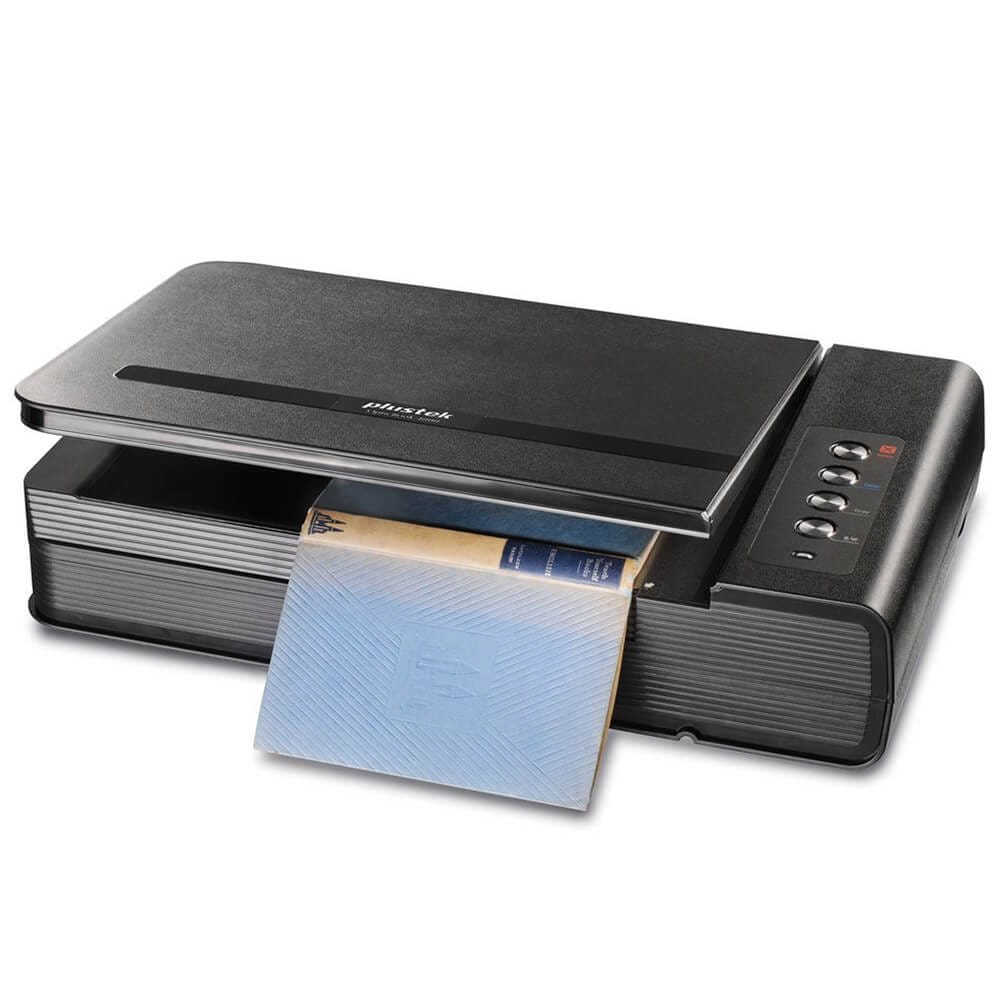

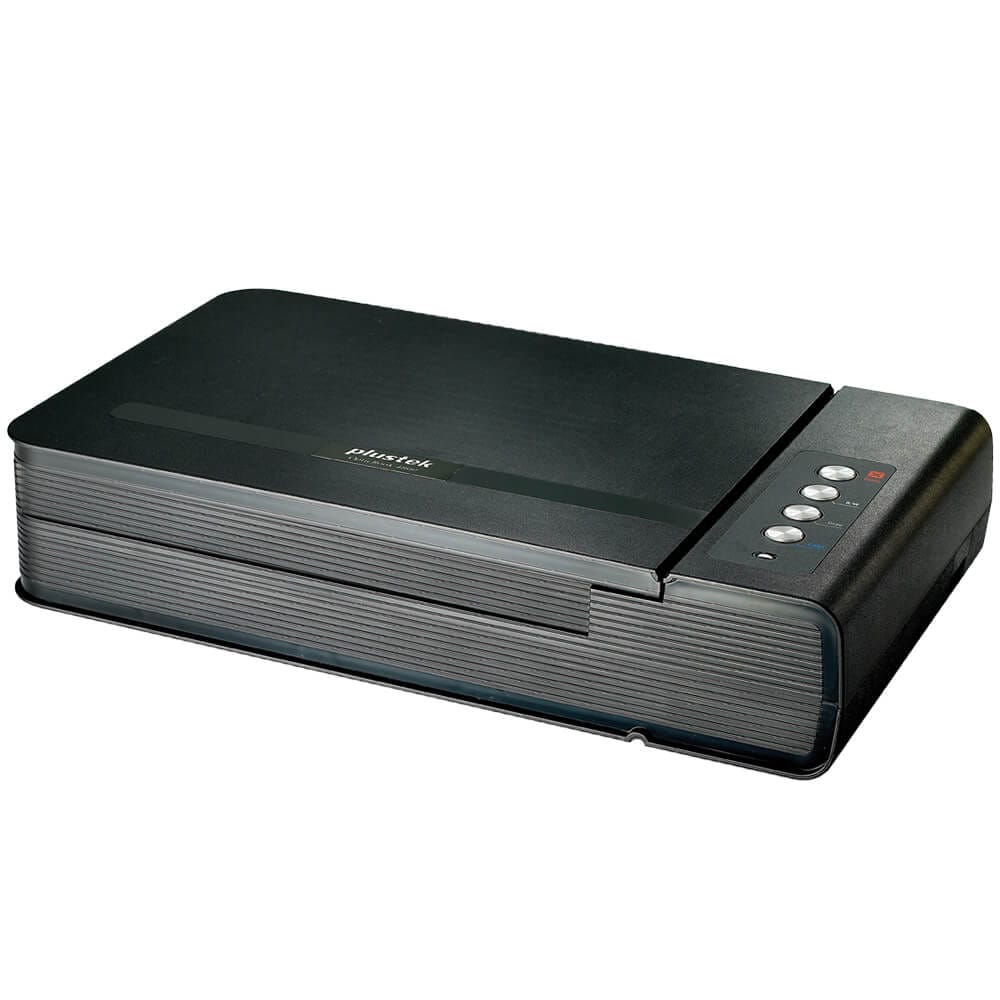

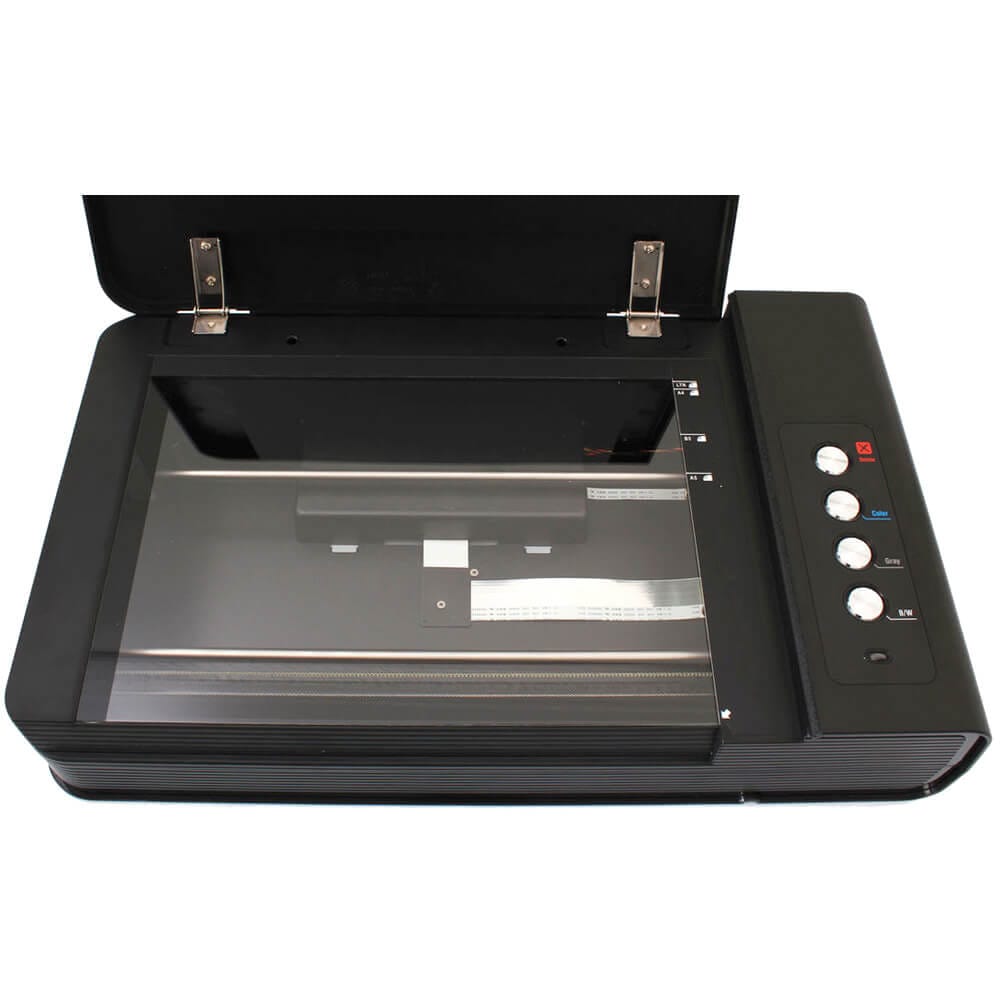

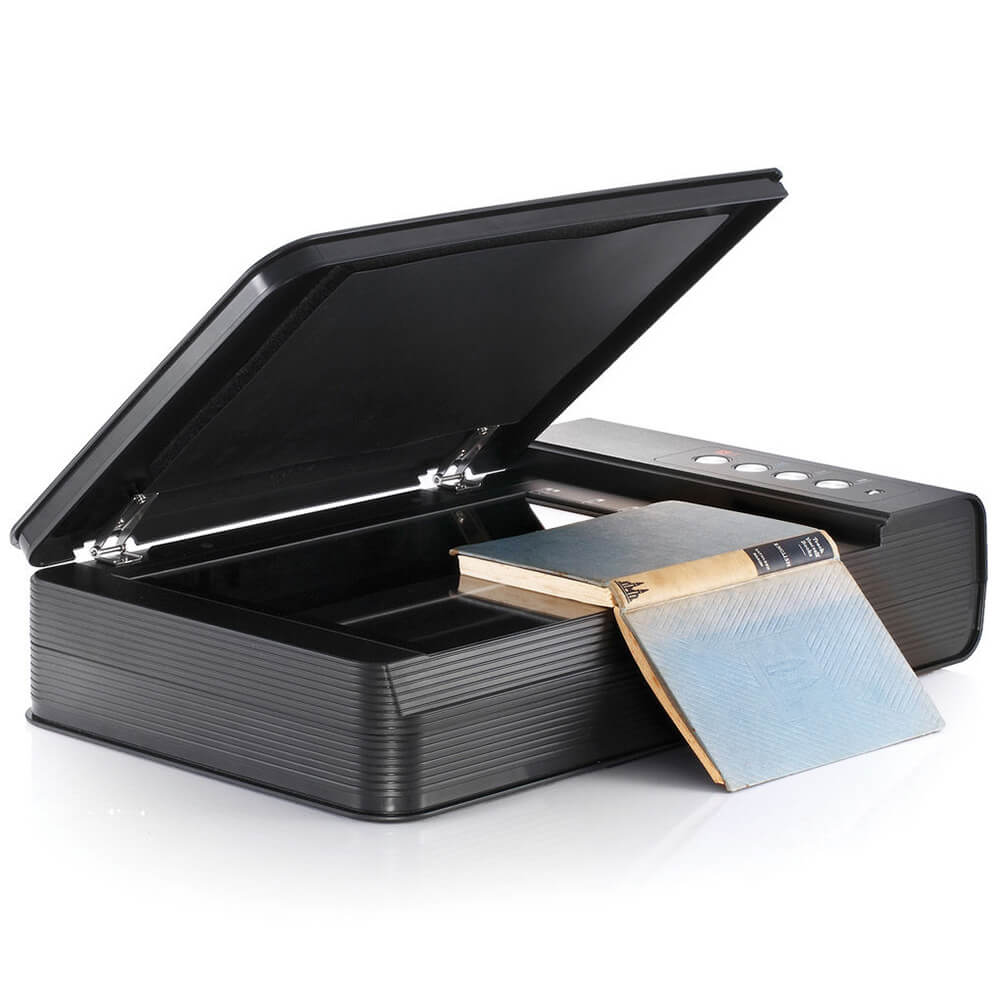

OpticBook 4800

  •  3.6 scanning speed to create work efficiency as well as image quality
  • Green design: LED light source, power saving and non-toxic material using
  • Easily create PDF, HTML, Word and Excel files

The Plustek OpticBook 4800 helps you create, scan and store thick books with ease!

The Plustek OpticBook 4800 is a fast, cost effective, simple, innovative solution for scanning books, magazines and bound materials.OpticBook 4800 includes everything you need to create searchable PDFs from your books, magazines and bound materials.

2mm Book Edge Design

An integral part of Plustek’s SEE (Shadow Elimination Element) Technology, the unique book edge design (2mm) of OpticBook 4800 eliminates the book spine shadow and text distortion of traditional books while copying and scanning. The intelligent design avoids the need for a large, expensive overhead scanner or complicated image-editing software.

Fast Scanning

Ergonomic design for fast and efficient scanning. Scan speed only 3.6 sec. for an A4-size color, grayscale, B/W scan at 300 dpi.

Searchable PDF

Searchable PDFs provide higher security, reliability and easiness to transit and exchange documents while preserving the look and integrity of the original documents, including fonts, graphics, images and layouts. It can convert images into text that can be copied directly and be convenient to search by keywords to quickly find relevant paragraphs in entire articles and books.

Specification

Type Flatbed
Image Sensor CCD
Light Source LED
Optical Resolution 1200 dpi
Hardware Resolution 1200 dpi x 2400 dpi
Scan Modes Color: 48-bit input, 24-bit output
Grayscale: 16-bit input, 8-bit output
B/W: 1-bit
Book Edge
2 mm
Scanning Speed 3.6 sec (Color/ Grayscale/ B&W mode, 300dpi, A4)
Scanning Area (W x L) 216 x 297 mm (8.5″ x 11.69″, A4-Letter Size)
Scan: Kartu Nama, A5, Kuarto, Letter & A4
Daily Duty Scan ( Sheets ) 2.500
Action Button Delete, B/W, Grayscale, Color
Power Supply 24 Vdc / 0.75 A
Power Consumption < 18 W (operation), < 5 W (idle)
Interface USB 2.0 Type B
Net Weight 3.45 Kgs (7.6 Lbs)
Dimensions (W x D x H) 491 x 291 x 102 mm (19.3″ x 11.4″ x 4″)
Protocol TWAIN compliant
OS Windows XP / Vista / 7 / 8 / 10 / 11
macOS 10.12.x/ 10.13.x/ 10.14.x/ 10.15.x/ 11.x/ 12.x/ 13.x/ 14.x/ 15.x/ 26.x
Hardware Requirements

Windows and Mac

Windows and Mac

2.0 GHz CPU processor or higher[1][2][3]
[1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher

[2]Support Mac INTEL and M1 based processor

[3]Compatibility is not available with PowerPC

4 GB RAM minimum (Recommended: 8 GB or more)

6 GB of hard-disk space for program installation

Display dimensions of 1024 x 768 or greater
Bundled Software Plustek Book Pavilion
Plustek DocTWAIN
Plustek Mac Pavilion

Plustek ICA

Other Function
EPUB File Output Support
Built-in OCR Plustek OCR (For Windows & Mac)

(Powered by ABBYY® FineReader®)
