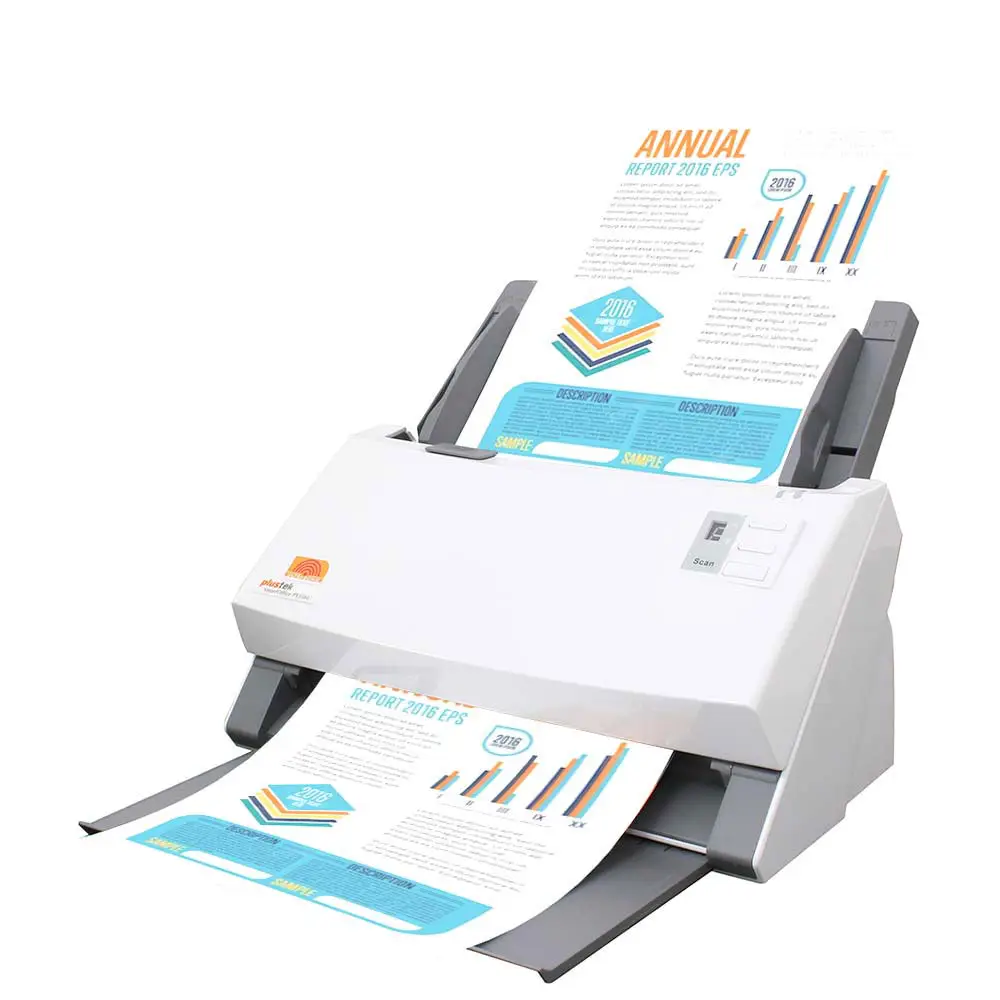

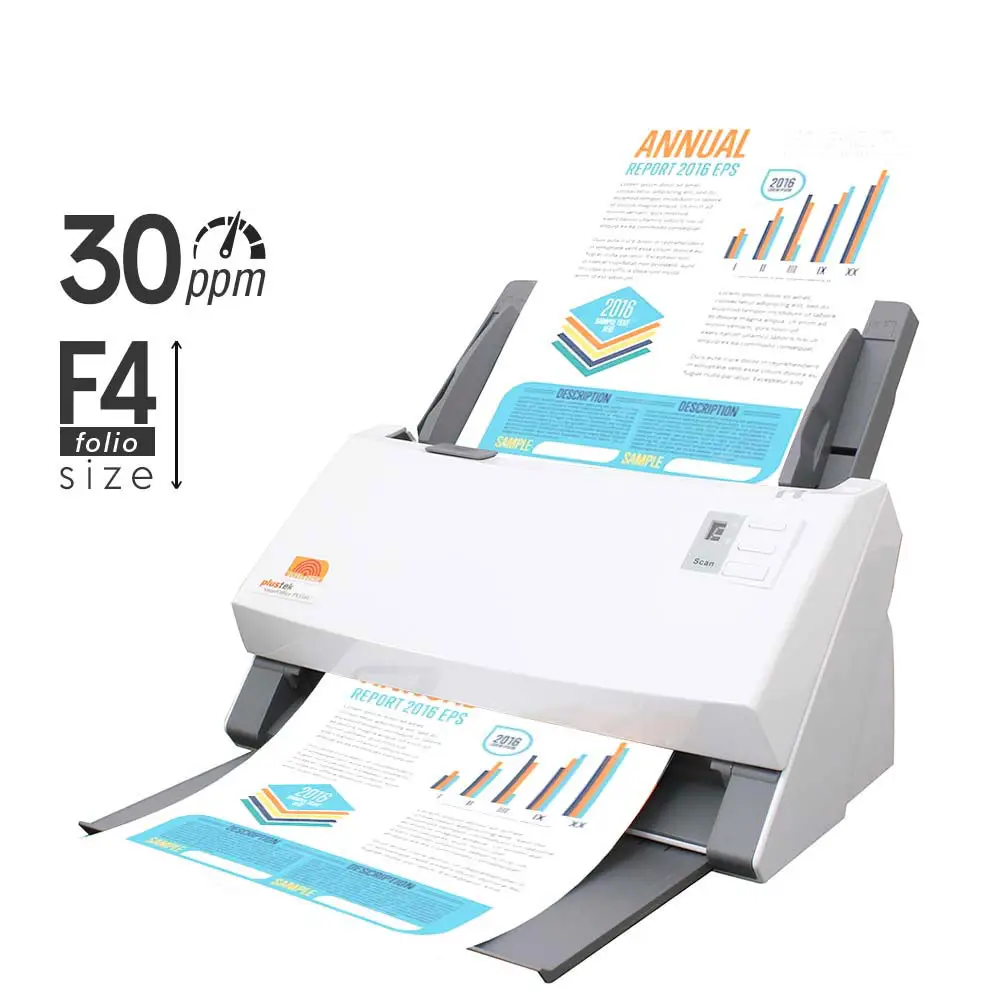

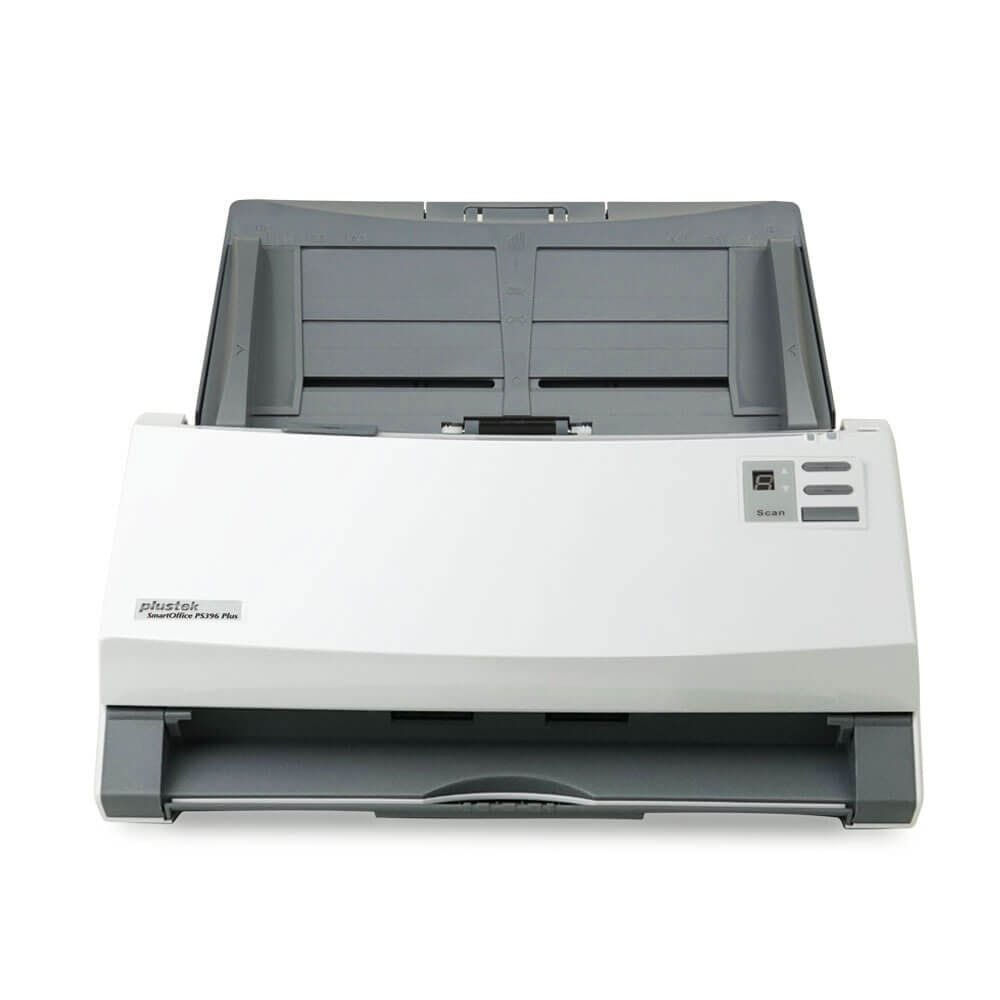

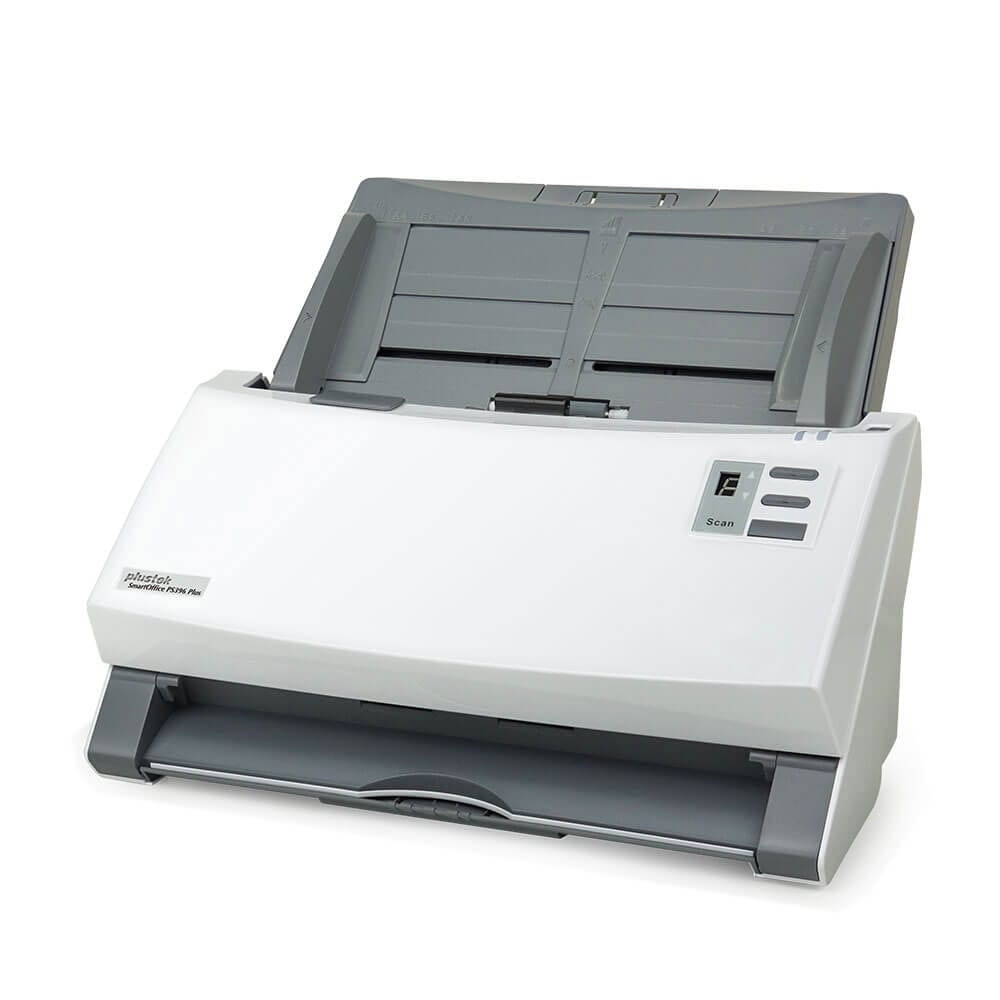

SmartOffice PS396 Plus

  • 30 PPM / 60 IPM duplex scan in 200 dpi color mode
  • Multiple images output and auto-detect the scan mode of documents

Description

The Plustek SmartOffice PS396 Plus is a 30 page per minute, duplex color document scanner that is not only fast, it’s reliable and cost effective. Robust paper handling, advanced image processing and a high daily duty cycle all add up to the perfect departmental scanning solution for document management, content management and forms processing applications.

Exceptional Document Handling

The SmartOffice PS396 Plus features one of the most advanced document feeding and separation system in the industry. This system allows the SmartOffice PS396 Plus to scan mixed batches of varying paper sizes and weights. No more wasted time sorting documents based on their size or thickness. Plastic and rigid cards such as ID cards, Drivers Licenses, Membership Cards, Insurance Cards and even long documents up to 200” are scanned without additional adjustments or additional set up.

Exceptional Productivity

Create searchable PDFs at the touch of a button. Single Touch scanning allows you to define 9 different scanning functions that can all be accessed by simply pressing a button. In addition to Searchable PDF, you can transform your paper documents into editable Microsoft Office document formats or common image formats such as JPG and TIFF. Industry standard TWAIN and WIA drivers ensure compatibility with thousands of image enabled applications.

Exceptional Reliability

The 100 sheet feed tray along with a daily duty cycle of 4000 pages means that the SmartOffice PS396 Plus is a scanner that is designed to scan documents every day, all day long.

Environmentally Responsible and Energy-Saving

The SmartOffice PS396 Plus is environmentally responsible and easy to use at the same time thanks to its ENERY STAR certification, low power LED illumination technology and power-saving function. The SmartOffice PS396 Plus also features auto wake up that enables users to simply place the paper in the scanner and wake up the scanner from sleep / stand-by mode.

Features The SmartOffice PS396 Plus has following features:

● Auto Threshold

Automatically thresholds the current image into a binary black and white image

● Auto Rotate

Automatically rotates document based on the contents of the document.

● Auto Crop & Deskew

Automatically straightens and crops image to the documents actual size.

● Auto Mode

Automatically detects document color and scans document in color, grayscale or black & white mode.

● Multi-Image Output

Scans and saves documents in 2 or 3 modes at same time

● Color Dropout

Removes red, green or blue color when scanning forms

● Blank Page Removal

Automatically removes blank pages without manual editing.

Specification

TypeAutomatic Document Feeder (ADF)
Image SensorCIS x 2
Optical Resolution600 dpi
Hardware Resolution600 x 600 dpi
ADF Capacity1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
2. 30 sheets (Business Cards)
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF )30 ppm/ 60 ipm (Grayscale mode, 200 dpi, A4 Portrait)
30 ppm/ 60 ipm (B&W mode, 200 dpi, A4 Portrait)
30 ppm/ 60 ipm (Color, 200 dpi, A4 Portrait)
Note : Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L)Max: 216 x 5080 mm (8.5” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Scan: Kartu Nama, A5, Quarto, Letter, A4, Folio (F4), Legal
Acceptable Paper Sizes (W x L)Max: 244 x 5080 mm (9.6” x 200”)
Min: 50.8 x 50.8 mm (2” x 2”)
Acceptable Paper Weight (Thickness)40 to 220 g/㎡ (10 to 58 Lbs)
Daily Duty Scan ( Sheets )4,000
Roller Lifetime (Scans)300,000
Pad Lifetime (Scans)100,000
Action Button4 Buttons: Up, Down, Scan, Standby
9 Function Keys: Scan, PDF, OCR, File, E-Mail, Copy, BCR, FTP. All Customizable.
Power Supply24 Vdc/ 1.25 A
InterfaceUSB 2.0×1
Net Weight2.7 Kgs (5.95 Lbs)
Dimensions (W x D x H)318.7 x 230.7 x 228.3 mm (12.55″ x 9.08″ x 8.99″)
ProtocolTWAIN Compliant
OSWindows XP, Vista, 7, 8, 10
Hardware RequirementsPentium IV 2.4 GHz processor (Pentium IV 3.0 GHz processor recommended)
DVD-ROM Driver
One available USB Port (USB 2.0 recommended)
1GB RAM (2GB or higher recommended)
2GB free HDD space (3GB or larger recommended)

Downloads

Leaflet :
Icons-PDF SmartOffice PS396U Plus Leaflet
Size : 1 mB (updated 26 February 2019)
