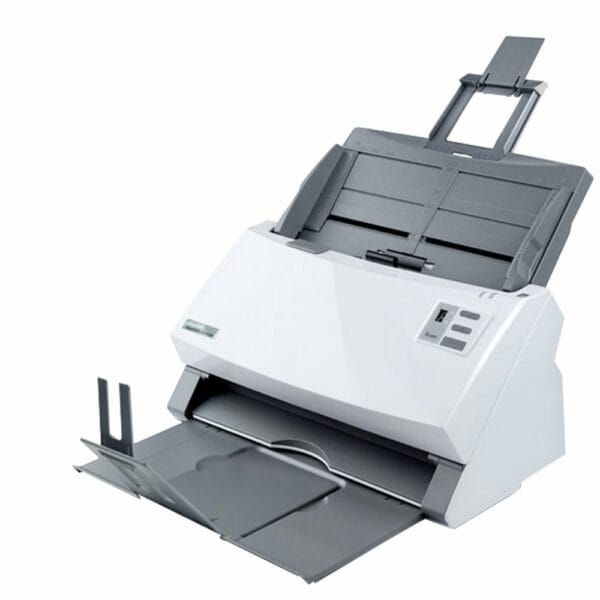

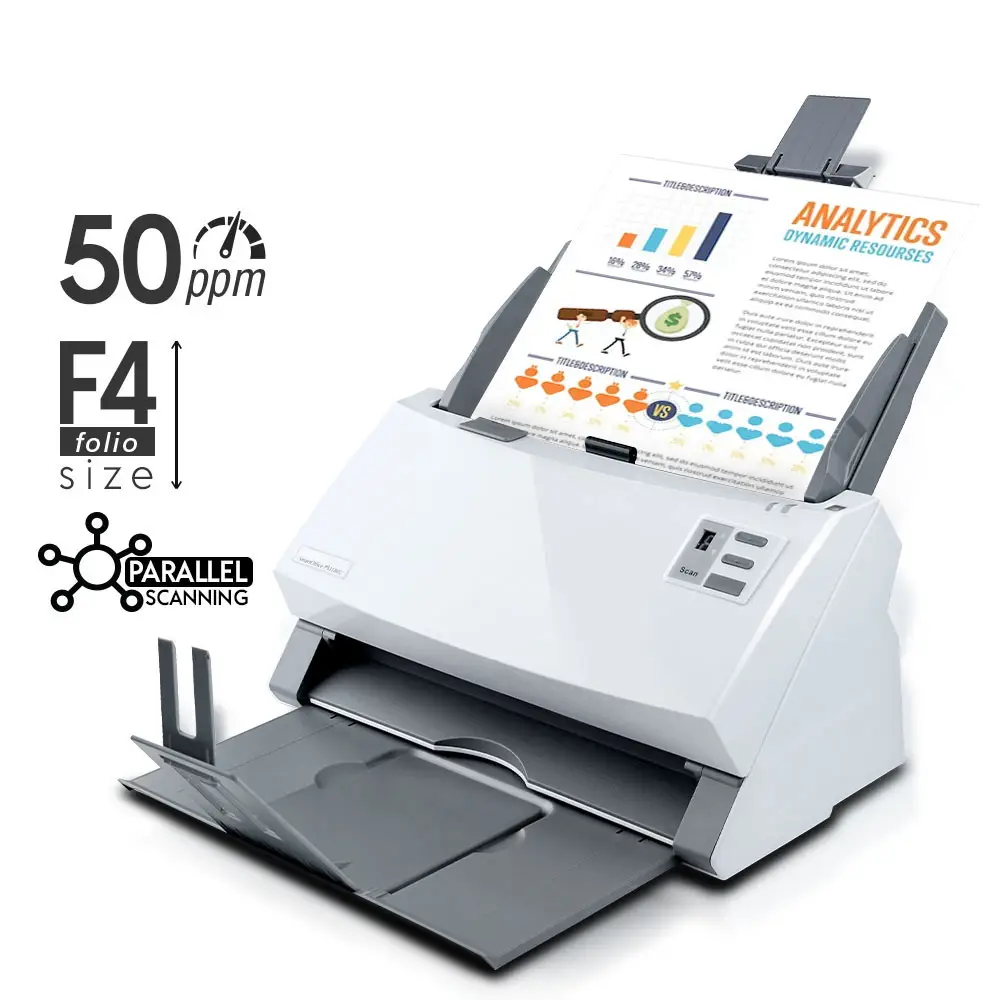

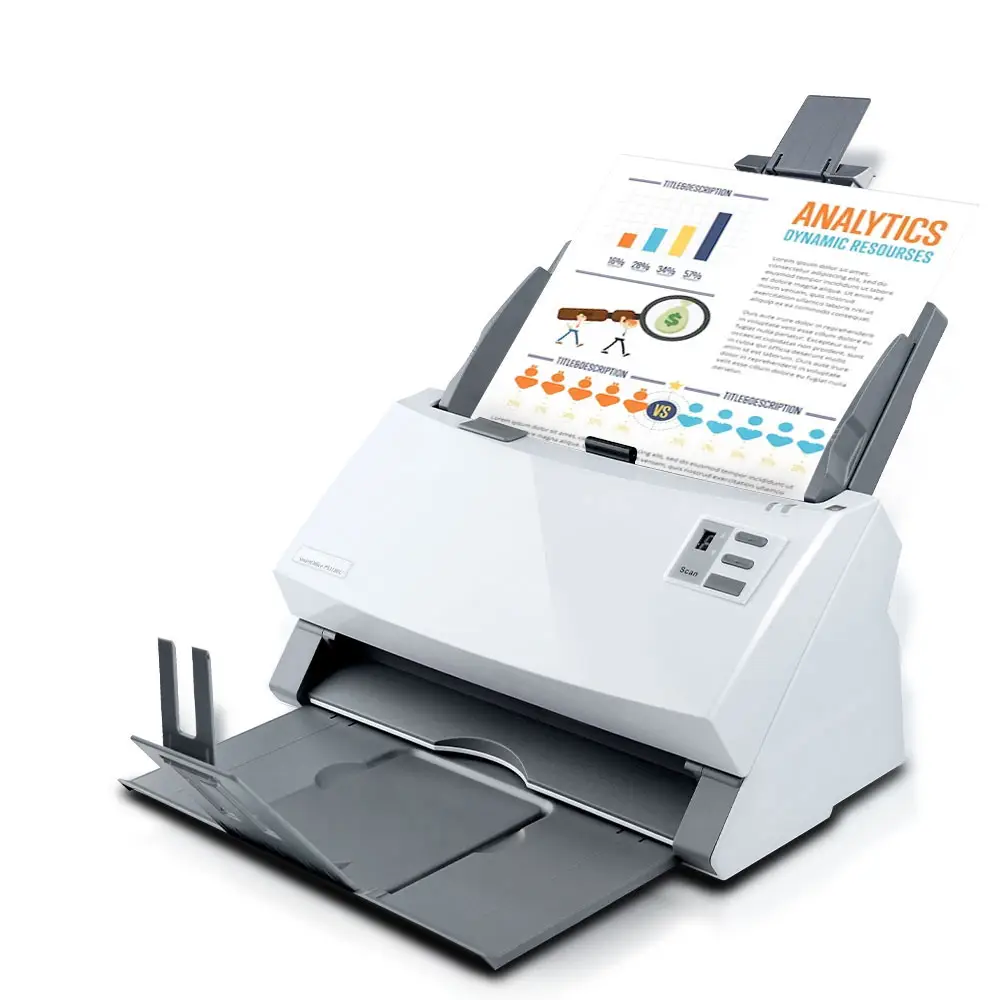

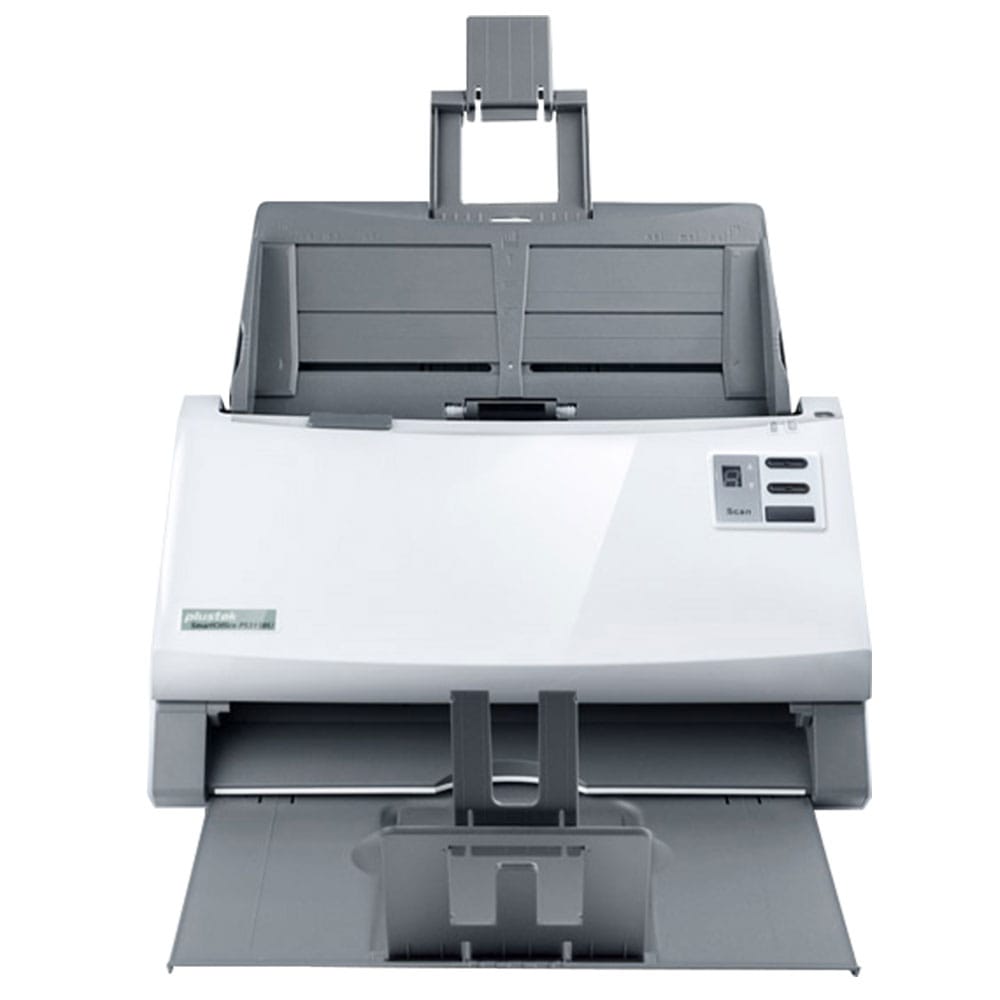

SmartOffice PS3150U

  • 45 PPM / 90 IPM duplex scan in 200 dpi color mode
  • Built-in Ultrasonic function for double feed detection
  • Multiple images output and auto-detect the scan mode of documents

Description

The SmartOffice PS3150U is a departmental-class document scanner capable of simplex and duplex scanning. With a built-in auto-document feeder, it is extremely efficient in performing duplex scans of a stack of double-sided documents. In simplex scan mode, the SmartOffice PS3150U can scan up to 50 pages per minute, and in duplex mode, 100 images per minute. The auto-document feeder, meanwhile, has a cavernous 100-sheet capacity. All these features make the SmartOffice PS3150U scanner an essential part of every digital office.

Robust Paper Handing

Combining fast document feeding with the advantage of robust paper handling, the SmartOffice PS3150U is an ideal choice for workgroups who have a demanding workload and limited budget. Plastic and other rigid cards such as ID cards, Drivers Licenses, Membership Cards and Insurance Cards as well as long documents up to 200” are scanned without additional adjustments or additional set up. The advanced image processing and a high daily duty cycle all add up to the perfect departmental scanning solution for document management, content management and forms processing applications. The SmartOffice PS3150U also features auto wake up that enables users simply to place paper in the scanner to wake the scanner up from sleep / stand-by mode.

Intelligent Misfeed Function

With the built-in ultrasonic multi-feed detection capability, the SmartOffice PS3150U scanner prevents multi-feeds by checking the thickness of documents and detecting overlapping pages. When a multi-feed is detected, the scan halts and a warning message is displayed. This feature is turned on by default so that it automatically improves the scanning experience and results. However, when scanning papers with labels, sticky notes, taped receipts or plastic cards, the ultrasonic function can be turned off to prevent false detection.

Exceptional Productivity

Operation of the SmartOffice PS3150U is simple with Plustek’s exclusive software application DocAction. Users need only to properly place the document on the scanner and press the “Scan” button. What’s best is that the scanned image can then be sent directly to your desired destination application.

Specification

TypeAutomatic Document Feeder (ADF)
Image SensorCISX2
Optical Resolution600 dpi
Hardware Resolution600 x 600 dpi
ADF Capacity1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
2. 30 sheets (Business Cards)
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF )
50 ppm / 100 ipm (Grayscale / Black and White, 200 dpi, A4)
45 ppm/ 90 ipm (Color mode, 200 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scan Area (L x W)Maximum: 216 x 5080 mm (8.5 “x 200”)
Minimum: 13.2 x 13.2 mm (0.52 “x 0.52”)
Scan: Kartu Nama, A5, Kuarto, Letter, A4, Folio (F4), Legal
Acceptable Paper Sizes (W x L)Maximum: 216 x 5080 mm (8.5 “x 200”)
Minimum: 50.8 x 50.8 mm (2 “x 2”)
Acceptable Paper Weight (Thickness)40 to 220 g/㎡ (10 to 58 Lbs)
Daily Duty Scan ( Sheets )6,000
Roller Lifetime (Scans)300,000
Pad Lifetime (Scans)100,000
Action Button4 Buttons: Up, Down, Scan, Standby
9 function keys are all customizable.
Power Supply24 Vdc/ 1.25 A
InterfaceUSB 2.0 x 1, USB 2.0 (Host) x 1
Net Weight2.7 Kgs (5.95 Lbs)
Dimensions (L x W x H)318.7 x 230.7 x 228.3 mm (12.55 “x 9.08” x 8.99 “)
ProtocolISIS & TWAIN Compliant
OSWindows XP, Vista, 7, 8, 10
Hardware Requirements2.4GHz Pentium IV Processor
One DVD-ROM drive One available USB 2.0 port
1GB RAM or higher recommended
800 MB free HDD space (1 GB or larger recommended)

Downloads

Product Leaflet:

Driver Scanner:
Icons Windows Driver SmartOffice PS3150U for Windows 7, 8, 10
Size : 141 mB (updated 19 Sept 2019)
Icons apple Driver SmartOffice PS3150U for Mac Os 10.12-10.10
Size : 261 mB (updated 5 Des 2019)
