SmartOffice PS30D

  • 30 ppm Duplex (Grayscale, 200dpi, A4)
  • 50 Sheets ADF Capacity
  • Business Cards to Legal Sized Documents Scanning Available
  • Small Footprint

Description

The PS30D scanner deliver speed, image quality, and great paper handling, along with easy integration and compatibility with document imaging applications. Designed to perform in today’s demanding working environments, the PS30D effortlessly handles mission-critical or routine daily scanning tasks, thanks to scanning speeds up to 30ppm in Grayscale (200 & 300dpi) and an impressive 25ppm in colour (200dpi).

Easy to perform scanning

The compact and modern PS30D fits easily onto any office desktop. Daily tasks can be performed with one-touch simplicity to boost users’ productivity, thanks to nine programmable job buttons and user friendly DocAction software. Numerous features such as Auto Color Detection, Auto Rotate for Text Orientation, Multi-image output, Remove Blank Pages, Remove Punch Holes, Remove Background, Denoise, Character Enhancement are included, so there’s no need to pre-sort your documents before scanning. Simply load and then let the PS30D do the work for you. An optical resolution of 600dpi, plus all the latest image processing features, ensures outstanding quality results every time.

Robust performance

The PS30D provides one-touch document imaging, perfect for the smaller organization. Capable of handling up to 3,000 scans a day, the PS30D gets through peak workloads effortlessly. A 50 sheet document feeder means large batches of documents can be scanned in one quick scan operation saving you more time.

Reliable scanning

The PS30D solutions from Plustek support workgroup with leading edge document imaging technology. A smooth paper path and Plustek’s Retard Roller Technology provide outstanding reliability across a diverse range of media types. You can handle anything from fragile documents to thick card and embossed media. It’s even possible to scan A3 documents in Folio mode: unique for a scanner of this type. Long paper scanning is also supported, with capability to scan documents up to 2 metres in length. The PS30D is over 40% more energy efficient than other similar scanners, and meets energy star.

Device Features

Auto Deskew, Auto Crop, Auto Size for Page Detection, Gamma, Contrast, Brightness, Colour Dropout (RGB), Image Edge Fill, Preview, Page Size, Scan Mode, Multi-image Output, Job Function, Merge Page/Split Page, Card Scanning Mode, Outputs scanned documents in a variety of formats such as PDF, JPEG and TIFF formats. It can also recognize text using OCR and create multi-page pdfs with automatic document feeders. The PS30D works on Windows, Mac, and Linux

● Auto Threshold

Automatically thresholds the current image into a binary black and white image.

● Auto Rotate

Automatically rotates document based on the contents of the document

● Auto Crop & Deskew

Automatically straightens and crops image to the document’s actual size.

● Auto Mode

Automatically detects document color and scans document in color, grayscale or black & white mode.

● Multi-Image Output

Scans and saves documents in 2 or 3 modes at same time

● Blank Page Removal

Automatically removes blank pages without manual editing

● Color Dropout

Removes red, green or blue color when scanning forms.

Specification



TypeAutomatic Document Feeder (ADF)
Image SensorCIS Sensor x 2
Optical Resolution600 dpi
Hardware Resolution600 x 600 dpi
ADF Capacity1. 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
2. 20 sheets (Business Cards)
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF )30 ppm/ 60 ipm (Grayscale mode, 200 dpi, A4 Portrait)
30 ppm/ 60 ipm (B&W mode, 200 dpi, A4 Portrait)
25 ppm/ 50 ipm (Color, 200 dpi, A4 Portrait)
Note : Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L)Max: 216 x 5080 mm (8.5” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Scan: Name Card, A5, Quarto, Letter, A4, Folio (F4), Legal
Acceptable Paper Sizes (W x L)Max: 244 x 5080 mm (9.6” x 200”)
Min: 50.8 x 50.8 mm (2” x 2”)
Acceptable Paper Weight (Thickness)50 to 105 g/㎡ (14 to 28 Lbs)
Daily Duty Scan ( Sheets )3,000
Roller Lifetime (Scans)100,000
Pad Lifetime (Scans)20,000
Action Button3 Buttons: Up, Down, Scan
9 Function Keys: All Customizable.
Power Supply24 Vdc/ 0.75 A

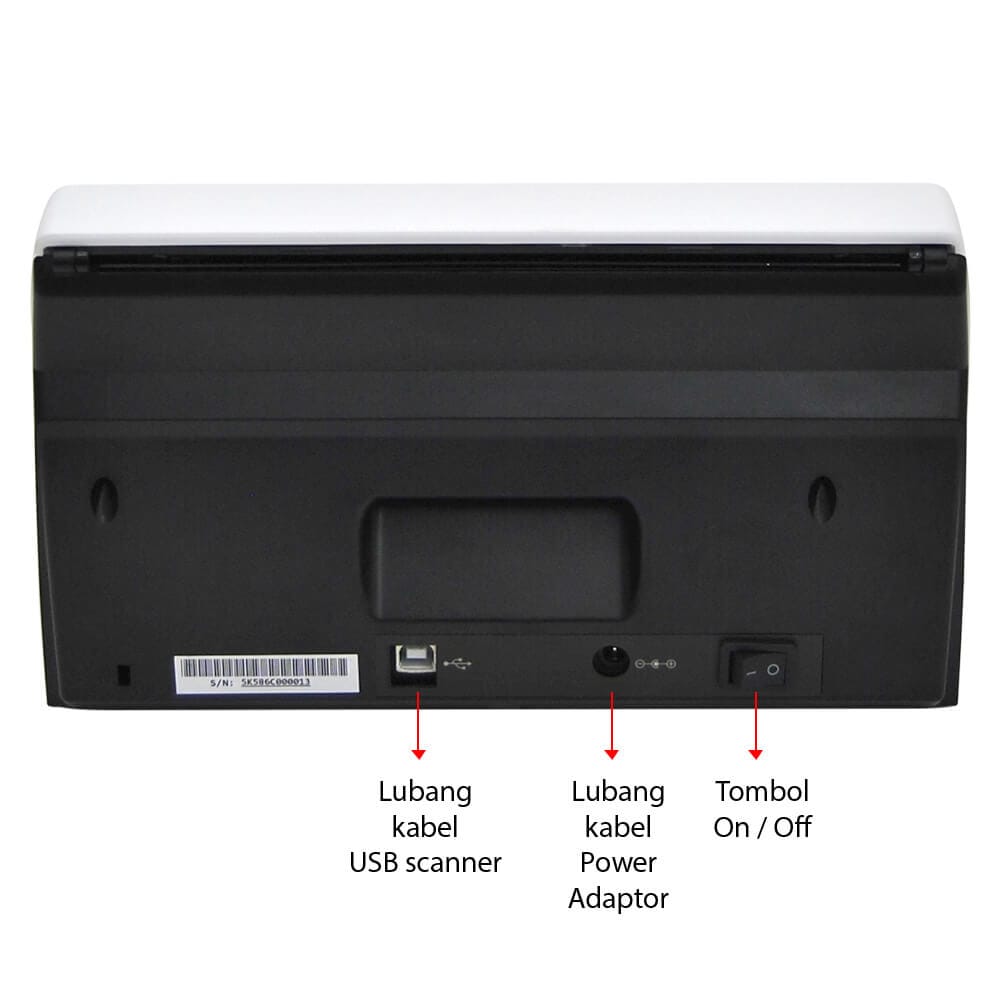

InterfaceUSB 2.0
Net Weight1.9 Kgs (4.2 Lbs)
Dimensions (W x D x H)263 x 132 x 148 mm (10.36″ x 5.19″ x 5.83″)
ProtocolTWAIN Compliant
OSWindows XP, Vista, 7, 8, 10
Intel-based Mac with OS X (v10.8 – v10.11)
Hardware RequirementsPentium IV 2.0 GHz processor (Pentium IV 3.0 GHz processor recommended)
CD-ROM Driver
One available USB Port (USB 2.0 recommended)
1GB RAM or higher recommended
800 MB free HDD space (1 GB or larger recommended)



Product Weight Specification

Net Weight1.9 Kg
Bruto Weight4 Kg
Product Dimensions (W x D x H)26.3 x 13.2 x 14.8 cm
Box Dimensions (W x D x H)36 x 25 x 24 cm

Downloads



Driver Scanner :



Icons Mac SmartOffice PS30D Driver for MacOS 10.8 – 10.11
Size : 75.6 mB (updated 21 July 2016)
EMC Isis Driver :
Icons Windows EMC Isis Driver for Windows XP – 7
Size : 15.4 mB (updated 20 December 2016)
Leaflet :
Icons-PDF SmartOffice PS30D Leaflet
Size : 1.2 mB (updated 25 January 2015)
