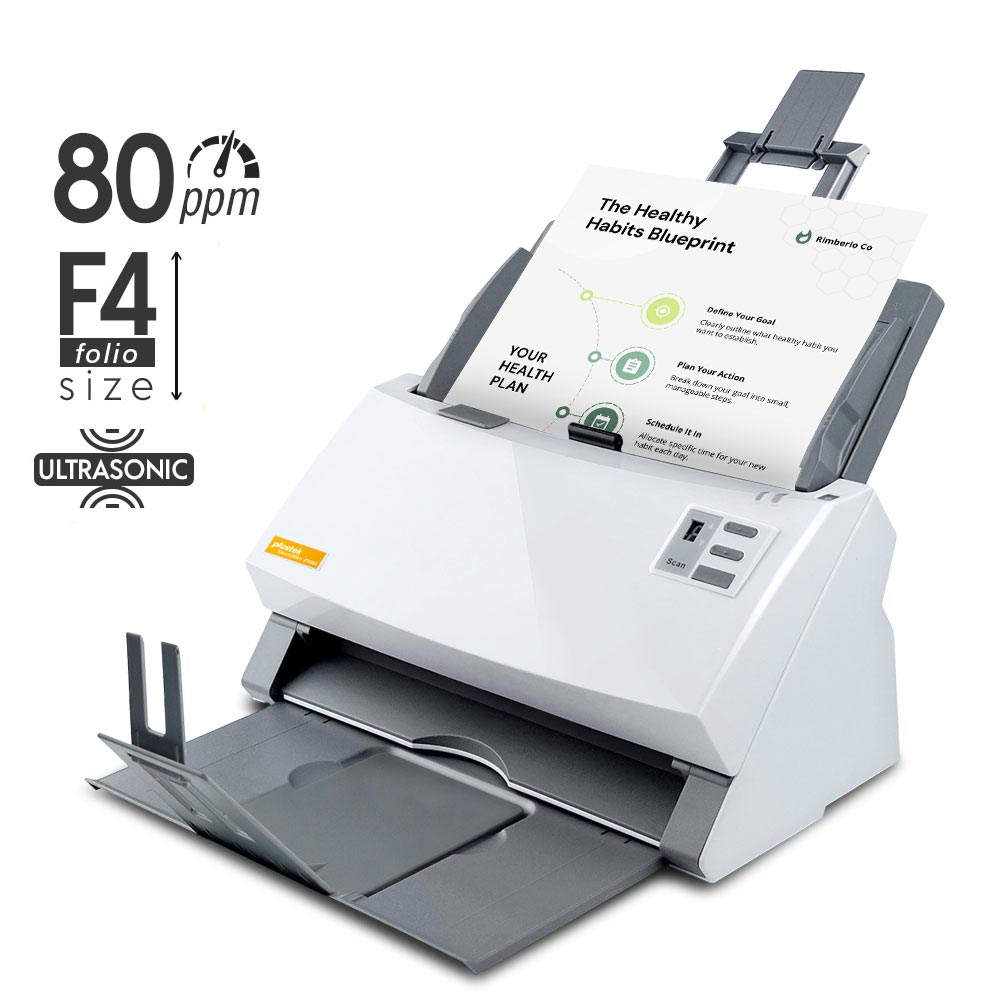

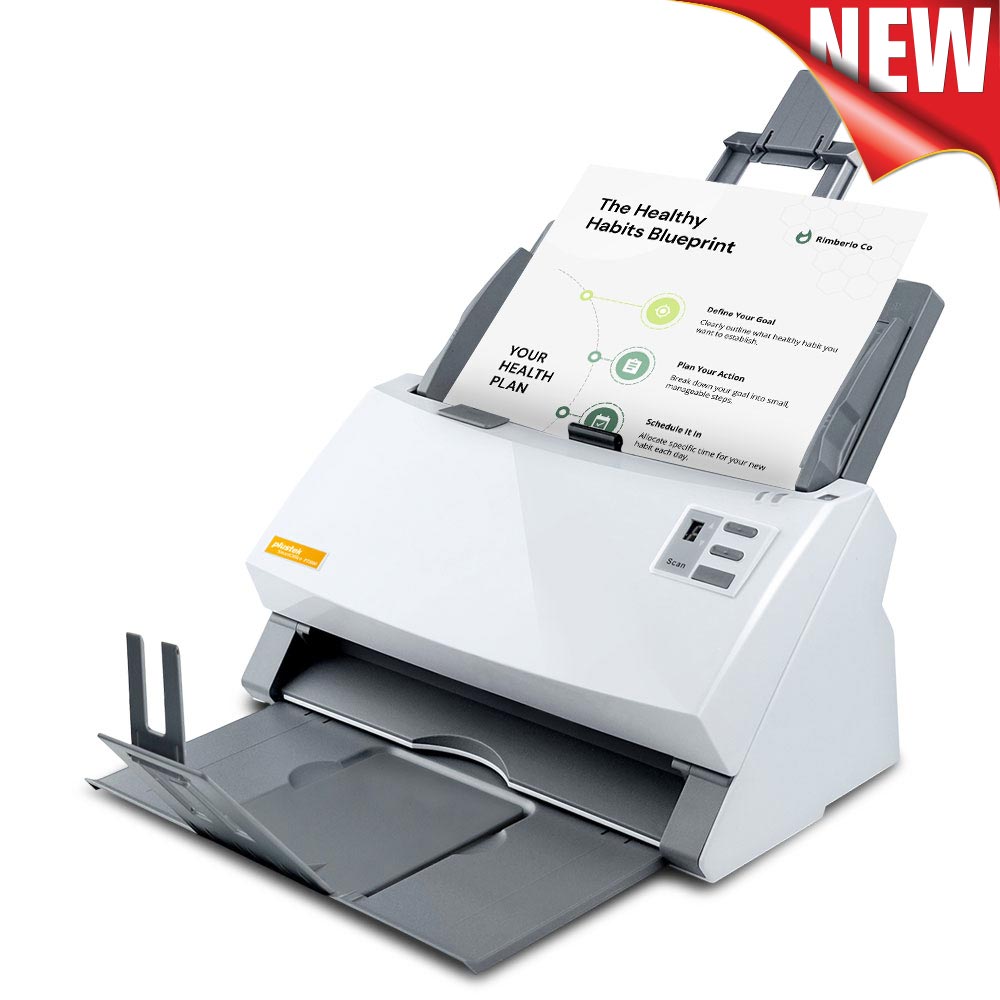

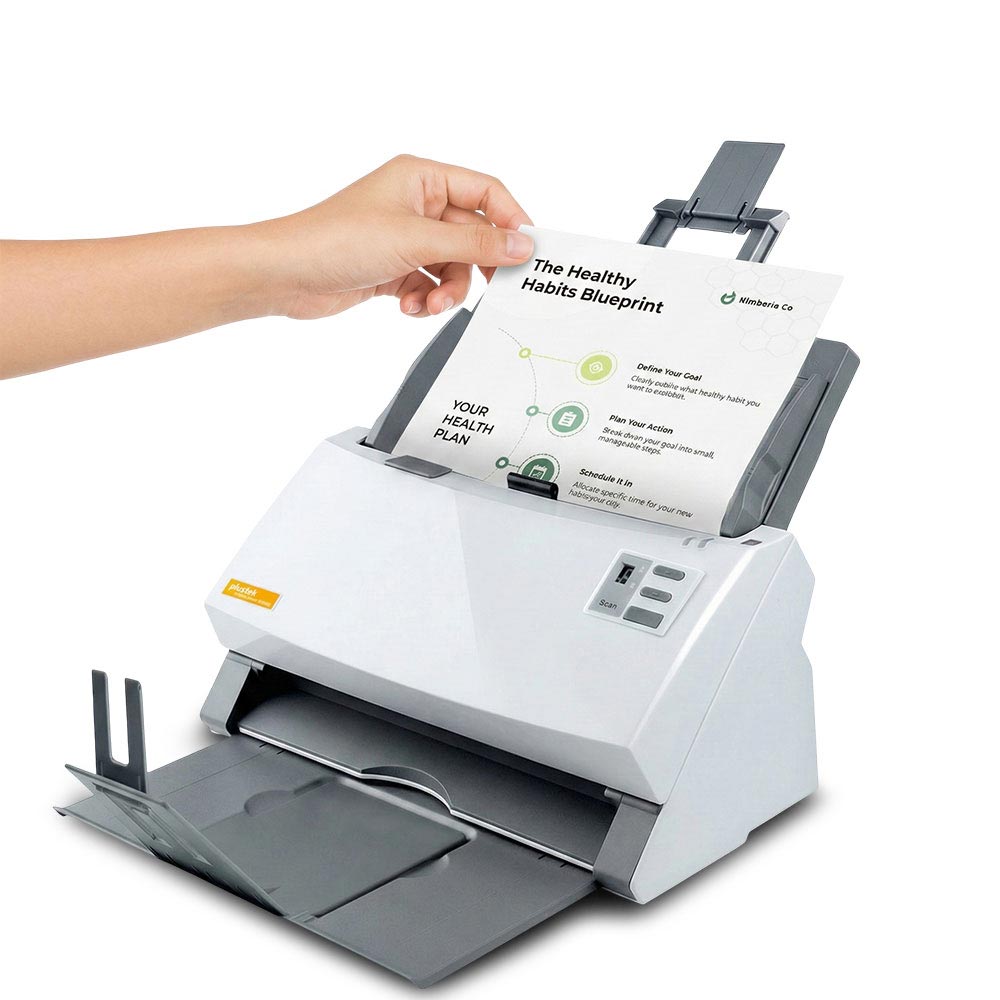

SmartOffice PT800

80 ppm Simplex Color Scanning
100 Sheets ADF Capacity
Business Cards to Legal Sized Documents Scanning Available
Small Footprint

SKU: PT-800 Category: Automatic Document Feeder (ADF) Scanner Series

Stay Organized. Convert your paper document in the most efficient way

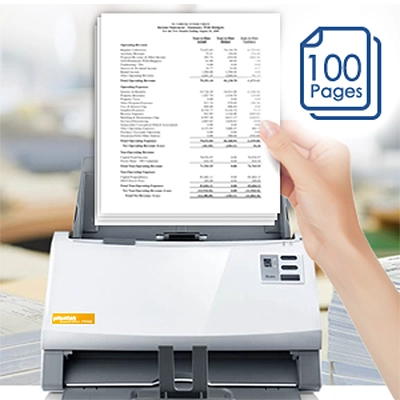

Batch Scan 100 Pages: 100-page, both side automatic document feeder for handling even the heavy scanning jobs.

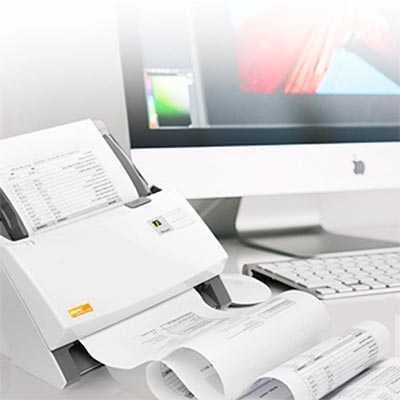

Scan long paper up to 200″ (5080mm):Easily scans documents, contract, receipts, business and plastic cards, and more – from business card, even the long paper up to 200″ (5080mm).

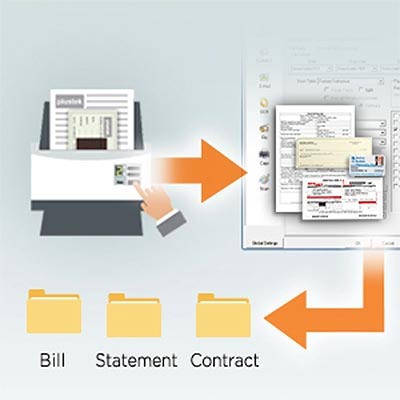

Customizable Scan Button
Tap button and your document will be sent to your pre-configured folder, including the preset file format and resolution.

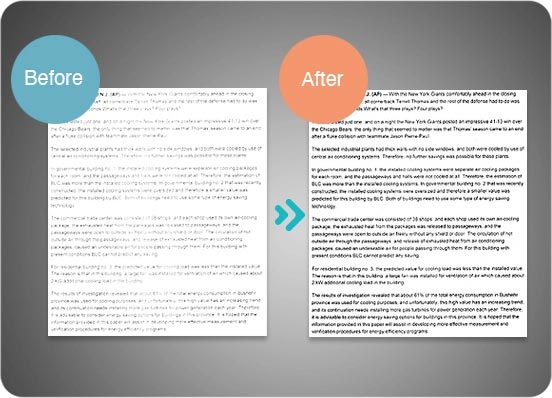

Image Enhancement Technology
Automatically optimize the image by concentrate the dark color, enhance the bright background and allocate the color distribution. You don’t need to spend to adjust IP or learning.

Enhance Paper Feeding
With optimized Friction Roller system with advanced composite material, this technology helps the paper feeding process become more smooth and reliable. This not only minimizes the feeding errors, but also help you efficiently finish the process of digitizing documents.

Specification Hardware

Type	Automatic Document Feeder (ADF)
Image Sensor	CIS X 2 (Duplex)
Light Source	LED
Optical Resolution	600 dpi
Interpolated Resolution	1200 dpi
Hardware Resolution	600 x1200 dpi
Scan Modes	Color: 48-bit input, 24-bit output
	Grayscale: 16-bit input, 8-bit output
	B/W: 1-bit
ADF Capacity	1. 110 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
	2. 30 sheets (Business Cards)
	3. Plastic Card, Max. thickness under 1.2 mm.
	Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF )
	80 ppm/ 160 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait)
	80 ppm/ 160 ipm (Grayscale/B&W mode, 300 dpi, A4 Portrait)
	80 ppm/ 160 ipm(Color mode, 200 dpi, A4 Portrait)
	70 ppm/ 140 ipm (Color mode, 300 dpi, A4 Portrait)
	Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scan Area (L x W)	Maximum: 216 x 5080 mm (8.5 “x 200”)
	Minimum: 13.2 x 13.2 mm (0.52 “x 0.52”)
	Scan: Kartu Nama, A5, Kuarto, Letter, A4, Folio (F4), Legal
Acceptable Paper Sizes (W x L)	Maximum: 216 x 5080 mm (8.5 “x 200”)
Acceptable Paper Sizes (W x L)	Minimum: 50.8 x 50.8 mm (2 “x 2”)
Acceptable Paper Weight (Thickness)	40 to 220 g/㎡ (10 to 58 Lbs)
Multi-feed Detection	With ultrasonic technology
Daily Duty Scan ( Sheets )	8,000
Roller Lifetime (Scans)	300,000
Pad Lifetime (Scans)	100,000
Action Button	4 Buttons: Up, Down, Scan, Standby
Action Button	9 function keys are all customizable.
Power Supply	24 Vdc/ 1.25 A

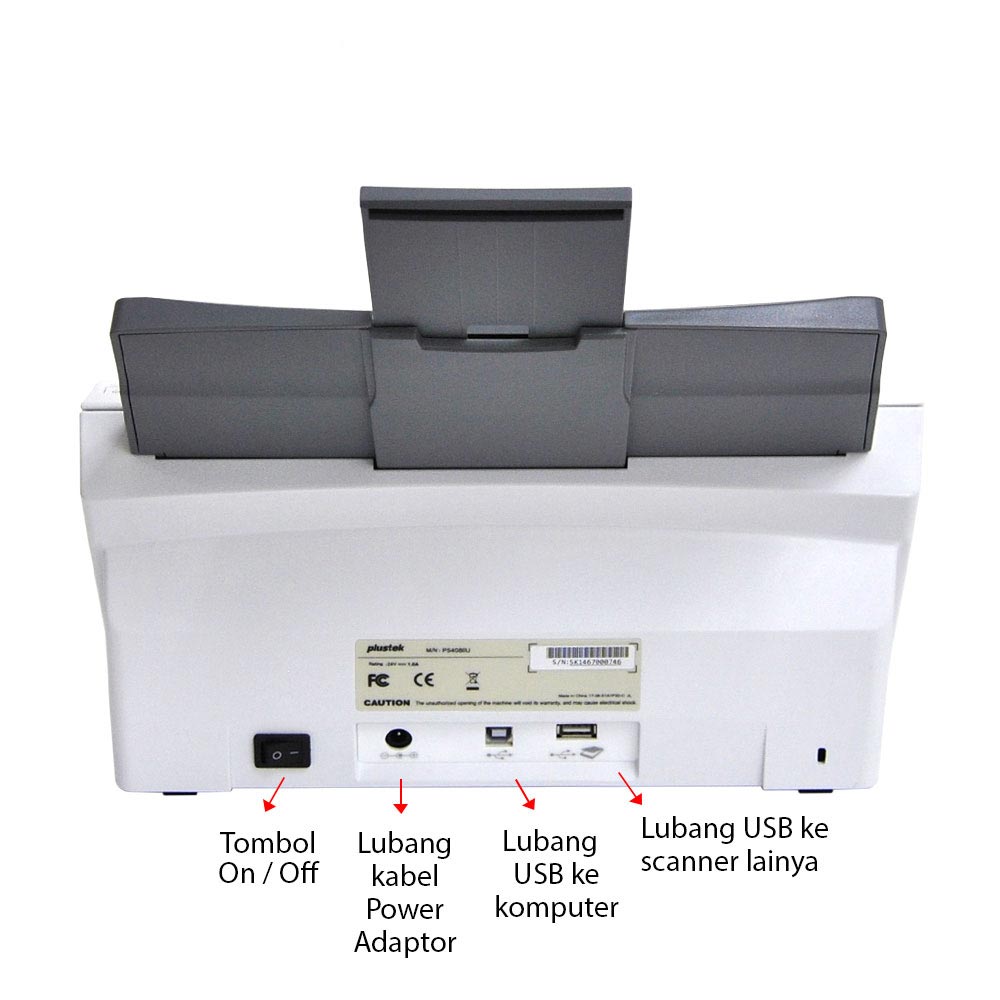

Interface	USB 3.2 Gen 1 Type B x 1
Net Weight	2.7 Kgs (5.95 Lbs)
Dimensions (L x W x H)	318.7 x 230.7 x 228.3 mm (12.55 “x 9.08” x 8.99 “)
Protocol	TWAIN Compliant
OS	Windows XP / Vista / 7 / 8 / 10 / 11
OS	Linux compatibility is only available for system integrators. Please contact [email protected] for more info.
Hardware Requirements	Windows and Mac
	2.0 GHz CPU processor or higher[1][2][3]
	[1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher
	[2]Support Mac INTEL and M1 based processor
	[3]Compatibility is not available with PowerPC
	4 GB RAM minimum (Recommended: 8 GB or more)
	6 GB of hard-disk space for program installation
	Display dimensions of 1024×768 or greater
Bundled Software	Plustek DocAction
Bundled Software	Plustek DocTWAIN
Built-in OCR	Plustek OCR (For Windows) (Powered by ABBYY® FineReader®)

Daftar Kelengkapan Produk

1 Scanner SmartOffice PT800	1 AC Adaptor 24V
1 CD Instalasi	1 Kabel USB
1 Kertas Kalibrasi	1 Lap Pembersih
1 CD Plustek Tools	1 Paper Feeder Tray
1 Panduan Cara Pemasangan Scanner (Bahasa Inggris)	1 Panduan Cara Pemasangan Scanner (Bahasa Indonesia)
