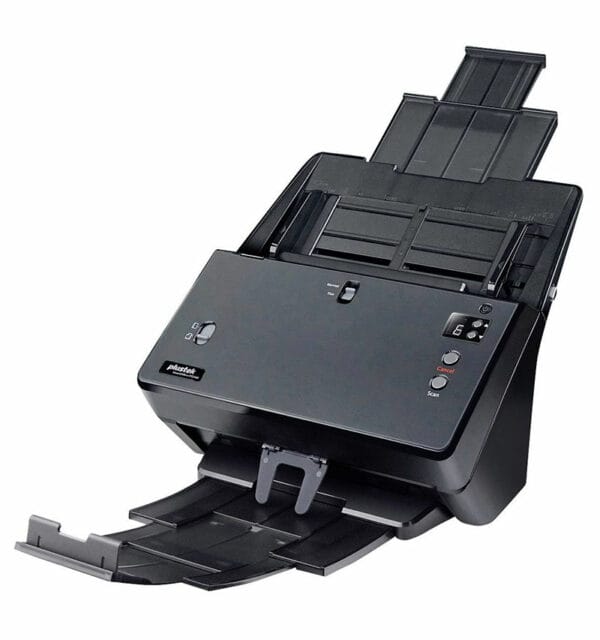

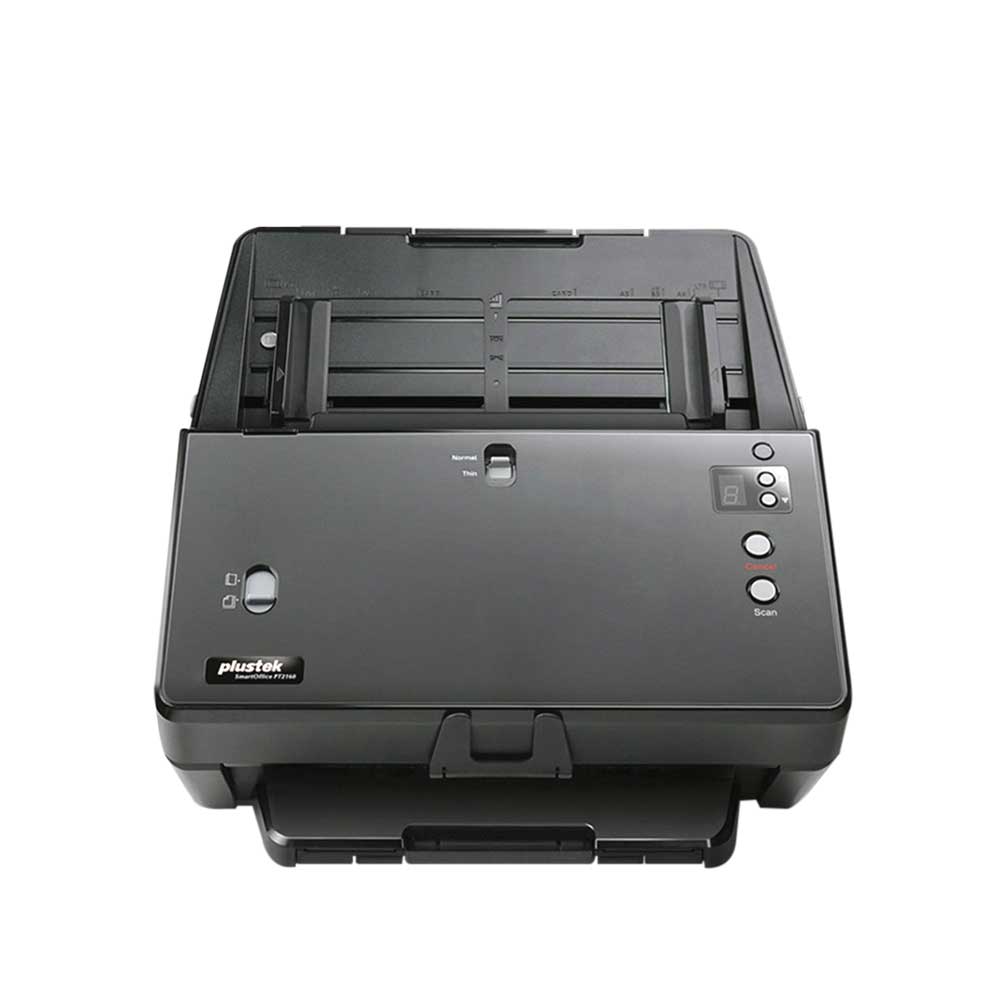

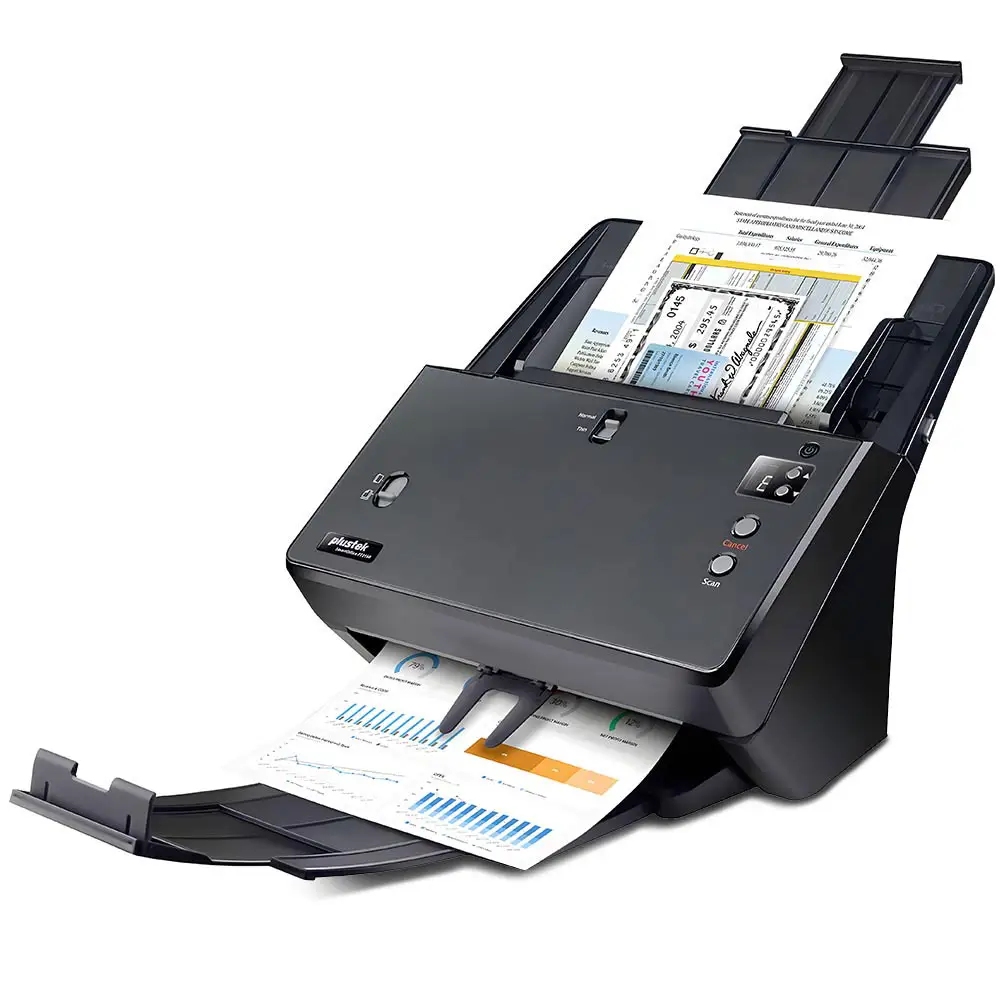

SmartOffice PT2160

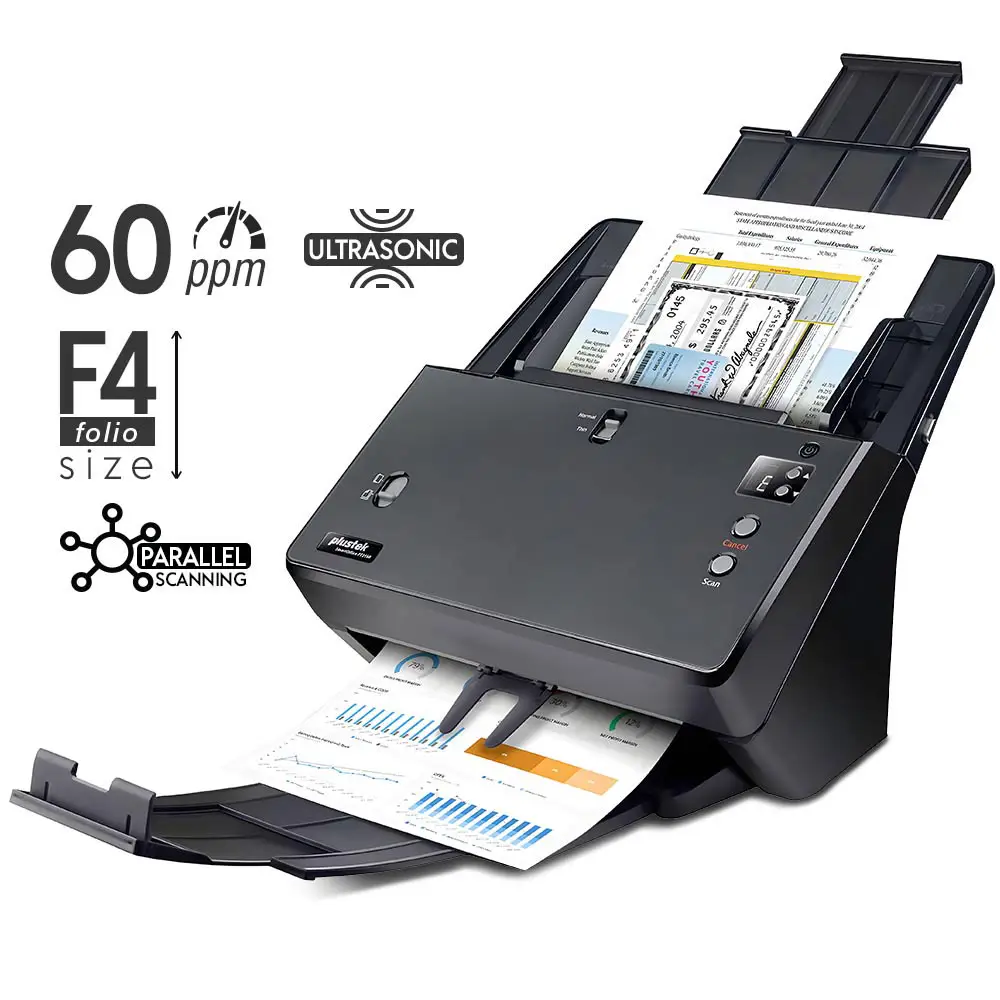

  • Scan speed up to 60ppm/120ipm in grayscale mode
  • 100 page ADF capacity and a generous daily duty cycle up to 8000 pages
  • Built-in ultrasonic misfeed detection
  • TWAIN, ISIS and WIA drivers

Reliable paper feeding

The innovative reversible friction rollers increase the stability of document feeding and the ability of paper separation. It avoids the risk of multi-feed and incorrect result when you scan batch of document/card in di erent thickness and size.

One switch to protect your fragile document

Due to the different types of papers for every industry, the PT2160 provides a thickness switch for more reliable scanning, for example, prevent the thin paper which might be damaged by friction roller or by paper jam.

USB3.0 : High speed document transfer to PC

The scanner supports USB 3.0 to facilitate high-speed data transmission between the scanner and the computer.

Reduce Scanning Error

Equipped with ultrasonic muilti-feed detector, which detect accurately the error when feed two or more pages at the same time.

Bundled with Plustek OCR* and Plustek DocAction professional button configuration software

Specification

Type Automatic Document Feeder (ADF)
Image Sensor LED
Optical Resolution 600 dpi
Hardware Resolution 600 x 600 dpi
ADF Capacity 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
2. 30 sheets (Business Cards)
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF ) 60 ppm/ 120 ipm (Grayscale mode, 300 dpi, A4 Portrait)
60 ppm/ 120 ipm (B&W mode, 300 dpi, A4 Portrait)
60 ppm/ 120 ipm (Color mode, 300 dpi, A4 Portrait)
Note: Hasil data bisa berbeda tergantung spesifikasi komputer.
Scanning Area (W x L) Max: 216 x 5080 mm (8.5” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Scan: Kartu Nama, A5, Kuarto, Letter, A4, Folio (F4), Legal
Acceptable Paper Sizes (W x L) Max: 244 x 5080 mm (9.6” x 200”)
Min: 50.8 x 50.8 mm (2” x 2”)
Acceptable Paper Weight (Thickness) 27 to 413 g/㎡ (7.2 to 110 Lbs)
Daily Duty Scan ( Sheets ) 8,000
Multi-feed Detection With ultrasonic technology
Roller Lifetime (Scans) 300,000
Pad Lifetime (Scans) 100,000
Action Button 5 Buttons: Power, Up, Down, Cancel, Scan
9 function keys are all customizable.
Power Supply 24 Vdc/ 1.25 A

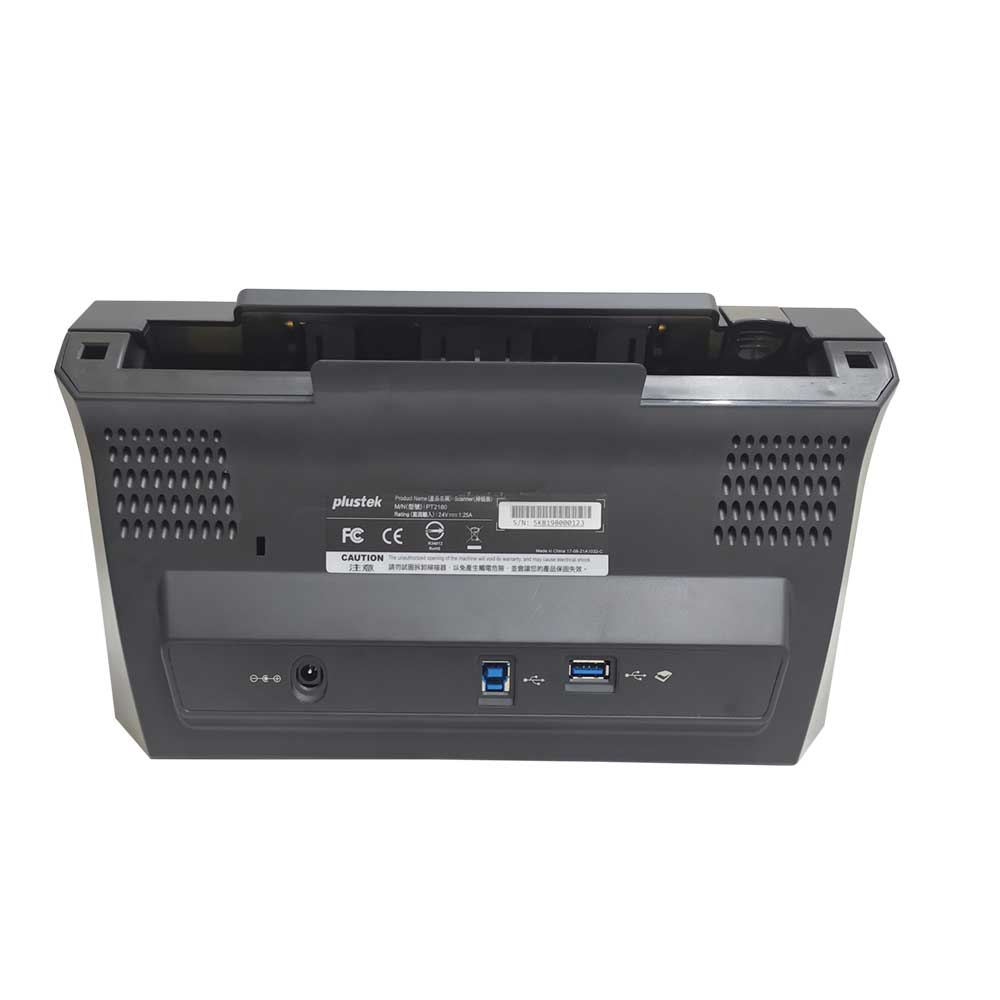

Interface USB 3.0
Net Weight 4.1 Kgs (9.04 Lbs)
Dimensions (W x D x H) 319.9 x 298.2 x 236.6 mm (12.59″ x 11.74″ x 9.32″)
Protocol TWAIN Compliant
OS Windows 7, 8, 10
Hardware Requirements CPU: Intel® Core i5 2.5 GHz or higher
Memory: 4 GB (32 bit Windows) / 8GB (64-bit Windows)
USB Port: USB 3.0 Port (USB 2.0/1.1 supported)
Bundled Software
Plustek DocAction
Plustek DocTWAIN
Built-in OCR
Plustek OCR
(Powered by ABBYY® FineReader®)

Downloads

Leaflet Produk:
Driver Scanner :
SmartOffice PT2160 Driver for Windows 7-10
Size : 172 mB (updated 30 April 2020)
