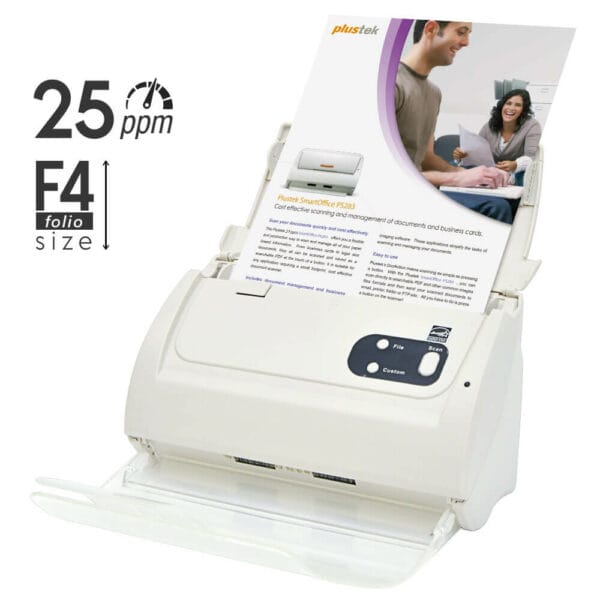

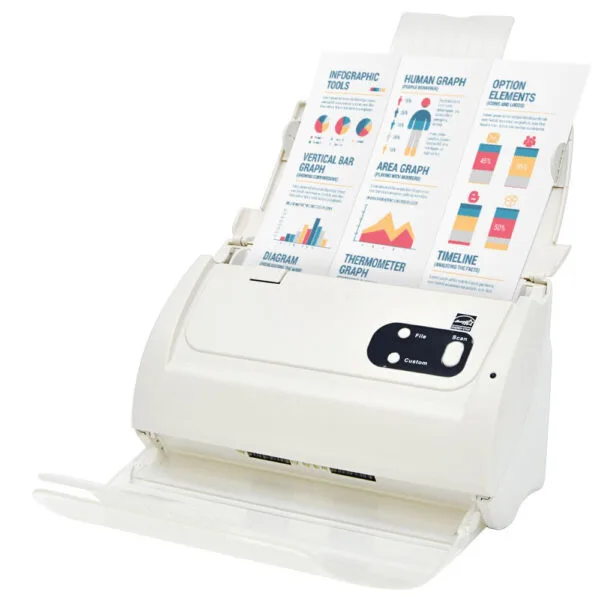

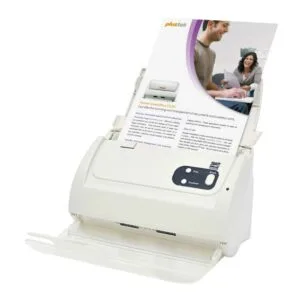

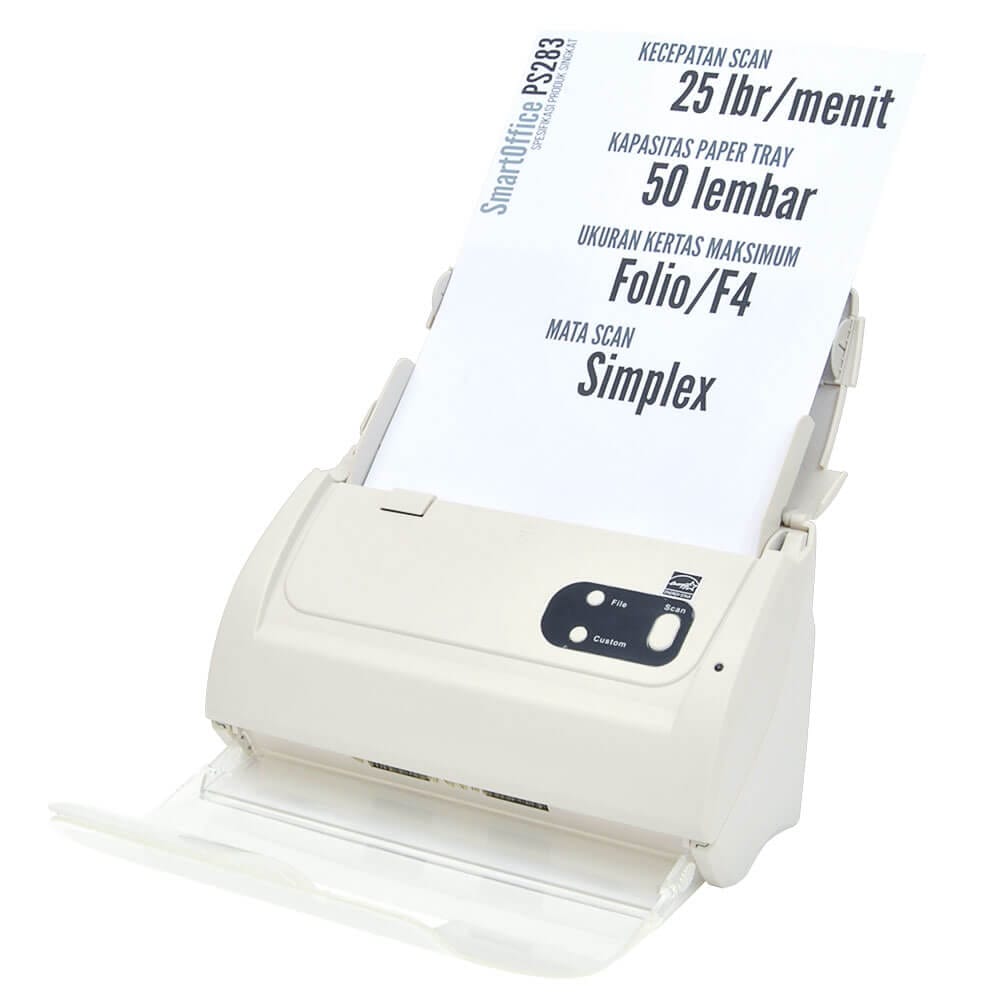

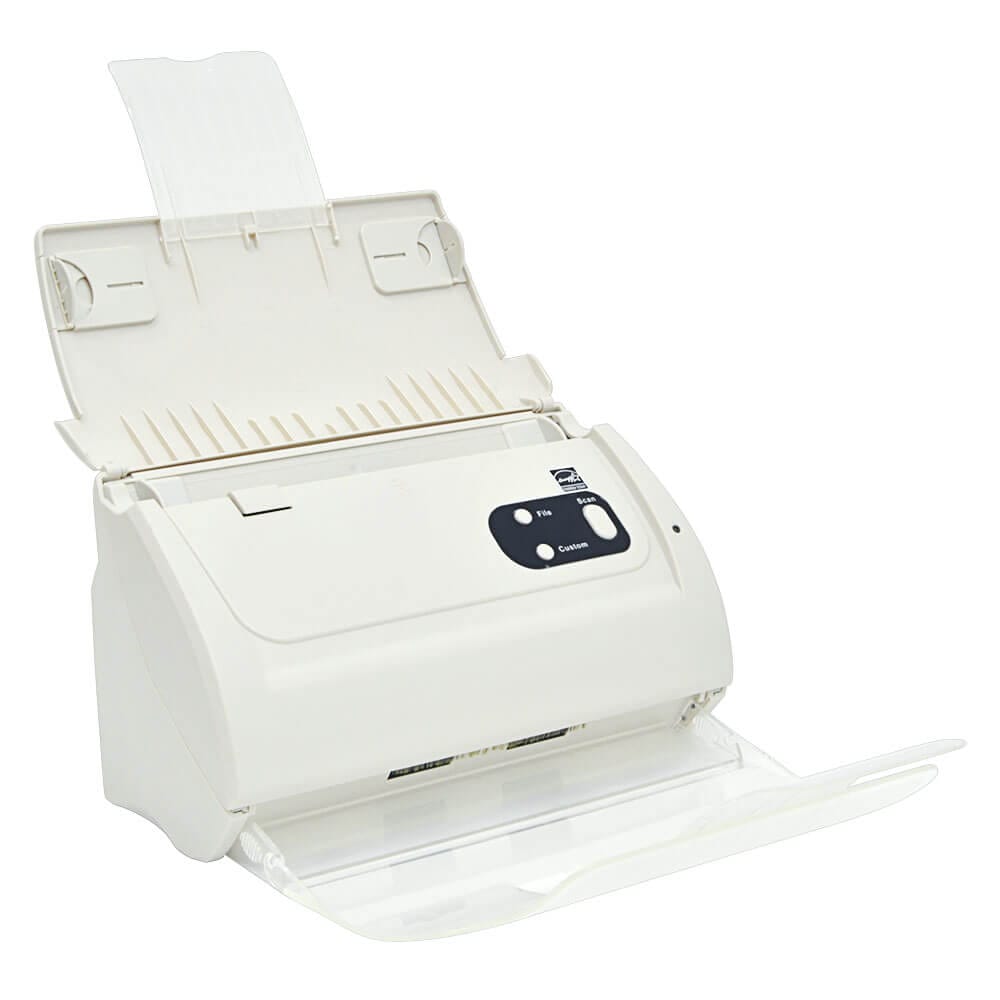

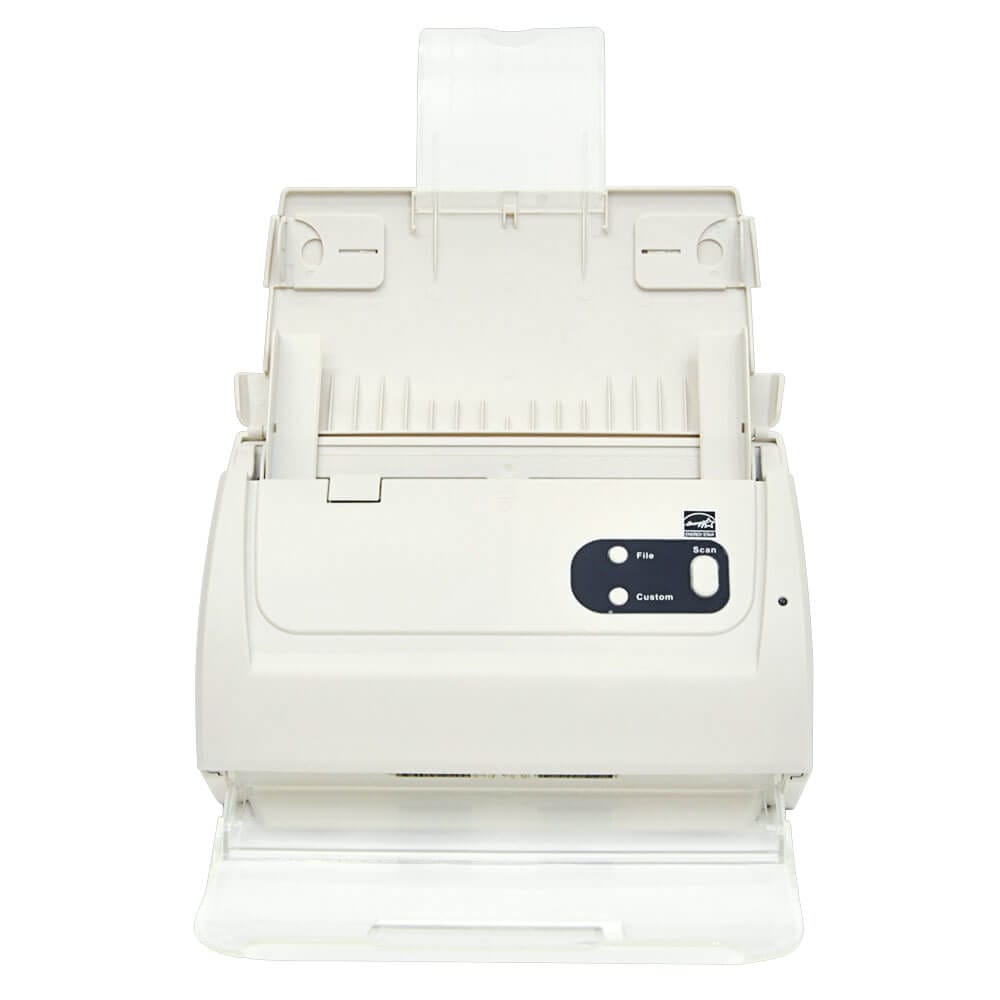

SmartOffice PS283

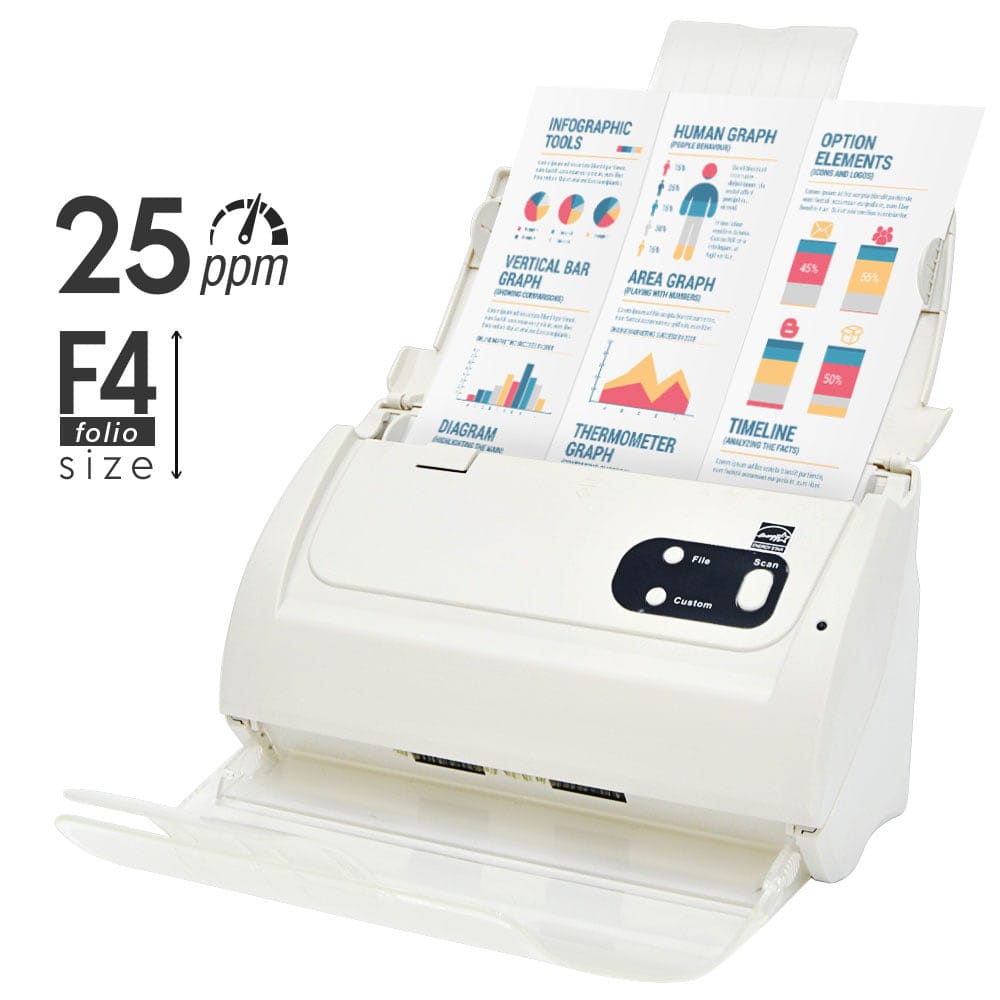

  • 25 ppm Simplex Color Scanning
  • 50 Sheets ADF Capacity

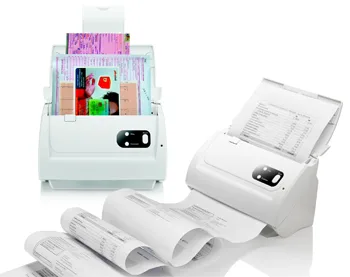

  • Business Cards to Legal Sized Documents Scanning Available

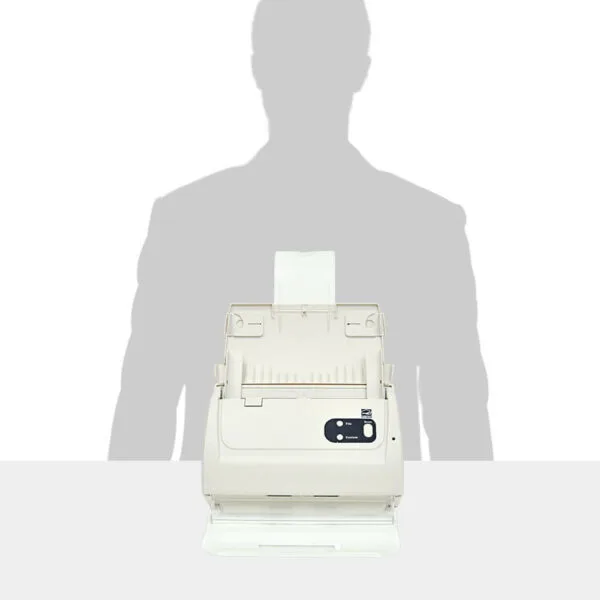

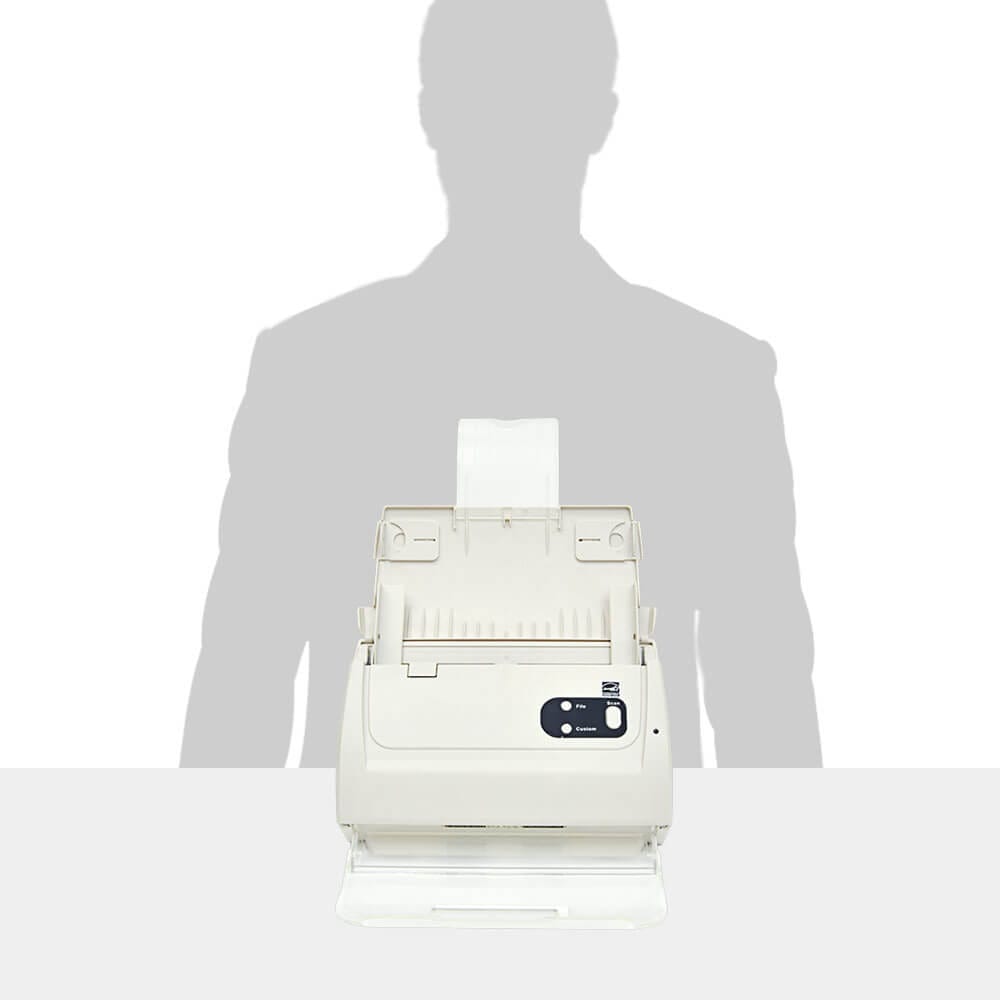

  • Small Footprint

Description

The Plustek 25 ppm SmartOffice PS283 offers you a flexible and productive way to scan and manage all of your paper based information.

From business cards to legal size documents, they all can be scanned and saved as a searchable PDF at the touch of a button. The SmartOffice PS283 is suitable for any application requiring a small footprint, cost effective document scanner.

Includes document management and business card scanning software

The SmartOffice PS283 comes with a powerful software bundle including document management, business card reading, Optical Character Recognition (OCR), and imaging software. These applications simplify the tasks of scanning and managing your documents

One single touch to scan directly into common file formats and preferable destinations

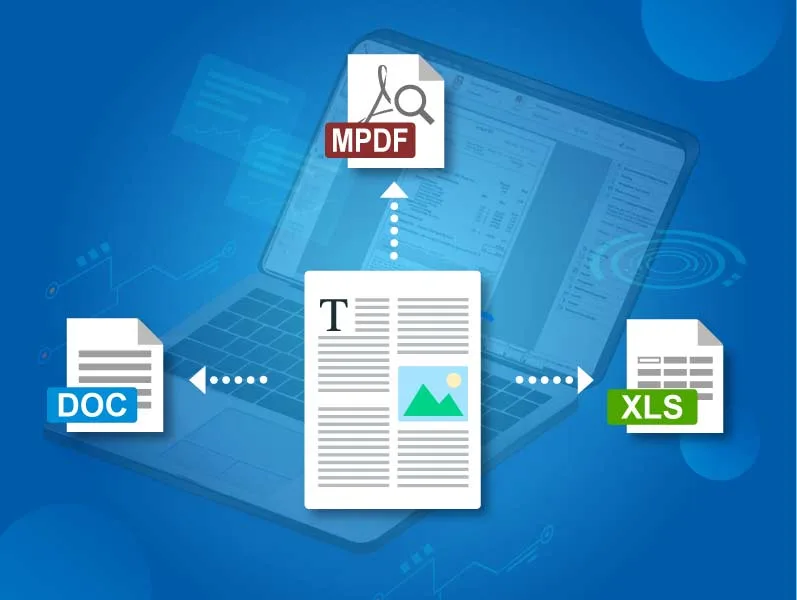

Plustek’s DocAction makes scanning as simple as pressing a button. With the Plustek SmartOffice PS283, you can scan directly to searchable PDF and other common image file formats and then send your scanned documents to email, printer, folder or FTP site. All you have to do is press a button on the scanner! The SmartOffice PS283 also includes an industry standard TWAIN drivers, that allows the scanner to be used with thousands of document management and image enabled programs.

Easily transportable and ideal for vertical applications

The PS283’s small footprint and its ability to scan rigid cards such as insurance cards, credit cards and membership cards make the PS283 ideal for applications like: patient registration, pharmacy prescription scanning, accounting, remote deposit and more. The included TWAIN drivers ensure compatibility with your application.

Environmentally Responsible and Energy-Saving

The SmartOffice PS283 is environmentally responsible and easy to use at the same time thanks to its ENERY STAR certification, low power LED illumination technology and power-saving function.

Features

The SmartOffice PS283 has following features:

● Auto Threshold

Automatically thresholds the current image into a binary black and white image.

● Auto Rotate

Automatically rotates document based on the contents of the document.

● Auto Crop & Deskew

Automatically straightens and crops image to the documents actual size.

● Auto Mode

Automatically detects document color and scans document in color, grayscale or black & white mod

● Color Dropout

Removes red, green or blue color when scanning forms.

● Blank Page Removal

Automatically removes blank pages without manual editing.

Specification



TypeAutomatic Document Feeder (ADF)
Image SensorCIS
Optical Resolution600 dpi
Hardware Resolution600 x 600 dpi
ADF Capacity1. 50 sheets (A4/Letter, 70 g/㎡ or 18 lb.), Max. thickness under 5mm (0.2″).
2. 20 sheets (Business Cards)
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF )25 ppm (Grayscale mode, 200 dpi, A4 Portrait)
25 ppm (B&W mode, 200 dpi, A4 Portrait)
9 ppm (Color mode, 200 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L)Max: 216 x 356 mm (8.5” x 14”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Scan: Name Card, A5, Quarto, Letter, A4, Folio (F4), Legal
Acceptable Paper Sizes (W x L)Max: 220 x 356 mm (8.66” x 14”)
Min: 50.8 x 50.8 mm (2” x 2”)
Acceptable Paper Weight (Thickness)50 to 105 g/㎡ (14 to 28 Lbs)
Daily Duty Scan ( Sheets )1.500
Roller Lifetime (Scans)100.000
Pad Lifetime (Scans)20.000
Action ButtonScan, File, Custom (PDF)

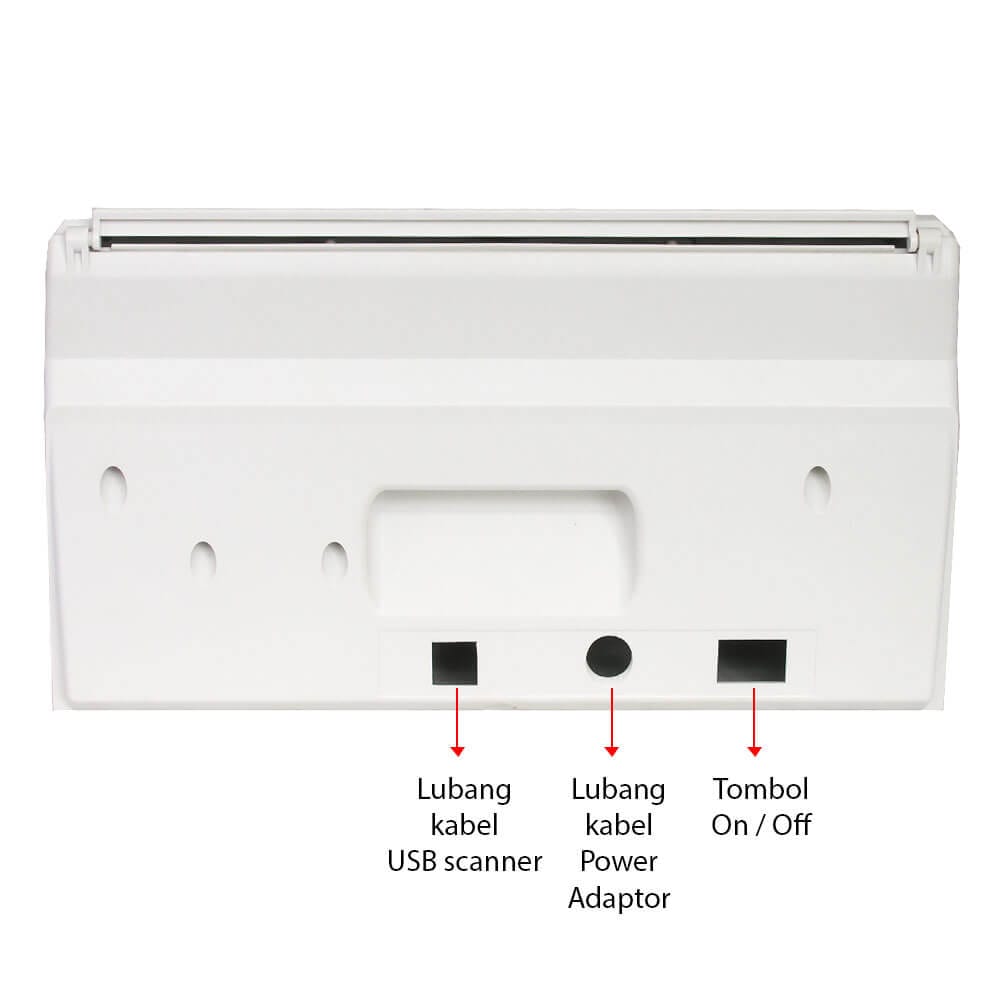

Power Supply24 Vdc/ 0.75 A
InterfaceUSB 2.0
Net Weight1.66 Kgs (3.66 Lbs)

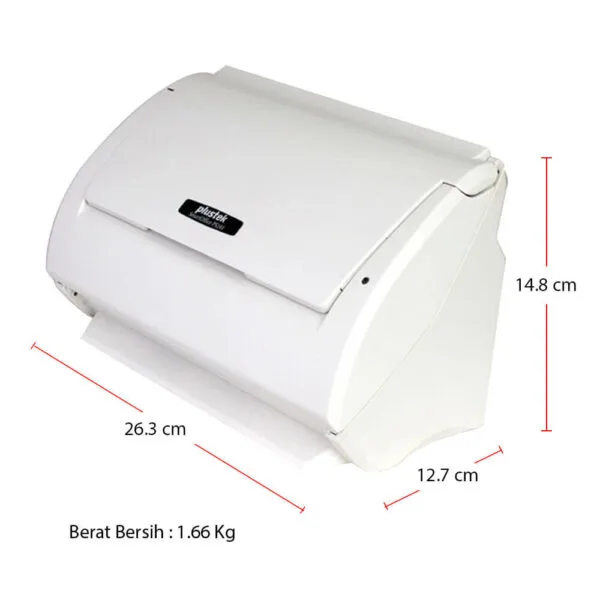

Dimensions (W x D x H)263 x 127.5 x 148 mm (10.36” x 5.02” x 5.83”)
ProtocolTWAIN Compliant
OSWindows XP, Vista, 7, 8, 10
Hardware RequirementsPentium® IV 2.0 GHz processor (Pentium IV 3.0 GHz processor recommended)
CD-ROM Driver
One available USB Port (USB 2.0 recommended)
1GB RAM or higher recommended
800 MB free HDD space (1 GB or larger recommended)



Product Weight Specification

Net Weight1,66 Kg
Bruto Weight4 Kg
Product Dimensions (W x D x H)26,3 x 12,7 x 14,8 cm
Box Dimensions (W x D x H)36 x 25 x 24 cm



Downloads

Driver Scanner :
Icons Windows SmartOffice PS283 Driver for Windows XP-10
Size : 48.2 mB (updated 21 August 2015)
Leaflet :

Size : 521 kB (updated 25 August 2015)
