SmartOffice PS188

  • Scan Speeds up to 30 ppm / 60 ipm in Grayscale Mode
  • Scans Rigid Cards and A3 Document with Page Merge function
  • Creates Searchable PDFs
  • Single Touch Scanning to 9 Destinations
Category: Tags: , ,

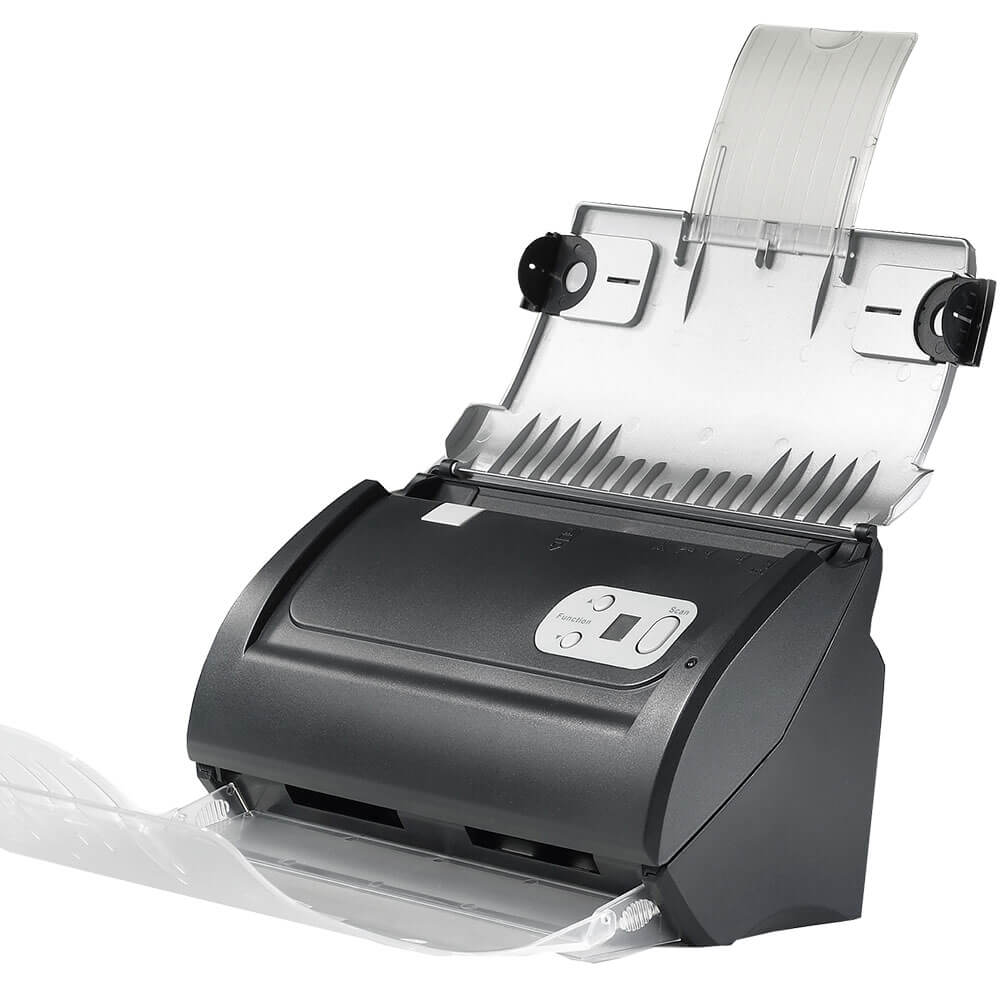

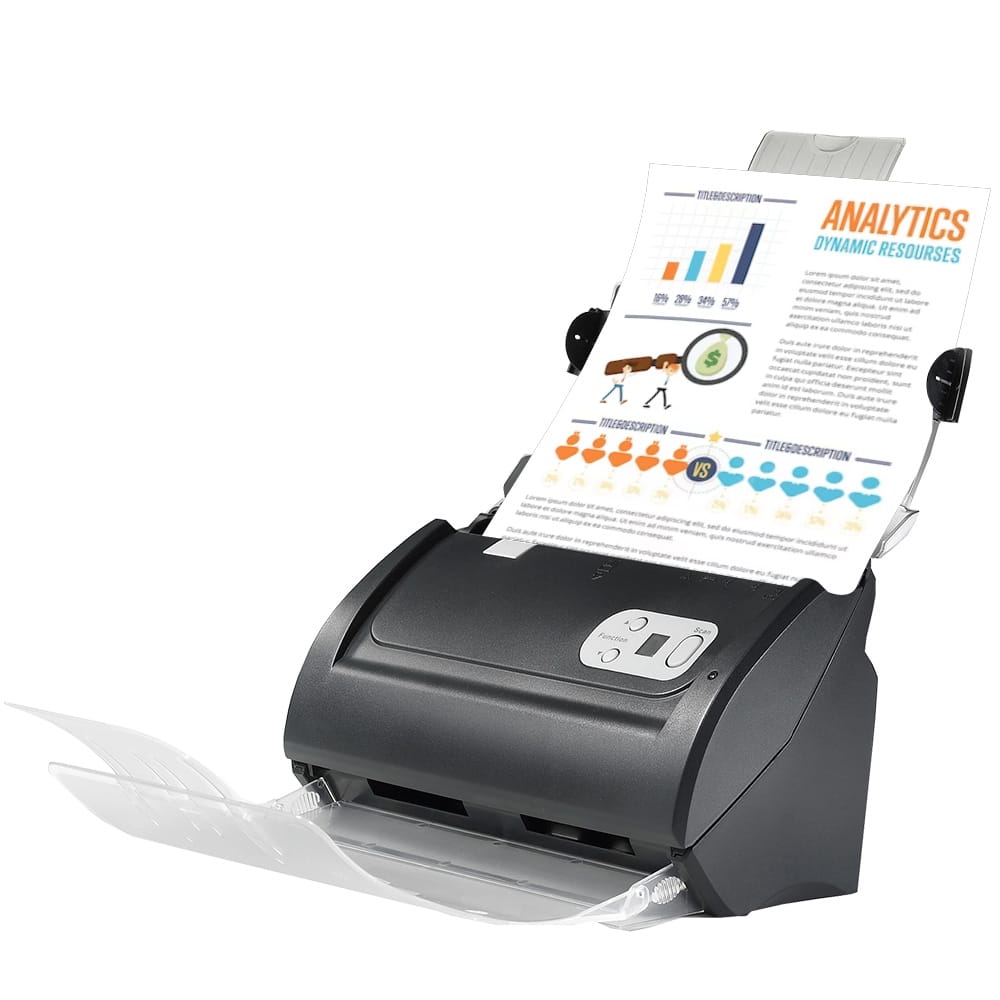

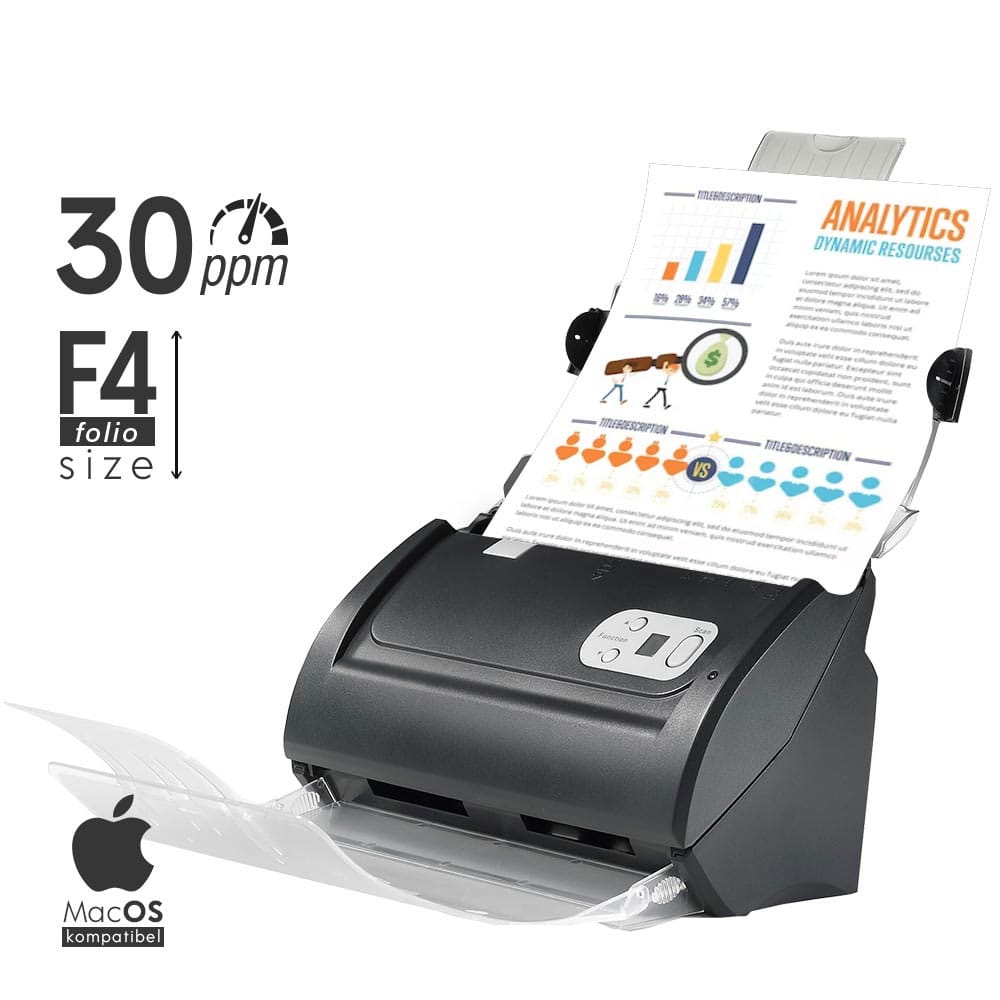

For All Your Home and Home Office Scanning Need Plustek SmartOffice PS188

The SmartOffice PS188 has been designed to help office workgroups optimize their individual workflow. Using the new scanning management software; DocAction II and MacAction II, included with the PS188 allows for simple organization and management of scanned documents.

50-sheet ADF and high-speed scanning

The PS188 is a 30/60 page-per-minute duplex scanner with a 50-sheet Automatic Document Feeder (ADF), making it highly efficient for scanning large batches of documents.

Scan and save documents into popular digital formats

The PS188 offers multiple types of saving format, including; PDF, TIFF, BMP, JPG, and PNG. It is convenient for multiple different users, for instance, accounting and sales departments, to deliver and edit multi format documents using the same scanner.

Optical Character Recognition (OCR)

Convert your scanned documents into text searchable and editable files, thus making the files easier to organize, search, and share.



Specification

Type Automatic Document Feeder (ADF)
Image Sensor CIS x 2
Optical Resolution 600 dpi
Hardware Resolution 600 x 600 dpi
ADF Capacity 1. 50 sheets (A4/Letter, 70 g/㎡ or 18 lb.), Max. thickness under 5mm (0.2″).
2. 20 sheets (Business Cards)
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF ) 30 ppm/60 ipm (200 dpi, grayscale mode, A4 Portrait)
30 ppm/60 ipm (200 dpi, B&W mode, A4 Portrait)
30 ppm/60 ipm (200 dpi, color mode, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L) Max: 216 x 5080 mm (8.5” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Scan: Kartu Nama, A5, Quarto, Letter, A4, Folio (F4), Legal
Acceptable Paper Sizes (W x L) Max: 220 x 5080 mm (8.66” x 200”)
Min: 63.5 x 50.8 mm (2.5” x 2”)
Acceptable Paper Weight (Thickness) 50 to 105 g/㎡ (14 to 28 Lbs)
Daily Duty Scan ( Sheets ) 4000
Roller Lifetime (Scans) 300.000
Pad Lifetime (Scans) 50.000
Action Button 3 Buttons: Up, Down, Scan. 9 Function Keys. All Customizable.
Power Supply 24Vdc/0.75 A
Interface USB 2.0
Net Weight 1.66 Kgs (3.66 Lbs)
Dimensions (W x D x H) 263 x 127.5 x 148 mm (10.36” x 5.02” x 5.83”)
Protocol TWAIN Compliant
OS Windows 7 / 8 / 10
Mac Os 10.8 / 10.9 / 10.10 / 10.11 / 10.12 / 10.13 / 10.14
Hardware Requirements Pentium IV 2.4 GHz processor
DVD-ROM Driver
One available USB Port (USB 2.0 recommended)
1GB RAM or higher recommended
2GB free HDD space (3GB or larger recommended)

Spesifikasi Berat Produk

Berat Bersih 1,66 Kg
Berat Kotor 5 Kg
Dimensi Produk (P) 26,3 x (L) 12,7 x (T) 14,8 cm
Dimensi Kardus Luar (P) 37 x (L) 25 x (T) 30 cm

Downloads

Driver Scanner :
 SmartOffice PS188 Driver for Windows XP-11
Size : 1 GB (updated 1 Dec 2021)
Leaflet :

Size : 0.95 MB (updated 12 Jan 2021)
