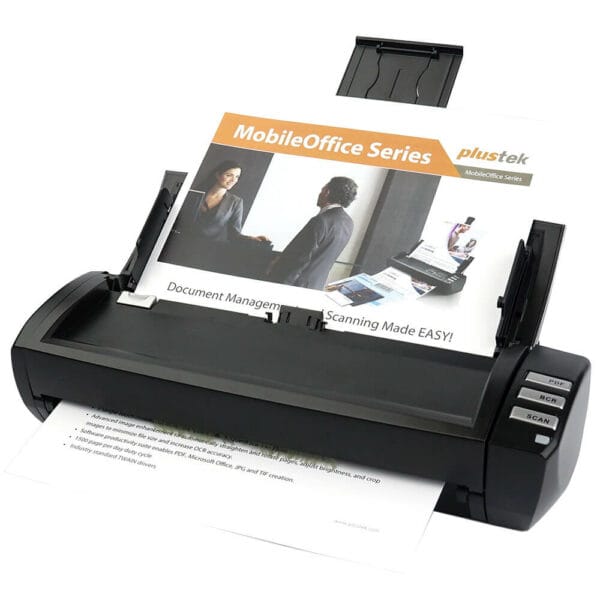

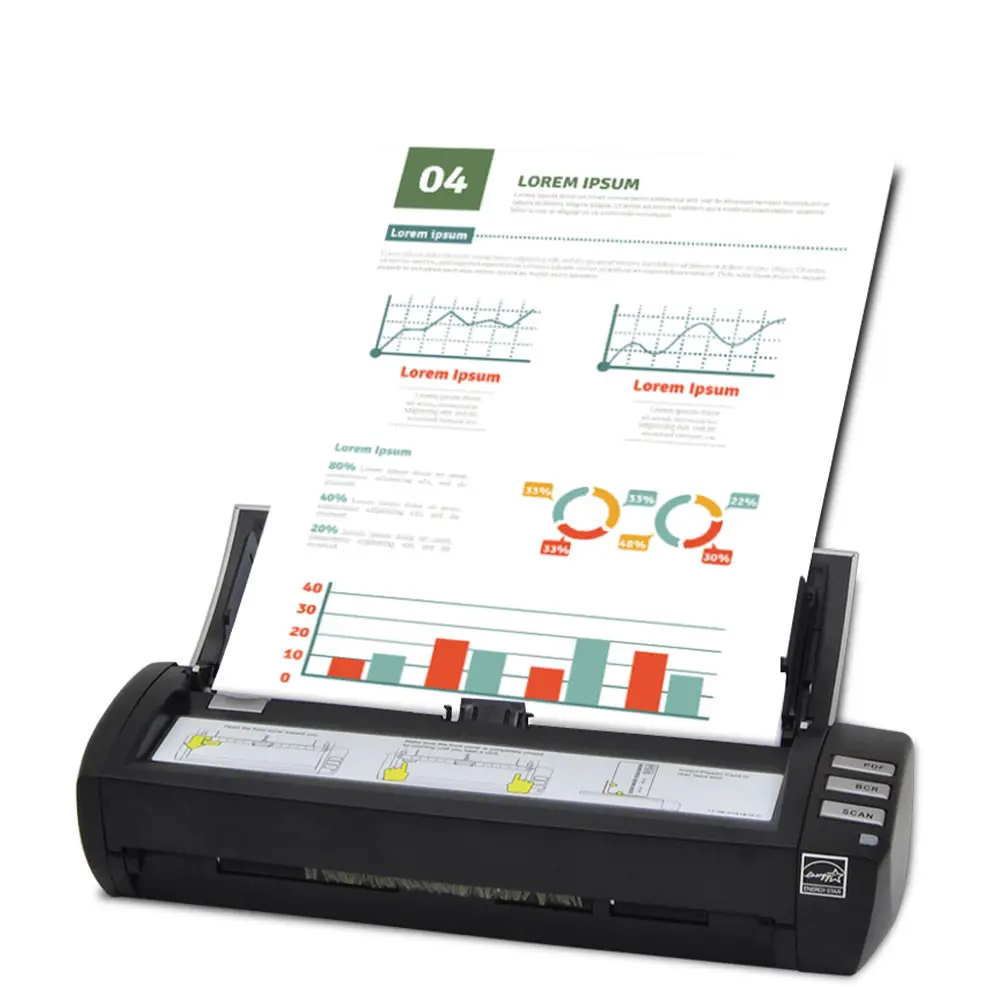

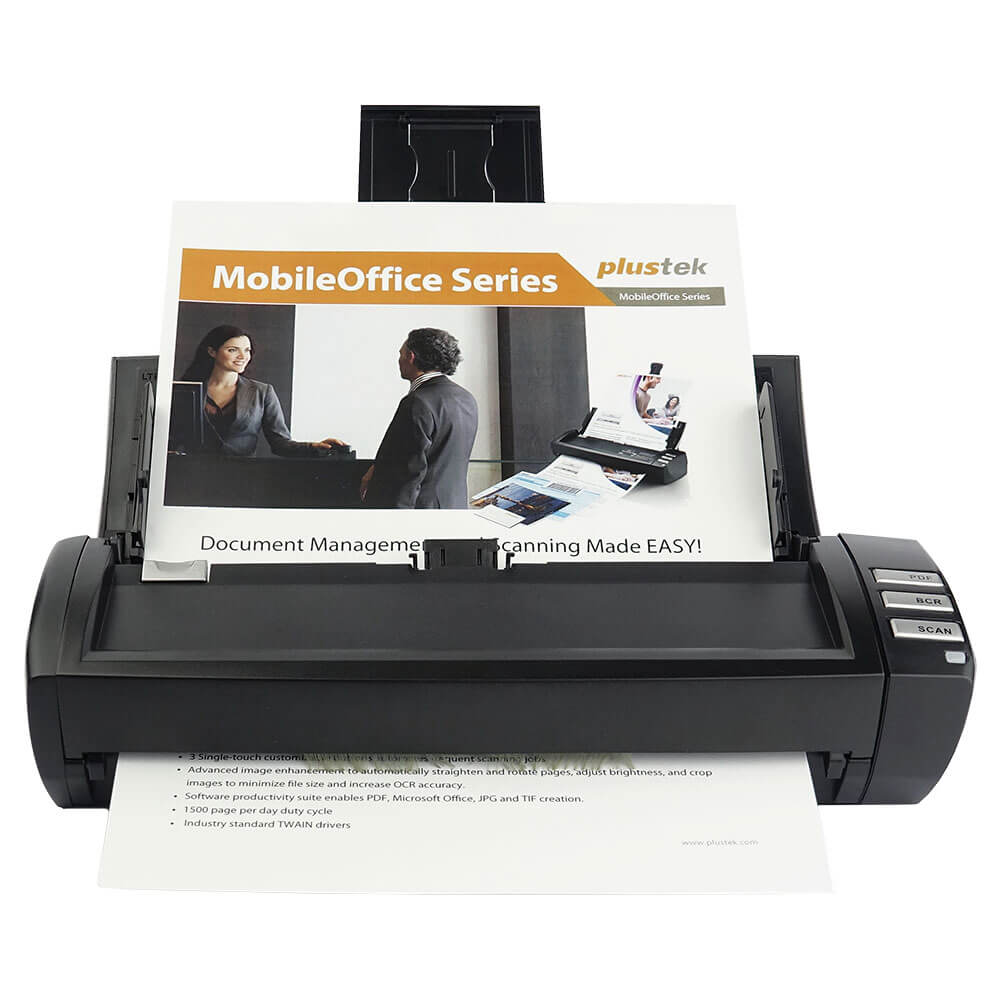

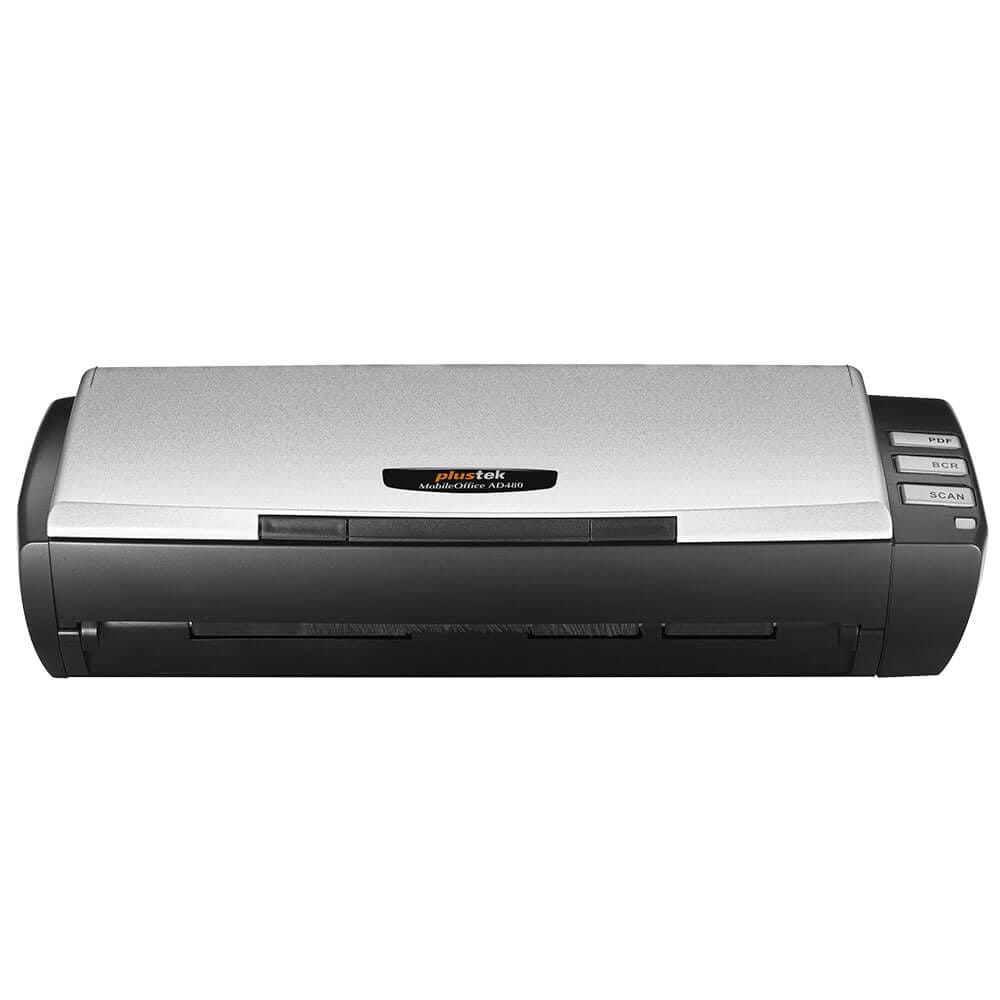

MobileOffice AD480

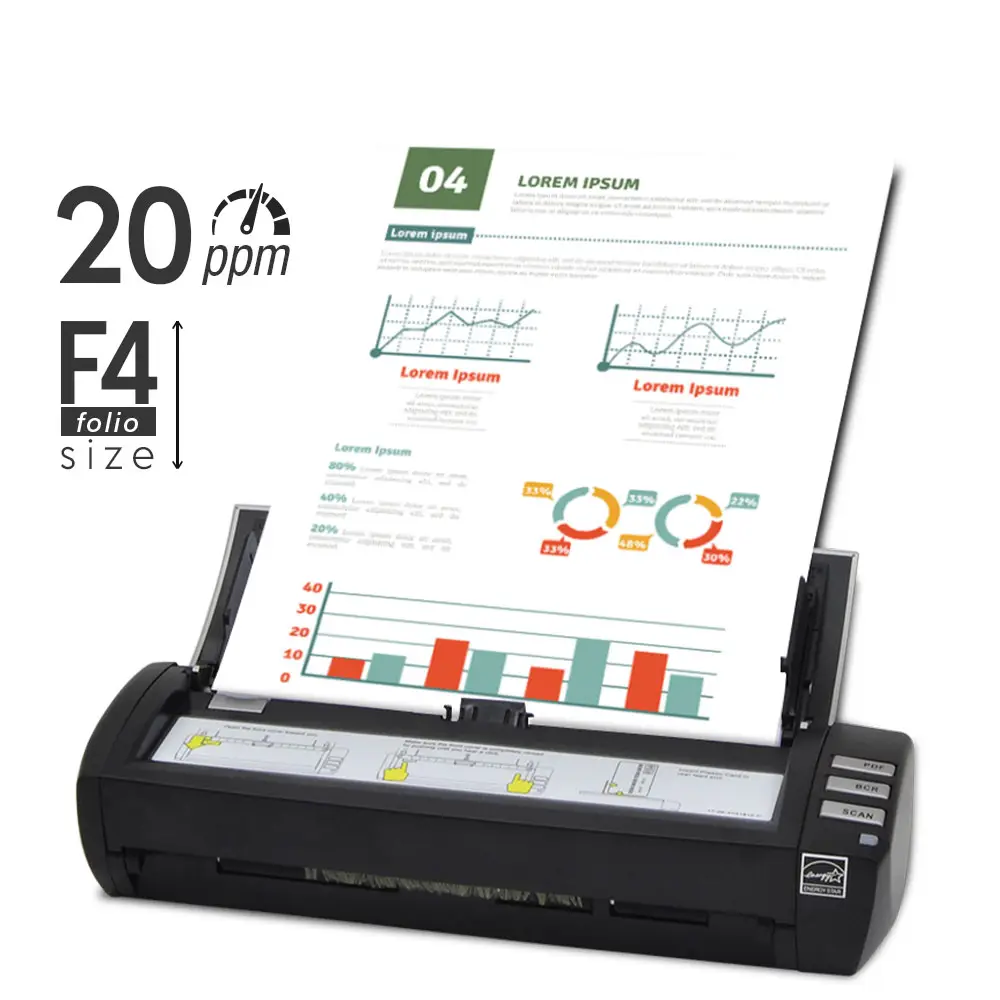

  • High speed: 20ppm Grayscale/20ppm colour

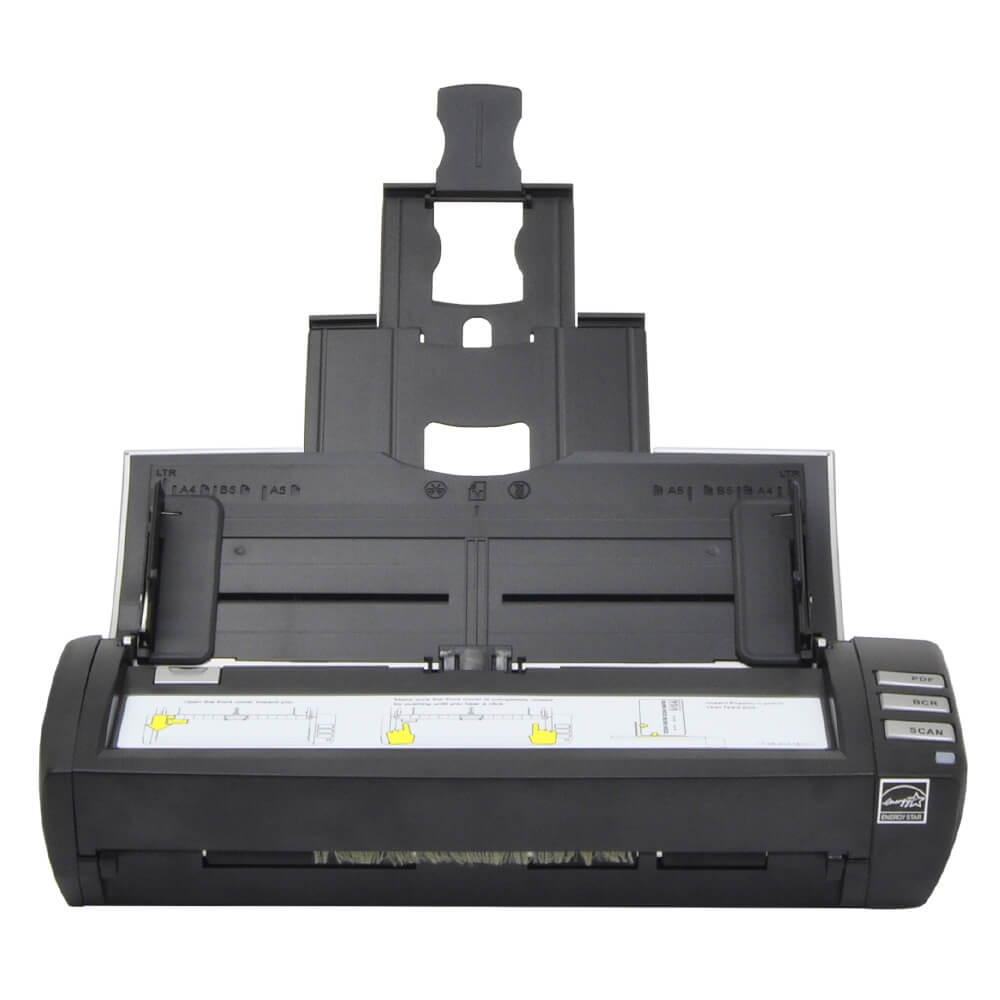

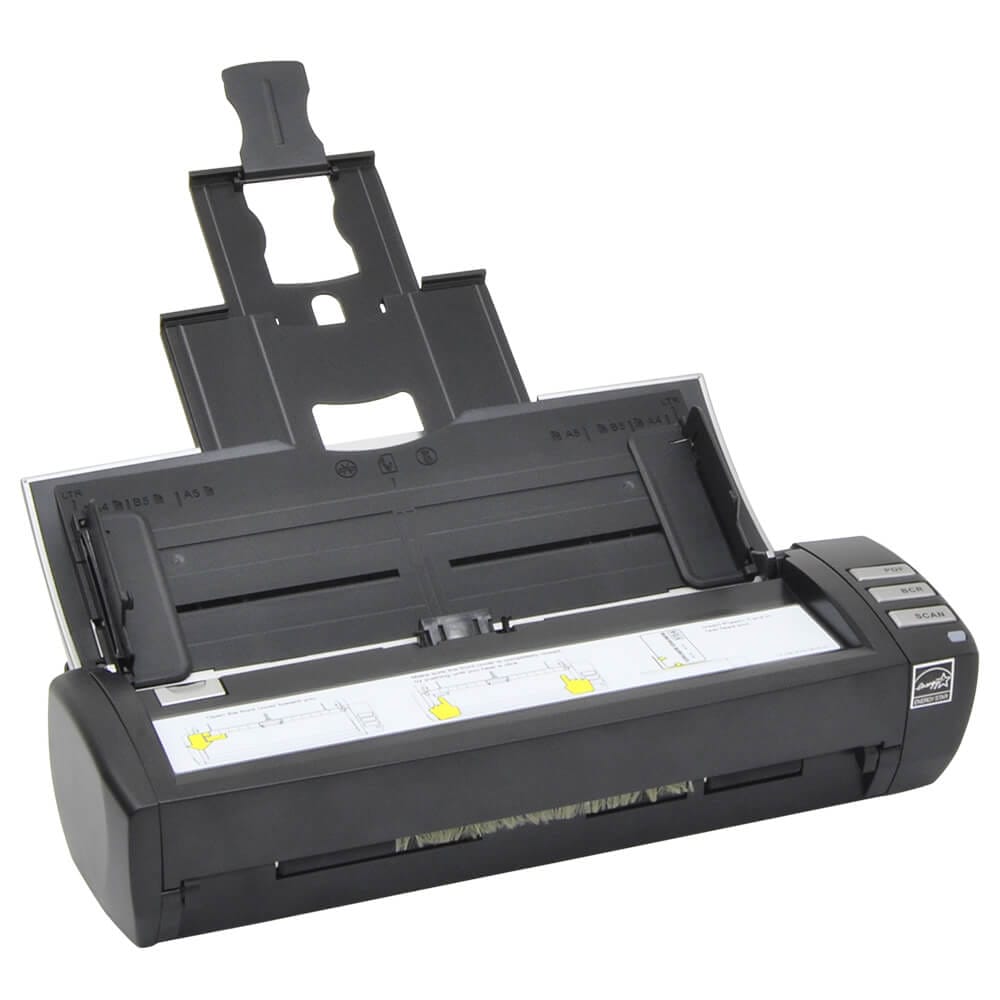

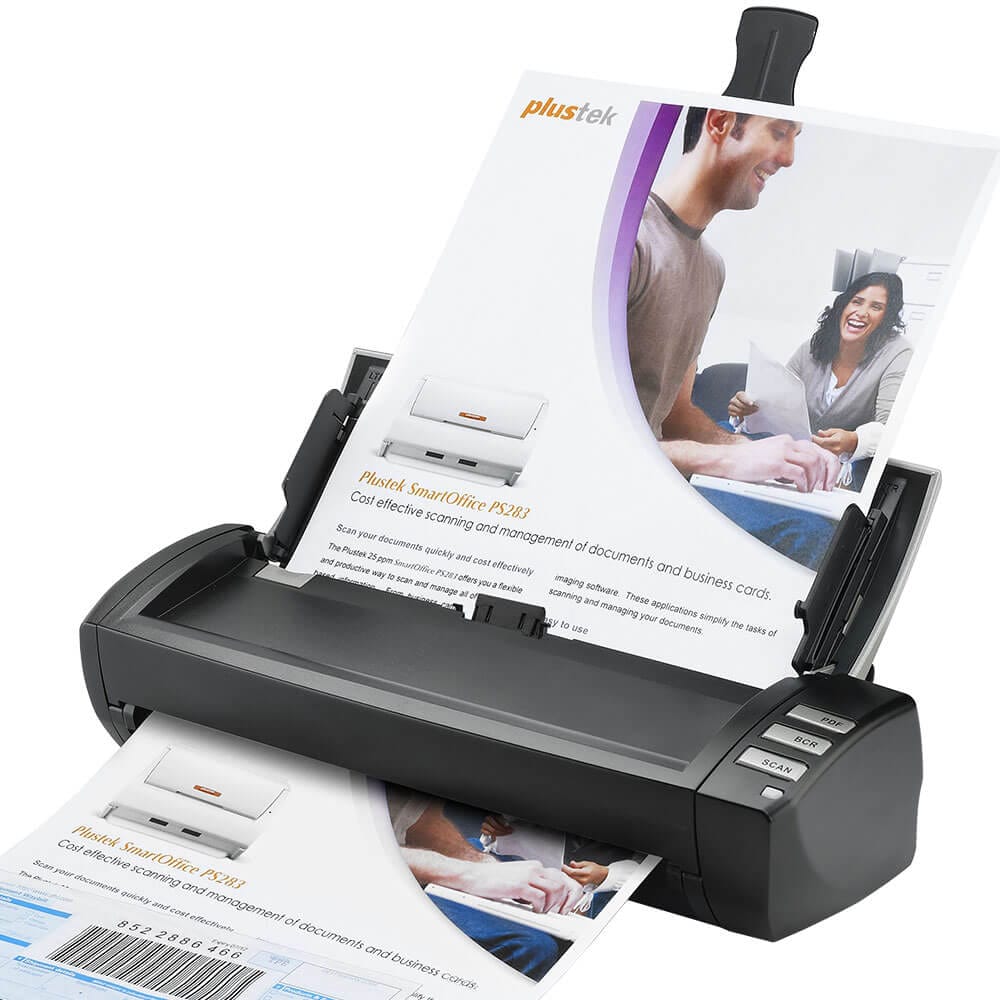

  • Productive mobile scanning with 20-sheet ADF
  • Supports ID and embossed card scanning
  • Ultra compact and robust for mobility
  • Versatile software including scanning to cloud apps

Description

The AD480 scanner is versatile and robust mobile scanner in its class, designed for home and small offices. With double-sided scanning up to 20 ppm / side and a 20-page ADF capacity users can scan efficiently, in the office or at home. It has a strong robust design for handling up to 500 documents a day. It delivers speed, image quality, and great paper handling, along with easy integration and compatibility with document imaging applications.

Ultra compact for space saving and mobility With a smart, compact design, the ultra-lightweight AD480 is ideal for both users on the front desk and in the office. Its small footprint allows the scanner to fit comfortably into travel cases and onto busy desktops. True plug-and-scan is possible by simply connecting the scanner to any PC. Plustek’s unique built in DocAction software is ready to go – without any need to load drivers or application software.

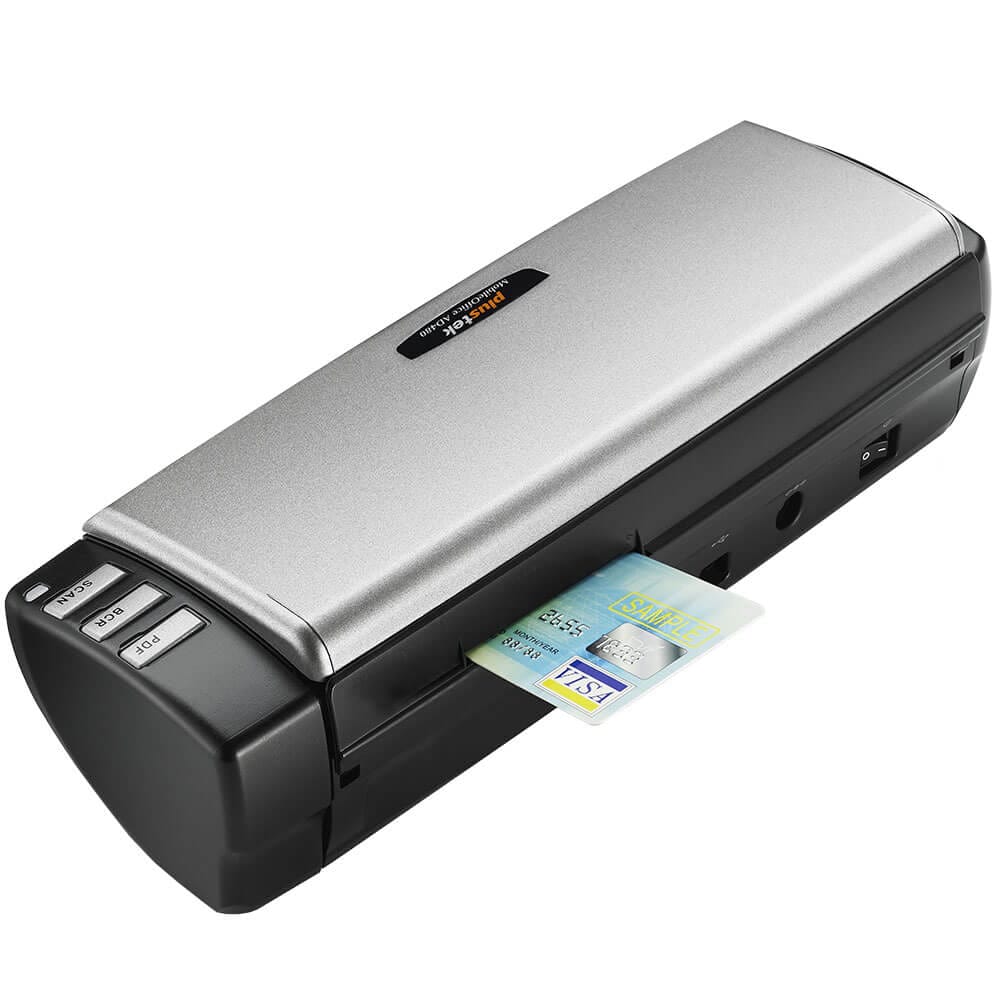

Dedicated ID card scanner With card scanning becoming increasingly important for ID authentication, the AD480 has its own dedicated card scanning slot. A sophisticated switchback feed mechanism ensures it quickly scans ID and embossed cards.

Enhanced image processing Advanced technology allows for high precision scanning up to 600dpi. Numerous features such as Auto Color Detection, Auto Rotate for Text Orientation, Multi-image output, Remove Blank Pages, Remove Punch Holes, Remove Background, Denoise, Character Enhancement are included, so there’s no need to pre-sort your documents before scanning. Simply load and then let the AD480 do the work for you. An optical resolution of 600dpi, plus all the latest image processing features, ensures outstanding quality results every time.

Device Features Auto Deskew, Auto Crop, Auto Size for Page Detection, Gamma, Contrast, Brightness, Colour Dropout (RGB), Image Edge Fill, Preview, Page Size, Scan Mode, Multi-image Output, Job Function, Merge Page/Split Page, Card Scanning Mode, Outputs scanned documents in a variety of formats such as PDF, JPEG and TIFF formats. It can also recognize text using OCR and create multi-page pdfs with automatic document feeders.

● Auto Threshold

Automatically thresholds the current image into a binary black and white image

● Auto Rotate

Automatically rotates document based on the contents of the document.

● Auto Crop & Deskew

Automatically straightens and crops image to the documents actual size.

● Auto Mode

Automatically detects document color and scans document in color, grayscale or black & white mode.

● Multi-Image Output

Scans and saves documents in 2 or 3 color modes at same time

● Color Dropout

Removes red, green or blue color when scanning forms.

● Blank Page Removal

Automatically removes blank pages without manual editing

Specification



TypeAutomatic Document Feeder (ADF)
Image SensorCIS x 2
Light SourceLED
Optical Resolution600 dpi
Hardware Resolution600 x 600 dpi
Scan ModesColor: 48-bit Input; 24-bit Output
Grayscale: 16-bit Input; 8-bit Output
B/W: 1-bit
ADF Capacity20 Sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
6 Sheets (Business Card)
Scanning Speed20 ppm / 44 ipm (Color, 200 dpi, A4)
20 ppm / 44 ipm (B/W,Grayscale, 200 dpi, A4)
Scanning Area (W x L)ADF:
Maximum: 216 x 914.4 mm (8.5″ x 36″)
Minimum: 12.7 x 12.7 mm (0.5″ x 0.5″)
Scan: Name Card, A5, Quarto, Letter, A4, Folio (F4), Legal
Cardslot:
Maximum: 90.9 x 105 mm (3.58″ x 4.13″)
Minimum: 12.7 x 12.7 mm (0.5″ x 0.5″)
Acceptable Paper Sizes (W x L)ADF:
Maximum: 216 x 914.4 mm (8.5″ x 36″)
Minimum: 50.8 x 50.8 mm (2″ x 2″)
Cardslot:
Maximum: 90.9 x 105 mm (3.58″ x 4.13″)
Minimum: 50.8 x 50.8 mm (2″ x 2″)
Acceptable Paper Weight (Thickness)Paper: up to 0.4 mm or 50 g/㎡ to 120 g/㎡
Plastic card: Non-Embossed up to 0.76 mm & Embossed up to 1.24 mm (ISO 7810)
Action ButtonPDF, BCR, Scan
Power SupplyAC adapter: 24 V / 0.75 A

InterfaceUSB 2.0
Net Weight1.3 Kgs (2.87 Lbs)
Dimensions (W x D x H)98 x 288.5 x 75 mm (11.36″ x 3.8″ x 2.96″)
ProtocolTWAIN compliant
OSWindows XP, Vista, 7, 8, 10

Hardware RequirementsPentium® IV 2.0 GHz processor or higher
CD-ROM/ DVD-ROM drive
One available USB 2.0 port
1GB RAM (1GB or higher recommended)
800MB Free HDD space (1GB or larger recommended)



Product Weight Specification

Net Weight1,3 Kg
Bruto Weight3 Kg
Product Dimensions (W x D x H)28,85 x 9,8 x 7,5 cm
Box Dimensions (W x D x H)35 x 16 x 20

Downloads



Driver Scanner :
Icons Windows MobileOffice AD480 Driver for Windows XP-10
Size : 92 mB (updated 22 February 2017)
Leaflet :
Icons-PDF MobileOffice AD480 Leaflet
Size : 1.2 mB (updated 8 March 2017)
