| Scanner Type |
Scanner ADF |
| Image Sensor |
CIS x 2 |
| Light Source |
LED |
| Optical Resolution |
600 dpi |
| Hardware Resolution |
600 x 600 dpi |
| Scan Modes |
Color: 48-bit input, 24-bit output |
| Grayscale: 16-bit input, 8-bit output |
| B/W: 1-bit |
| ADF Capacity |
1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 10 mm (0.4”) |
| 2. 50 sheets (A3, 70 g/㎡ or 18 Lbs) |
| 3. 20 sheets (Business Cards) |
| 4. Plastic Card (Portrait Loading), Max. thickness under 1.2 mm, embossed cards can be scanned. |
| Note: Maximum ADF capacity varies, depending upon paper weight. |
| Scanning Speed |
64 ppm/ 128 ipm (Color mode, 300 dpi, A4 Landscape) |
| 64 ppm/ 128 ipm (Color mode, 200 dpi, A4 Landscape) |
| 48 ppm/ 96 ipm (Color mode, 300 dpi, A4 Portrait) |
| 48 ppm/ 96 ipm (Color mode, 200 dpi, A4 Portrait) |
| 36 ppm/ 72 ipm (Color mode, 300 dpi, A3) |
| 36 ppm/ 72 ipm (Color mode, 200 dpi, A3) |
| Note: Results may vary depending upon your scanning application, computer processor and system memory. |
| Scanning Area (W x L) |
Max: 304.8 x 431.8 mm (12” x 17”) |
| Min: 13.2 x 13.2 mm (0.52” x 0.52”) |
| Long Paper: 304.8 x 5080 mm (12” x 200”) |
| Acceptable Paper Sizes (W x L) |
Max: 304.8 x 431.8 mm (12” x 17”) mm |
| Min: 50.8 x 63.5 mm (2” x 2.5”) |
| Acceptable Paper Weight (Thickness) |
40 to 220 g/㎡ (10 to 58 Lbs) |
| Multi-feed Detection |
With ultrasonic technology |
| Daily Duty Scan ( Sheets ) |
18.000 |
| Roller Lifetime (Scans) |
300,000 |
| Pad Lifetime (Scans) |
300,000 |
| Action Button |
5 Buttons: Power, Up, Down, Cancel, Scan |
| 9 function keys are all customizable. |

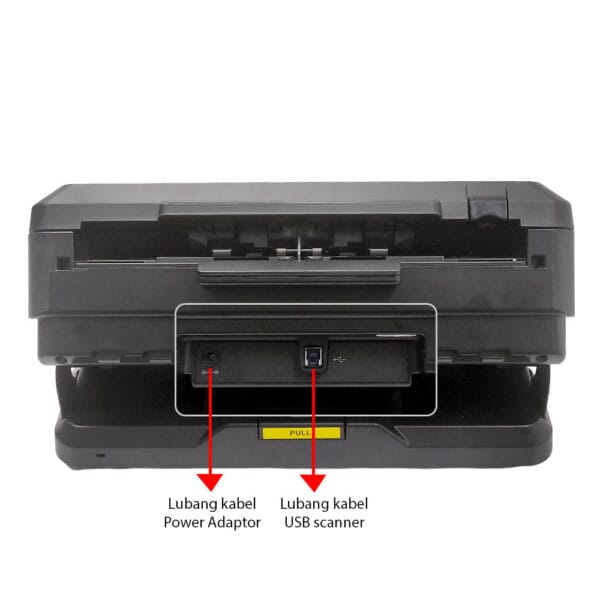

| Power Supply |
24 Vdc/ 1.25 A |
| Interface |
USB 3.2 Gen 1×1 |
| Net Weight |
6.8 Kgs (14.99 Lbs) |
| Dimensions (W x D x H) |
405 x 272 x 297 mm (15.95″ x 10.7″ x 11.69″) |
| Protocol |
TWAIN Compliant |
| Operating System |
Windows XP / Vista / 7 / 8 / 10 / 11 |
| Hardware Requirements |
3.2 GHz CPU processor or higher[1] |
| [1]Windows Recommended: 3.2 GHz Intel® Core™ i7 Processor with 4 CPU Cores or higher |
| 4 GB RAM minimum (Recommended: 8 GB or more) |
| 6 GB of hard-disk space for program installation |
| Display dimensions of 1024×768 or greater |

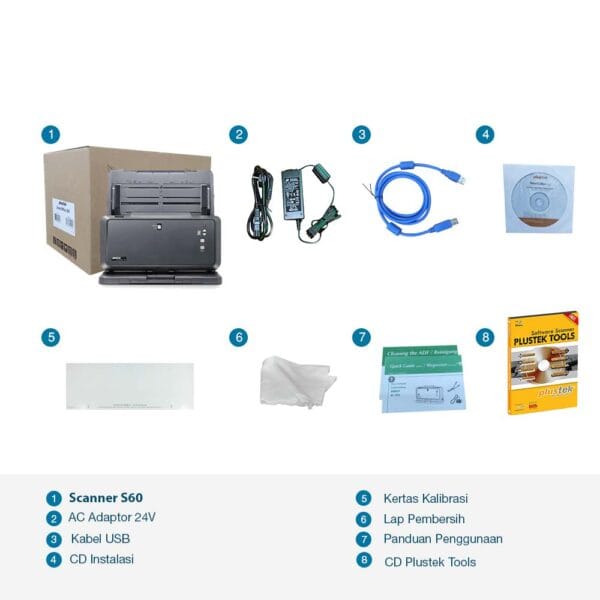

| Bundled Software |
Plustek DocAction |
| Plustek DocTWAIN |
| Built-in OCR |
Plustek OCR (For Windows) |
| (Powered by ABBYY® FineReader®) |
