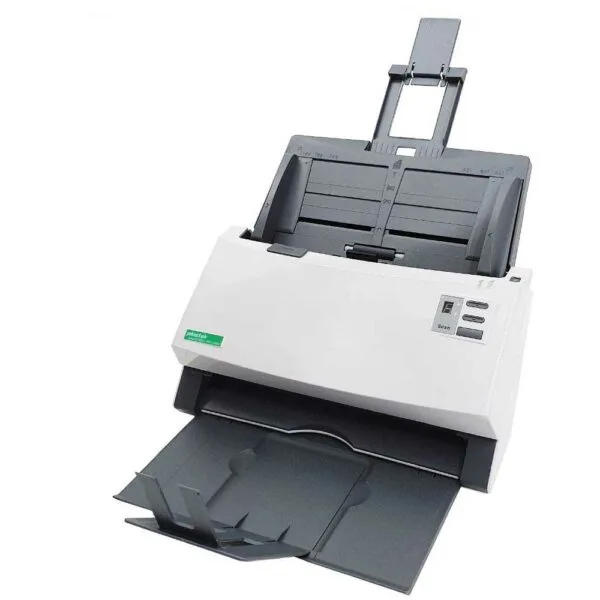

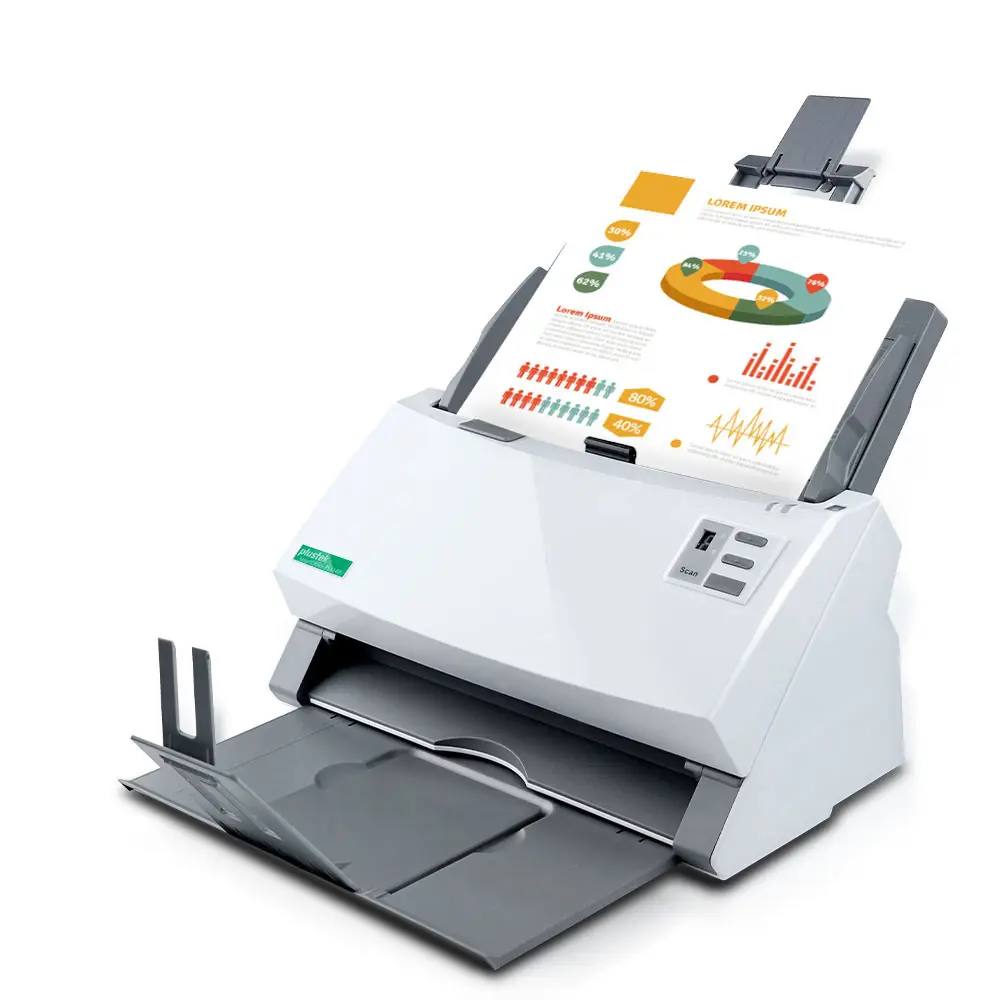

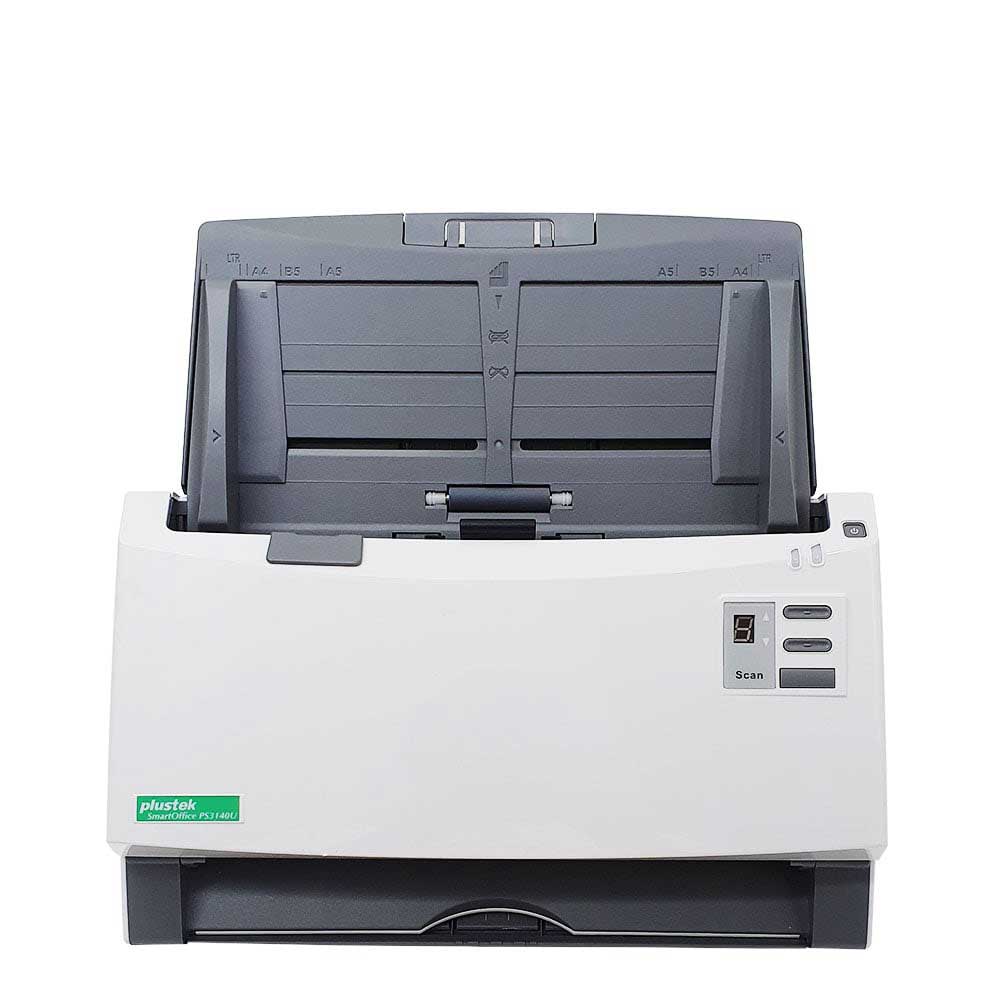

SmartOffice PS3140U

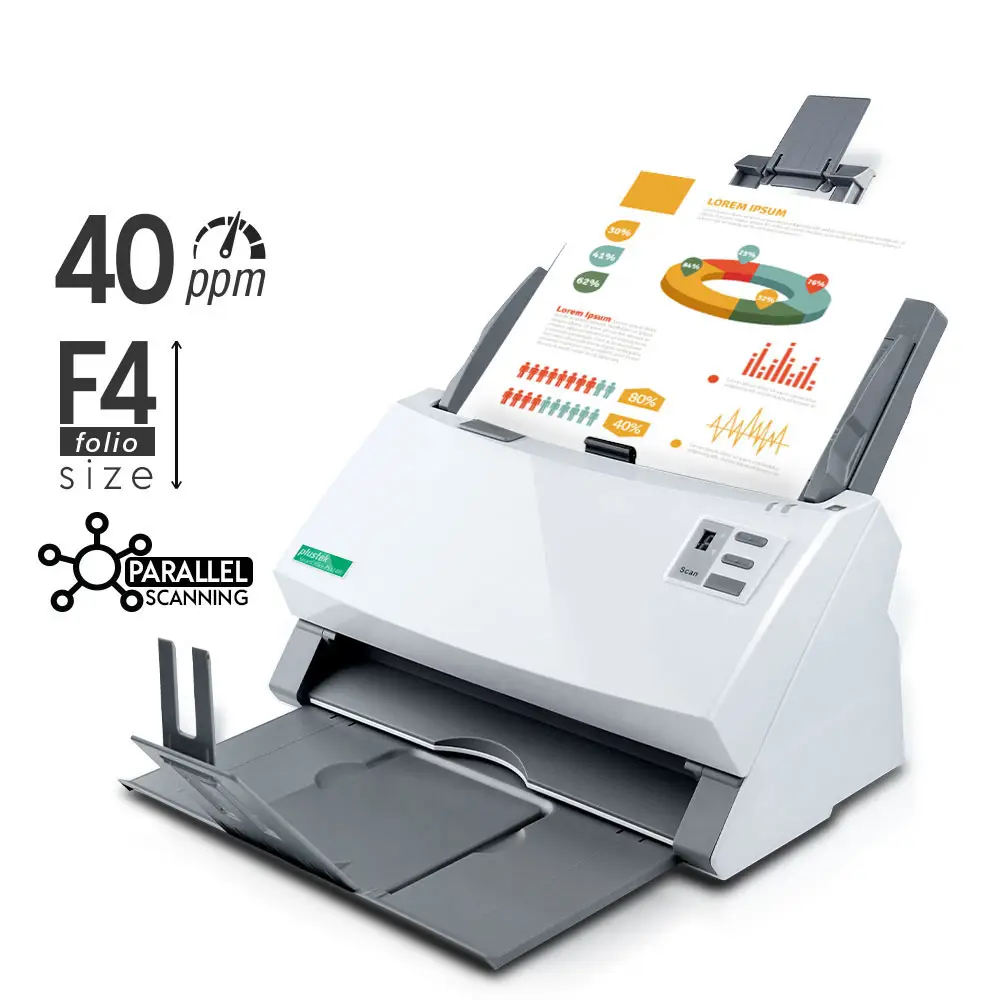

  • 40 PPM / 80 IPM duplex scan in 200 dpi color mode
  • Built-in Ultrasonic function for double feed detection
  • Multiple images output and auto-detect the scan mode of documents
Category: Tags: ,

Enhanced with innovative features, the compact desktop SmartOffice PS3140U features fast scanning speeds, a high daily duty cycle, robust paper handling capabilities, and an ultrasonic double-feed detection with outstanding image quality.

Image Enhancement Technology

Automatically optimize the image by concentrating the dark color, enhancing the bright background and allocating the color distribution. You don’t need to spend time adjusting IP or learning.

Enhance Paper Feeding

With optimized Friction Roller system with advanced composite material, this technology helps the paper feeding process become more smooth and reliable. This not only minimizes the feeding errors, but also help you efficiently finish the process of digitizing documents.



Specification

Type Automatic Document Feeder (ADF)
Image Sensor CIS x 2
Optical Resolution 600 dpi
Multi-feed Detection with Ultrasonic detection
Hardware Resolution 600 x 600 dpi
ADF Capacity 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
2. 30 sheets (Business Cards)
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF ) 40 ppm/ 80 ipm (Grayscale mode, 300 dpi, A4 Portrait)
40 ppm/ 80 ipm (B&W mode, 300 dpi, A4 Portrait)
30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Portrait)
Note: Hasil data bisa berbeda tergantung spesifikasi koomputer.
Scanning Area (W x L) Max: 216 x 5080 mm (8.5” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Scan: Kartu Nama, A5, Kuarto, Letter, A4, Folio (F4), Legal
Acceptable Paper Sizes (W x L) Max: 244 x 5080 mm (9.6” x 200”)
Min: 50.8 x 50.8 mm (2” x 2”)
Acceptable Paper Weight (Thickness) 40 to 220 g/㎡ (10 to 58 Lbs)
Daily Duty Scan ( Sheets ) 4,000
Roller Lifetime (Scans) 300,000
Pad Lifetime (Scans) 100,000
Action Button 4 Buttons: Up, Down, Scan, Standby/td>
9 function keys are all customizable.
Power Supply 24 Vdc/ 1.25 A
Interface USB 2.0 x 1, USB 2.0 (Host) x 1
Net Weight 2.7 Kgs (5.95 Lbs)
Dimensions (W x D x H) 318.7 x 230.7 x 228.3 mm (12.55″ x 9.08″ x 8.99″)
Protocol TWAIN Compliant
OS Windows XP, Vista, 7, 8, 10
Hardware Requirements Pentium IV 2.0 GHz processor (Pentium IV 3.0 GHz processor recommended)
CD-ROM Driver
One available USB Port (USB 2.0 recommended)
1GB RAM or higher recommended
800 MB free HDD space (1 GB or larger recommended)

Downloads

Leaflet Produk:
Driver Scanner:
 Driver SmartOffice PS3140U for Windows XP, Vista, 7, 8, 10
Ukuran : 141 mB (updated 18 August 2018)
