SecureScan X150

  • 1 Second/sheet scanning speed (Color, Full Page passport image capture)
  • 5 Megapixels Optical Resolution
  • Light Source White LED / IR LED / UV LED
  • Can read international standard of passport data writing
  • Scans passports, IDs and other items smaller than A5
  • Suitable for Hospitality, Service Bureau, Immigration


The SecureScan X150 utilizes an image sensor with Visible, UV and IR illuminations, for quick image capturing, OCR text reading, and visual security features authentication, of passports, ID cards, such as drivers licenses, health insurance cards.

A. Completely compliant with ICAO Doc 9303 standards
Supporting TD1/TD2/TD3/TDV document size scanning.

B. Capable of reading Machine Readable Zone, and Visual Zone data
To capture and verify relevant data of all international passports, as well as standard size plastic ID cards, drivers licenses, health insurance cards and other small size documents.

C. 3 light sources: Visible, Infrared (IR) and Ultraviolet (UV)
To meet the rules of each countries on travel documents, like UV overprint and IR drop-out.

D. Auto-Detect of document type, document size, and 2 seconds Quick-Scan with OCR
To reduce check-in time, increase traffic flow and accurate customer profile data. It only takes approximately 2 seconds from scan to show (including photo on screen).

E. Easy to integrate Identity Management Systems
Plustek offers SDKs to system integrators upgrading existing or developing new identity management system.

F. Scalability of extra devices like AFIS & facial recognition via USB hub
User may easily extend recognition system like fingerprint, facial recognition via built-in USB hub; 2 extra USB ports are available.


Light SourceWhite LED / IR LED / UV LED
Image SensorCMOS
Optical Resolution5 Megapixels
Scan ModesColor: 24-bit Input; 24-bit Output
IR: 24-bit Input; 8-bit Output
UV: 24-bit Input; 24-bit Output
Scanning Speed1 sec (Color Mode, Full Page passport image capture)
Scanning Area (W x L)Maximum: 127 x 95 mm (5″ x 3.74″)
Acceptable Paper Sizes (W x L)Maximum: 125 x 88 mm (4.92″ x 3.46″)
Action ButtonDual Auto Detect Sensors
Power SupplyWall Power: 24 Vdc / 0.75A

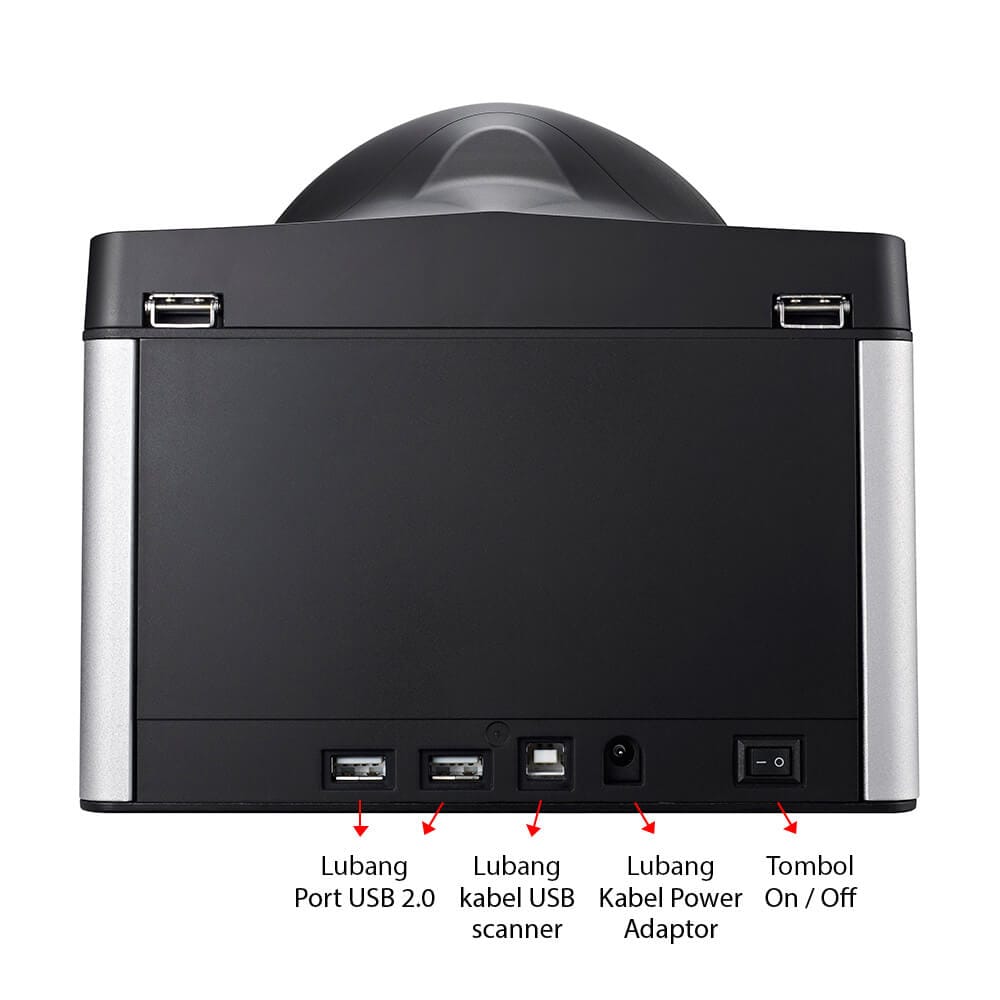

InterfaceUSB 2.0
USB 2.0 Port x 2 (Extension)
Net Weight1.7 Kgs (3.78 Lbs)
Dimensions (W x D x H)Without Cover: 200 x 200 x 119 mm (7.87″ x 7.87″ x 4.69″)
With Cover: 200 x 200 x 190 mm (7.87″ x 7.87″ x 7.48″)
OSWindows XP, Vista, 7, 8, 10
Hardware RequirementsPentiumĀ® IV 1.8 GHz processor (2.4 GHz Recommended)
512 MB RAM (1 GB Recommended)
Request 500 MB Free Space for installing all software
One available USB 2.0 port


Product Weight Specification

Net Weight1.7 kg
Bruto Weightn/a
Product Dimensions (W x D x H)20 x 20 x 19 cm
Box Dimensions (W x D x H)26 x 26 x 29 cm


Driver Scanner :
Icons Windows SecureScan X150 Driver for Windows XP-10
Size : 24.2 mB (updated 16 May 2017)
Leaflet :

Size : 917 kB (updated 18 September 2015)
