Stay Organized
and Digitize on the Go
Simple, Compact, and Lightweight.
A program that converts image files into text files (*.txt). OCR technology was developed so that computers can recognize and translate characters written on physical documents, which can then be saved and edited in digital format (Word/Excel).
equipped with TWAIN driver, supports image processing applications
| Scanner Type | Scanner Portable |
| Image Sensor | CIS |
| Optical Resolution | 600 dpi |
| Hardware Resolution | 600 x 600 dpi |
| Scan Modes | Color: 48-bit input, 24-bit output |
| Grayscale: 16-bit input, 8-bit output | |
| B/W: 1-bit | |
| Scanning Speed | 9 sec (Color Mode, 300 dpi, A4) |
| Scanning Area (W x L) | Maximum: 216 x 910 mm (8.5″ x 36″) |
| Minimum: 12.7 x 12.7 mm (0.5″ x 0.5″) | |
| Scan: Kartu Nama, A5, Kuarto, Letter, A4, Folio (F4) hingga Legal | |
| Acceptable Paper Sizes (W x L) | Maximum: 216 x 910 mm (8.5″ x 36″) |
| Minimum: 74 x 52 mm (2.9″ x 0.98″) | |
| * Place A8 card horizontal | |
| Power Supply | USB Power: 5V / 0.5A |
| Daily Duty Scan ( Sheets ) | 800 |

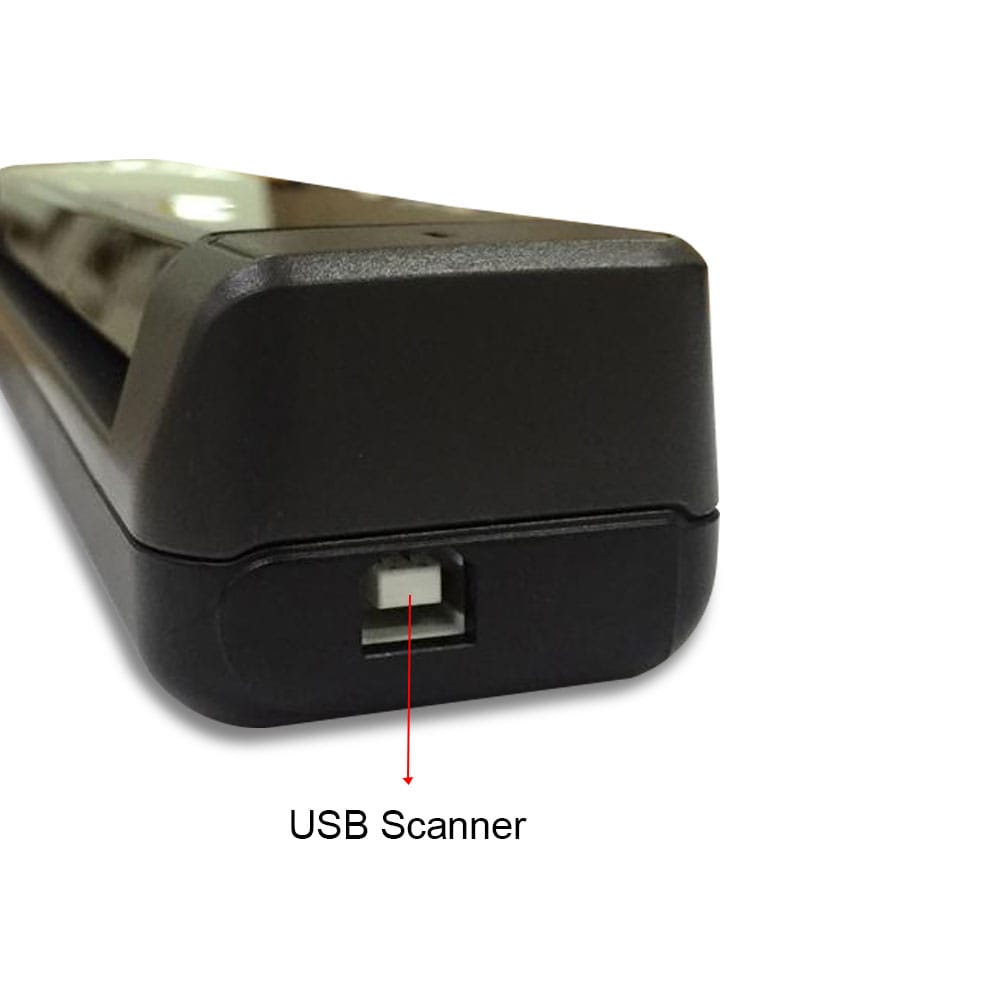

| Interface | USB 2.0 |
| Net Weight | 0.41 Kgs (0.91 Lbs) |
| Dimensions (W x D x H) | 174.5 x 60.5 x 38.5 mm (6.87″ x 2.38” x 1.52”) |
| Protocol | TWAIN Compliant |
| Operating System | Windows XP / Vista / 7 / 8 / 10 / 11 |
| Linux compatibility is only available for system integrators. Please contact | |
| Hardware Requirements | 2.0 GHz CPU processor or higher |
| Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher | |
| 4 GB RAM minimum (Recommended: 8 GB or more) | |
| 6 GB of hard-disk space for program installation Display dimensions of 1024×768 or greater |
|
| Bundled Software | Plustek DocAction |
| Plustek DocTWAIN | |
| Built-in OCR | Plustek OCR (For Windows) |
| (Powered by ABBYY® FineReader®) |
| Net weight | 0,41 Kg |
| Bruto Weight | 1 Kg |

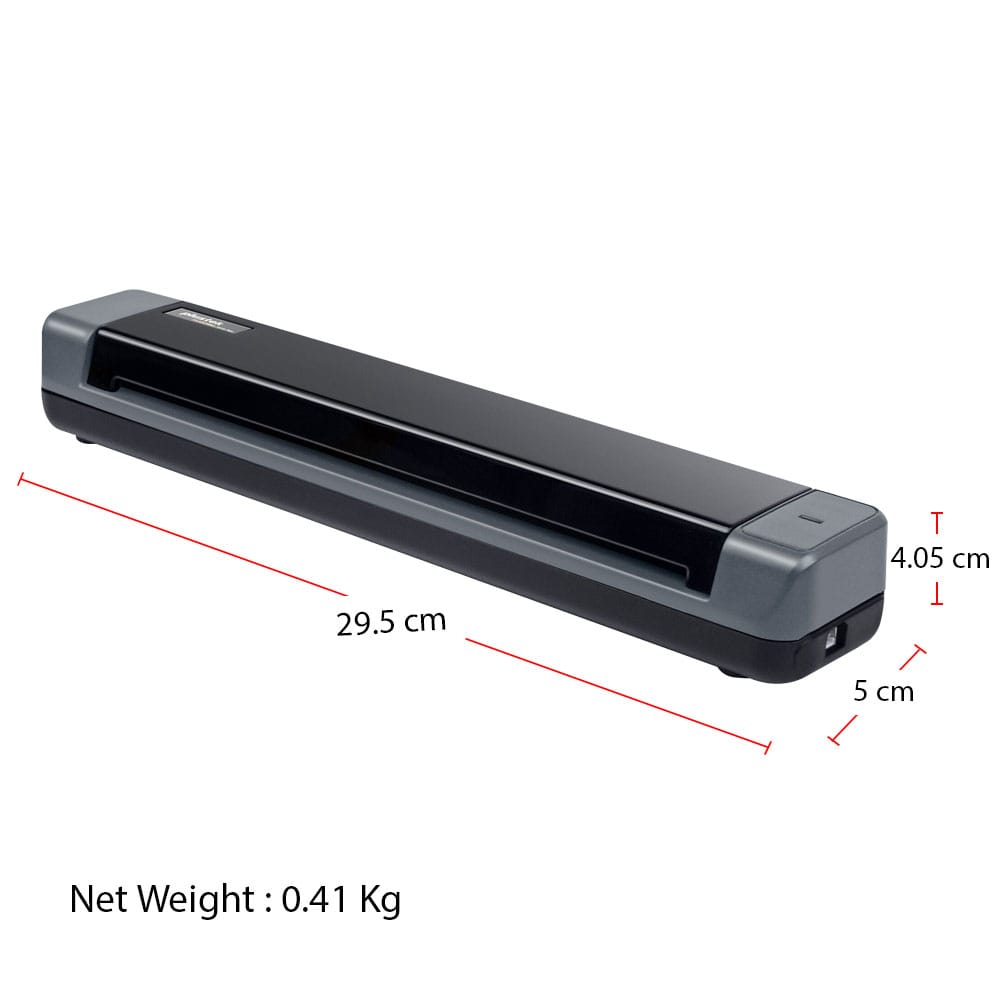

| Product Dimensions (W x D x H) | 29,5 x 5 x 4,05 cm |
| Box Dimensions (W x D x H) | 36 x 14 x 7 cm |
