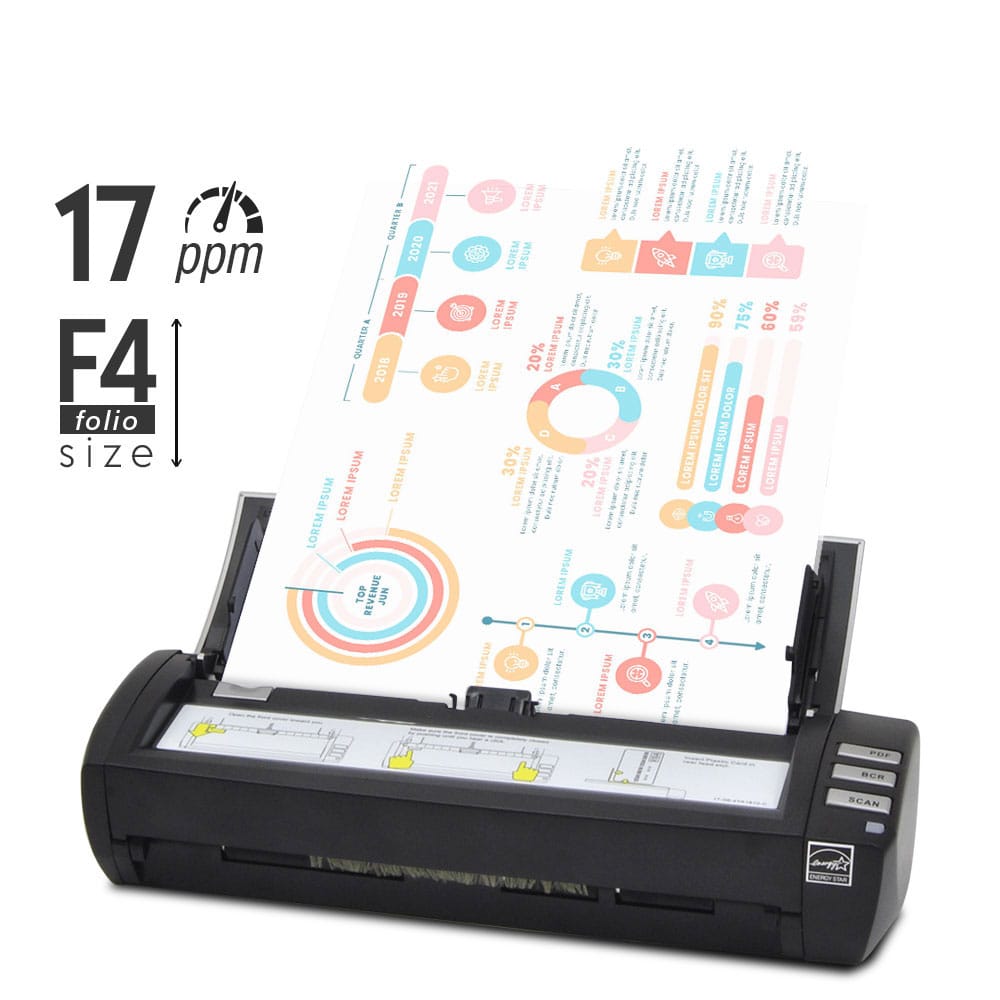

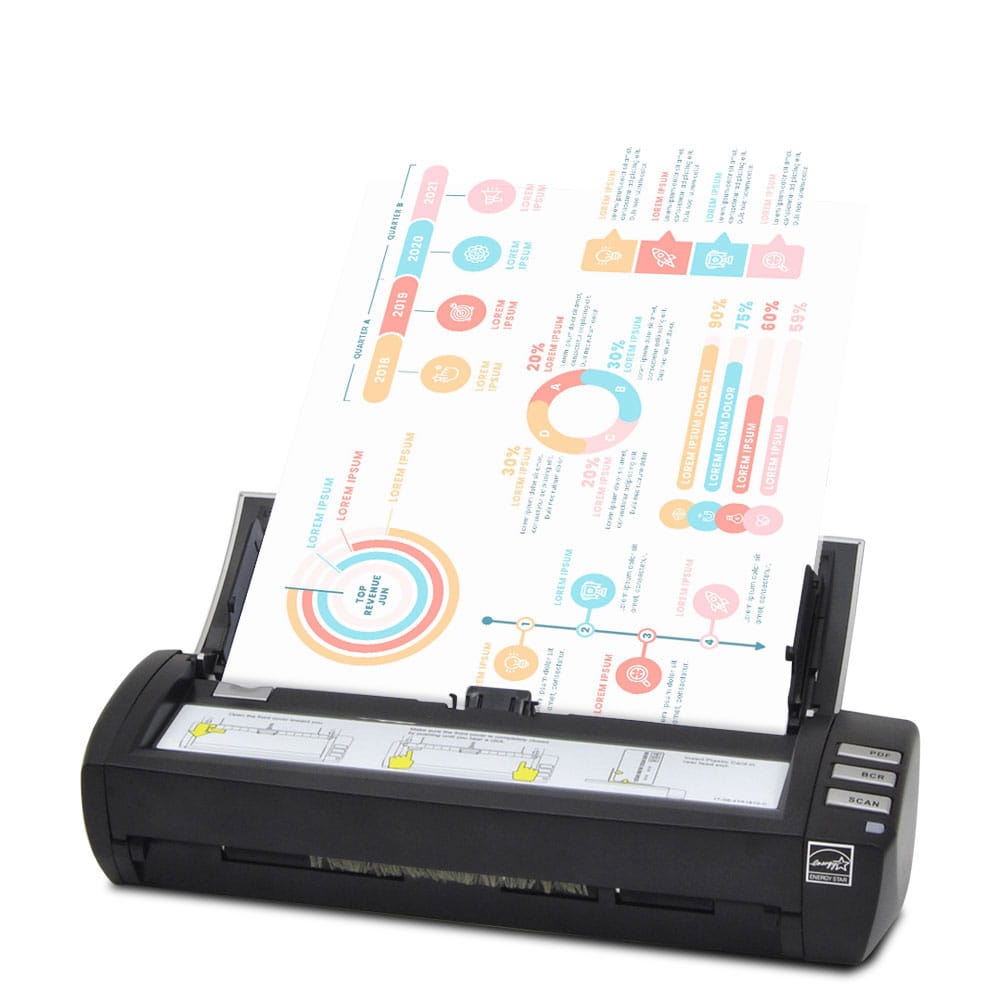

MobileOffice AD470

The AD470 scanner is versatile and robust mobile scanner in its class, designed for home and small offices. With double-sided scanning up to 17ppm and a 20-page ADF capacity users can scan efficiently, in the office or at home. It has a strong robust design for handling up to 1500 documents a day. It delivers speed, image quality, and great paper handling, along with easy integration and compatibility with document imaging applications.

The Useful Support
for Music Industry

The AD470 is compact enough for musicians who go out for practising and demonstration.

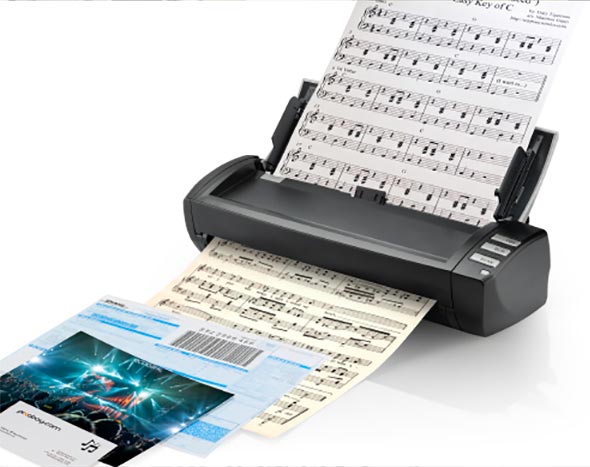

The AD470 can not only scan the plastic card, but also the A4 portrait paper. For instance, you can scan your music sheet anywhere and catalogue the business card of other collaborate entertainment industry.

Specification

Type	Automatic Document Feeder (ADF)
Image Sensor	CIS x 2
Light Source	LED
Optical Resolution	600 dpi
Hardware Resolution	600 x 600 dpi
Scan Modes	Color: 48-bit Input; 24-bit Output
	Grayscale: 16-bit Input; 8-bit Output
	B/W: 1-bit
ADF Capacity	20 Sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
ADF Capacity	6 Sheets (Business Card)
Scanning Speed	18 ppm / 36 ipm (Color, 200 dpi, A4)
Scanning Speed	18 ppm / 36 ipm (B/W,Grayscale, 200 dpi, A4)
Scanning Area (W x L)	ADF:
	Maximum: 216 x 914.4 mm (8.5″ x 36″)
	Minimum: 12.7 x 12.7 mm (0.5″ x 0.5″)
	Scan: Name Card, A5, Quarto, Letter, A4, Folio (F4), Legal
	Cardslot:
	Maximum: 90.9 x 105 mm (3.58″ x 4.13″)
	Minimum: 12.7 x 12.7 mm (0.5″ x 0.5″)
Acceptable Paper Sizes (W x L)	ADF:
	Maximum: 216 x 914.4 mm (8.5″ x 36″)
	Minimum: 50.8 x 50.8 mm (2″ x 2″)
	Cardslot:
	Maximum: 90.9 x 105 mm (3.58″ x 4.13″)
	Minimum: 50.8 x 50.8 mm (2″ x 2″)
Acceptable Paper Weight (Thickness)	Paper: up to 0.4 mm or 50 g/㎡ to 120 g/㎡
Acceptable Paper Weight (Thickness)	Plastic card: Non-Embossed up to 0.76 mm & Embossed up to 1.24 mm (ISO 7810)
Action Button	PDF, BCR, Scan
Power Supply	AC adapter: 24 V / 0.75 A
Power Supply
Interface	USB 2.0
Net Weight	1.3 Kgs (2.87 Lbs)
Dimensions (W x D x H)	98 x 288.5 x 75 mm (11.36″ x 3.8″ x 2.96″)
Protocol	TWAIN compliant
OS	Windows XP, Vista, 7, 8, 10
OS
Hardware Requirements	Pentium® IV 2.0 GHz processor or higher
	CD-ROM/ DVD-ROM drive
	One available USB 2.0 port
	1GB RAM (1GB or higher recommended)
	800MB Free HDD space (1GB or larger recommended)
