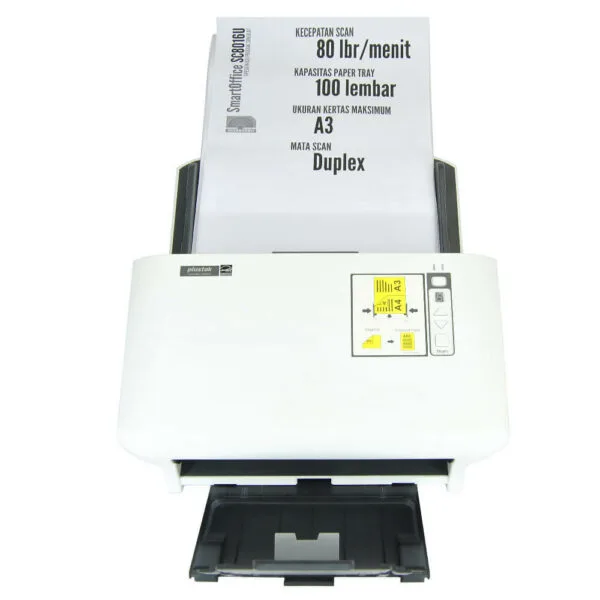

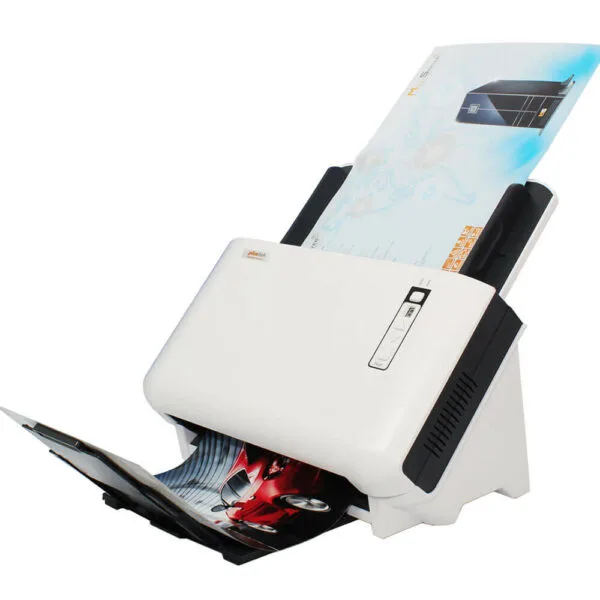

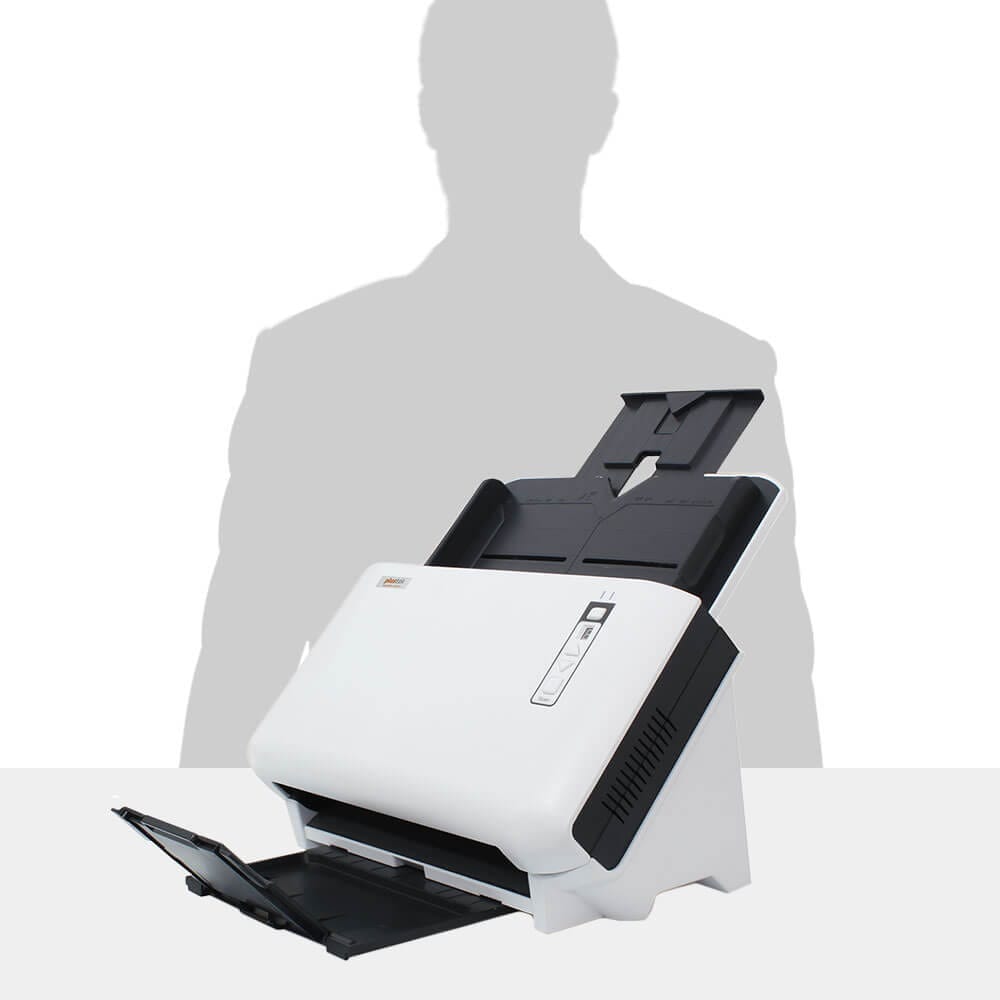

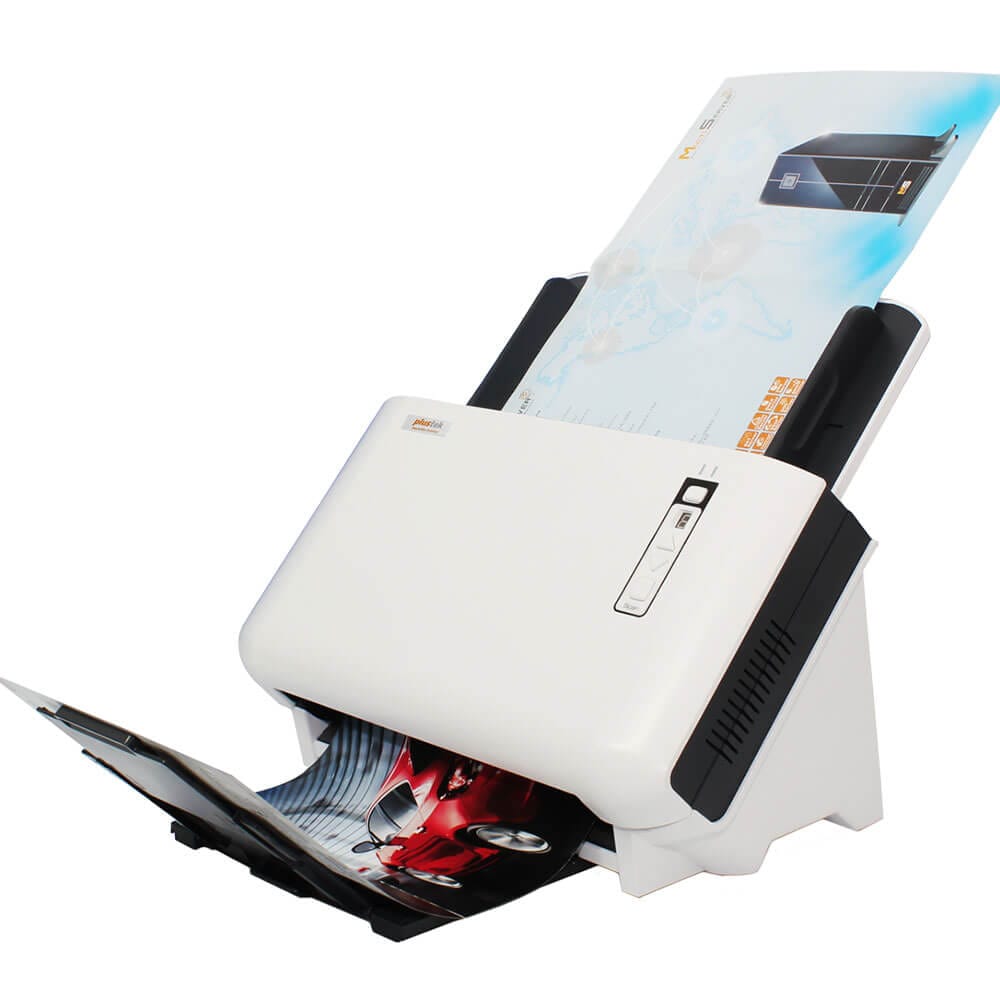

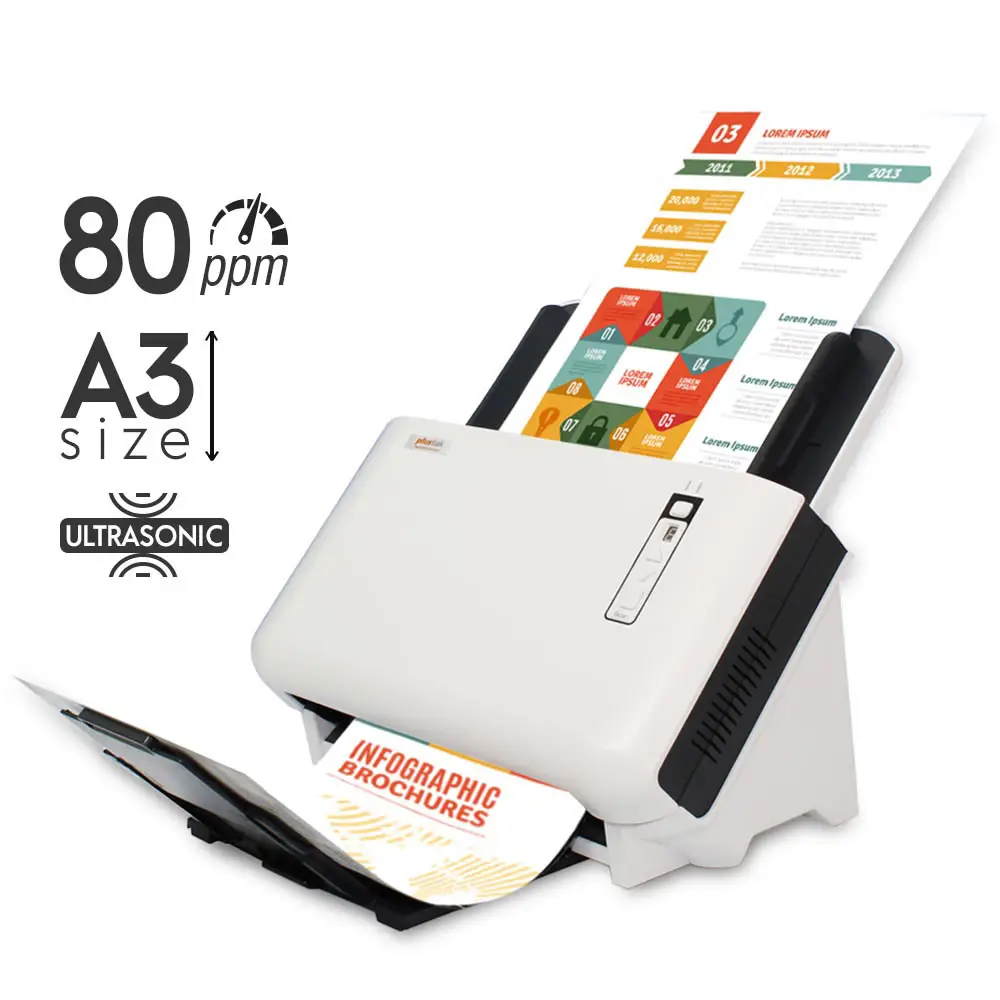

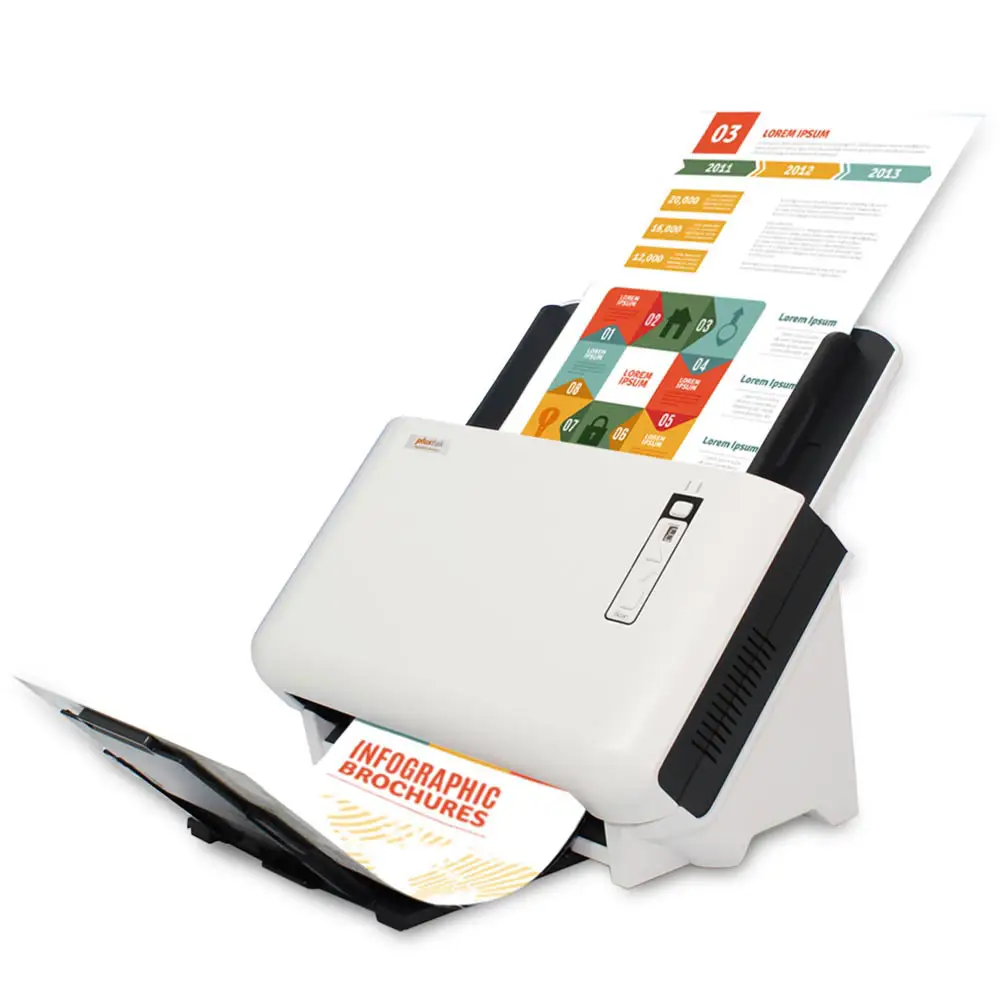

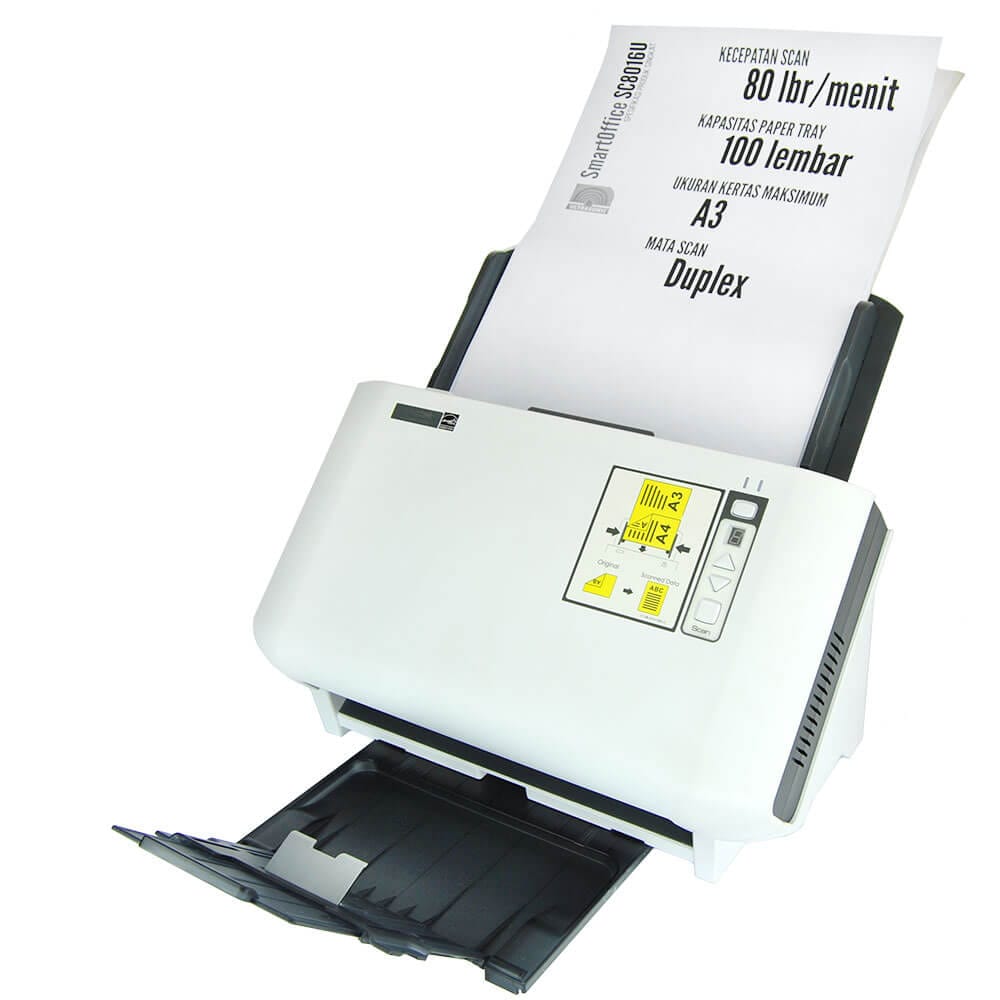

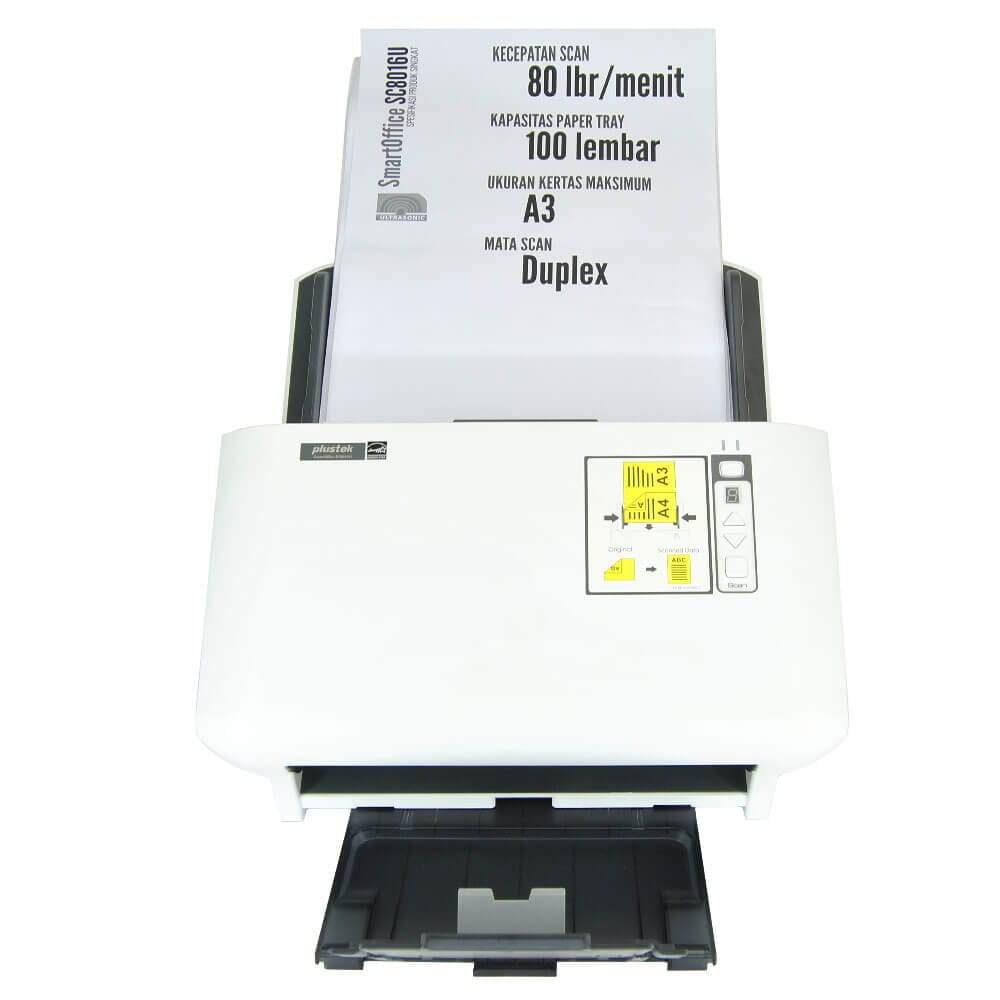

SmartOffice SC8016U

  • 80 PPM / 160 IPM duplex scan in 300 dpi grayscale mode
  • A3 Automatic Document Feeder
  • Built-in Misfeed ultrasonic detection
  • Multiple images output and auto-detect the scan mode of documents

Description

A departmental class A3-sized document scanner that features 80ppm (160 ipm) scan speed, 100 sheet feeder and 8,000 page per day duty cycle.

Performance – Fast, large feeder, high daily duty cycle

Featuring a scan speed of 80 pages per minute, 160 images per minute in duplex mode, a 100 sheet feeder and a daily duty cycle of 8,000 pages per day, the SmartOffice SC8016U is designed for applications requiring frequent scanning of large document batches

Productivity – Handles a wide range of paper and card with no sorting

The SmartOffice SC8016U scans mixed batches of documents without the need for separating or sorting. Embossed cards, such as IDs or driver licenses, and any sized paper document up to A3 size and 200” long can simply be stacked in the 100 sheet feeder. The SmartOffice SC8016U’s paper handling system coupled with Plustek’s advanced image processing provides you with automatically sized and exported images or PDFs. SmartOffice SC8016U’s A3 sized feeder easily handles documents from 2″x2″ to 11.69″x200″

Easy-to-Use Single-touch customizable button automates up to 9 frequent scanning jobs (e.g., Scan to PDF, Scan to file, email, network share, copy, etc.) The innovative automatic wake-up function turns the scanner on as soon as documents are placed in the feeder.

Intelligent Misfeed Function

The ultrasonic sensor detects double feeding of original documents during scanning. The ultrasonic function can be turned off when scanning document with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thickness. Thanks to double-feed prevention, optimum reliability is assured even when scanning high volumes of documents.

Compatible with most imaging applications

Industry standard TWAIN and WIA drivers combined with TIF, JPG, PDF and Microsoft Office file formats ensure compatibility with thousands of scanning and imaging programs. ABBYY FineReader Sprint is included to easily create and manage searchable PDFs at the touch of a button. Built in image processing ensures the highest image quality, reduces rescans, increases OCR accuracy and now includes automatic color detect.

Responsible – Saves Energy

The SmartOffice SC8016U is environmentally responsible and easy to use at the same time thanks to its ENERY STAR certification, low power LED illumination technology and power-saving function. The SmartOffice SN8016U also features auto wake up that enables users to simply place the paper in the scanner and wake up the scanner from sleep / stand-by mode.

Features The SmartOffice SC8016U has following features:

● Auto Threshold

Automatically thresholds the current image into a binary black and white image.

● Auto Rotate

Automatically rotates document based on the contents of the document.

● Auto Crop & Deskew

Automatically straightens and crops image to the documents actual size

● Auto Mode

Automatically detects document color and scans document in color, grayscale or black & white mode

● Multi-Image Output

Scans and saves documents in 2 or 3 color modes at same time

● Color Dropout

Removes red, green or blue color when scanning forms

● Blank Page Removal

Automatically removes blank pages without manual editing.

Specification



TypeAutomatic Document Feeder (ADF)
Image SensorCCD Sensor x 2
Optical Resolution600 dpi
Hardware Resolution600 x 600 dpi
ADF Capacity1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 10 mm (0.4”)
2. 50 sheets (A3, 70 g/㎡ or 18 Lbs)
3. 20 sheets (Business Cards)
4. Plastic Card (Portrait Loading), Max. thickness under 1 mm, embossed cards can be scanned.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF )80 ppm/ 160 ipm (Grayscale/ B&W mode, 300 dpi, A4 Landscape)
45 ppm/ 90 ipm (Color mode, 200 dpi, A4 Landscape)
30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Landscape)
Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L)Max: 297 x 5080 mm (11.69” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Scan: Name Card, A5, Quarto, Letter, A4, Folio (F4), Legal, A3
Acceptable Paper Sizes (W x L)Max: 305 x 5080 mm (12” x 200”)
Min: 50.8 x 63.5 mm (2” x 2.5”)
Acceptable Paper Weight (Thickness)40 to 220 g/㎡ (10 to 58 Lbs)
Daily Duty Scan ( Sheets )8,000
Roller Lifetime (Scans)300,000
Pad Lifetime (Scans)50,000

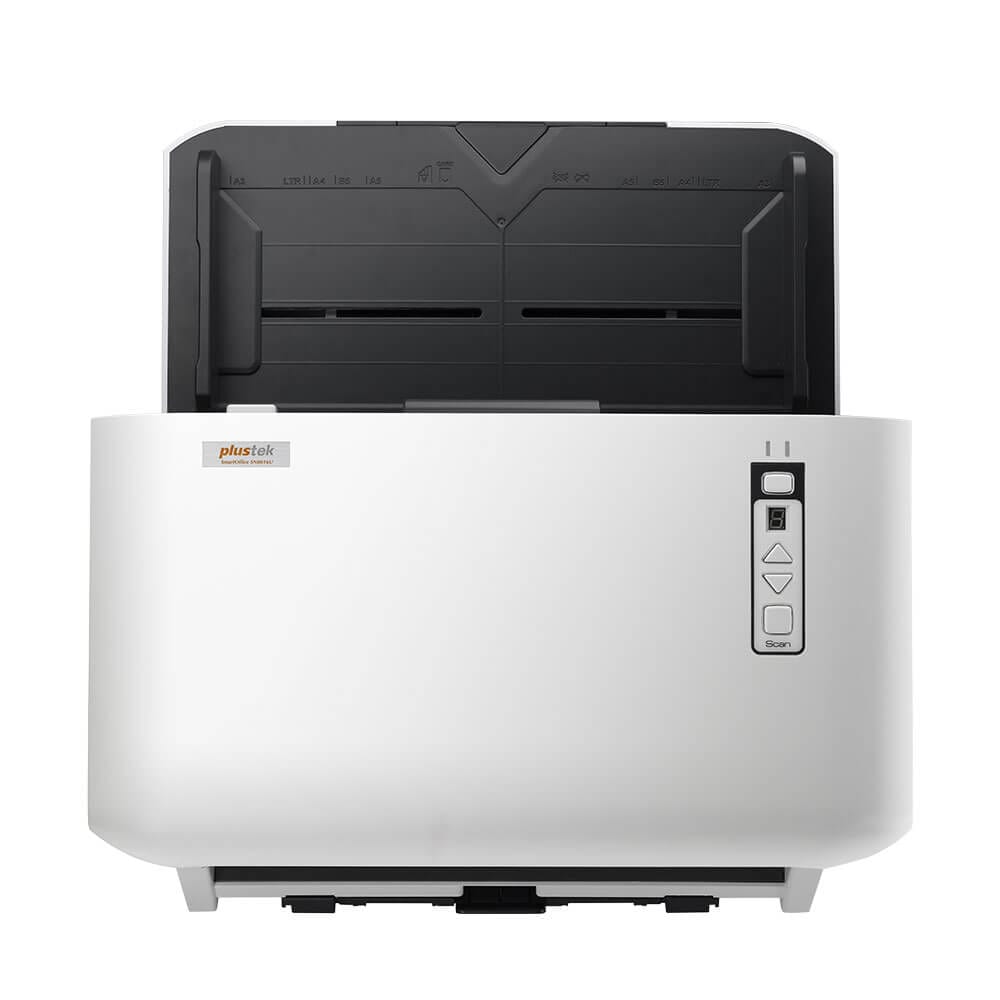

Action Button4 Buttons: Up, Down, Scan, Standby
9 function keys: all customizable.
Power Supply24 Vdc/ 2.7 A
InterfaceUSB 2.0
Net Weight9 Kgs (19.8 Lbs)
Dimensions (W x D x H)436 x 262 x 266 mm (17.16″ x 10.31″ x 10.47″)
ProtocolTWAIN Compliant
OSWindows XP, Vista, 7, 8, 10
Hardware RequirementsPentium IV 3.2 GHz processor
CD-ROM Driver
One available USB Port (USB 2.0 recommended)
1GB RAM or higher recommended
800 MB free HDD space (1 GB or larger recommended)
For longer documents/higher resolutions: Pentium IV, 3.2 GHz processor, 3 GB RAM



Product Weight Specification

Net Weight9 Kg
Bruto Weight14 Kg
Product Dimensions (W x D x H)43,6 x 26,2 x 26,6 cm
Box Dimensions (W x D x H)47 x 56 x 52 cm



Downloads



Driver Scanner :
Icons Windows Driver SmartOffice SC8016U for Windows XP-10
Size : 58.8 mB (updated 25 March 2016)
User Guide :
Icons-PDF User Guide SmartOffice SC8016U
Size : 2.2 mB (updated 28 August 2013)
Leaflet :
