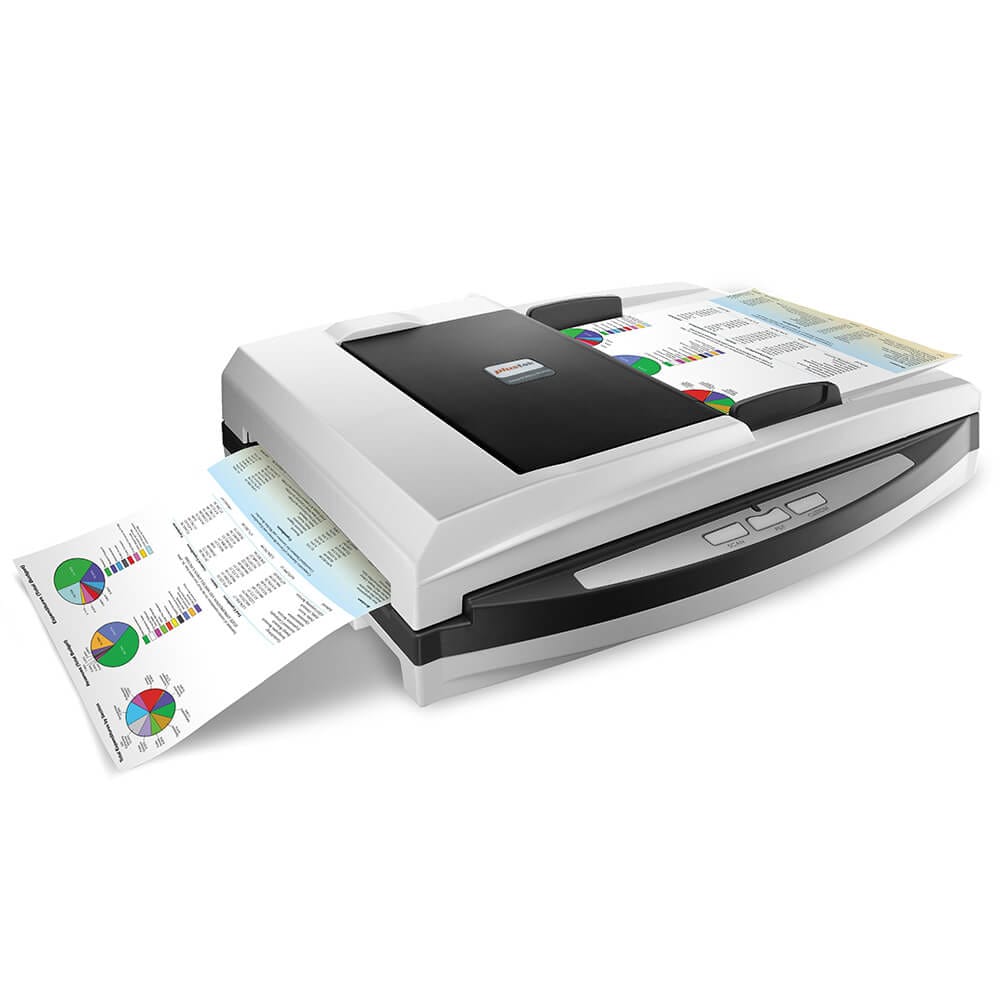

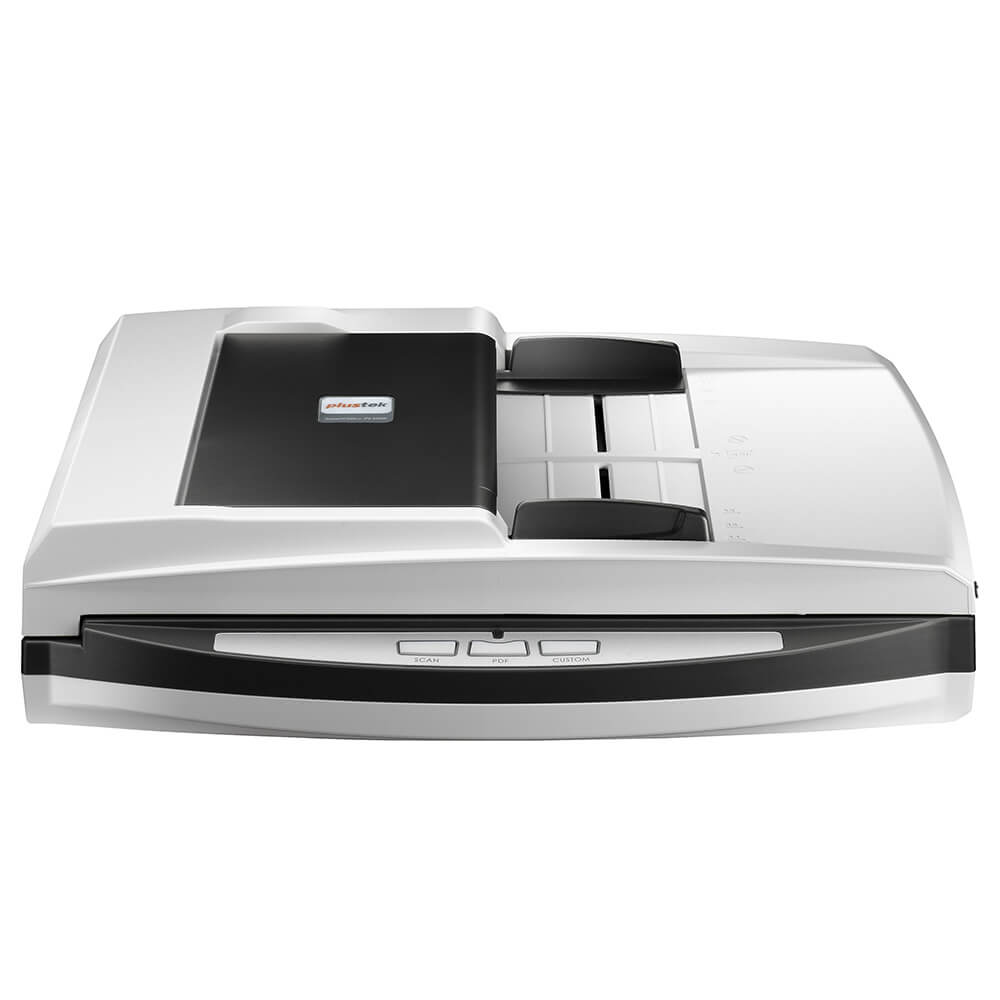

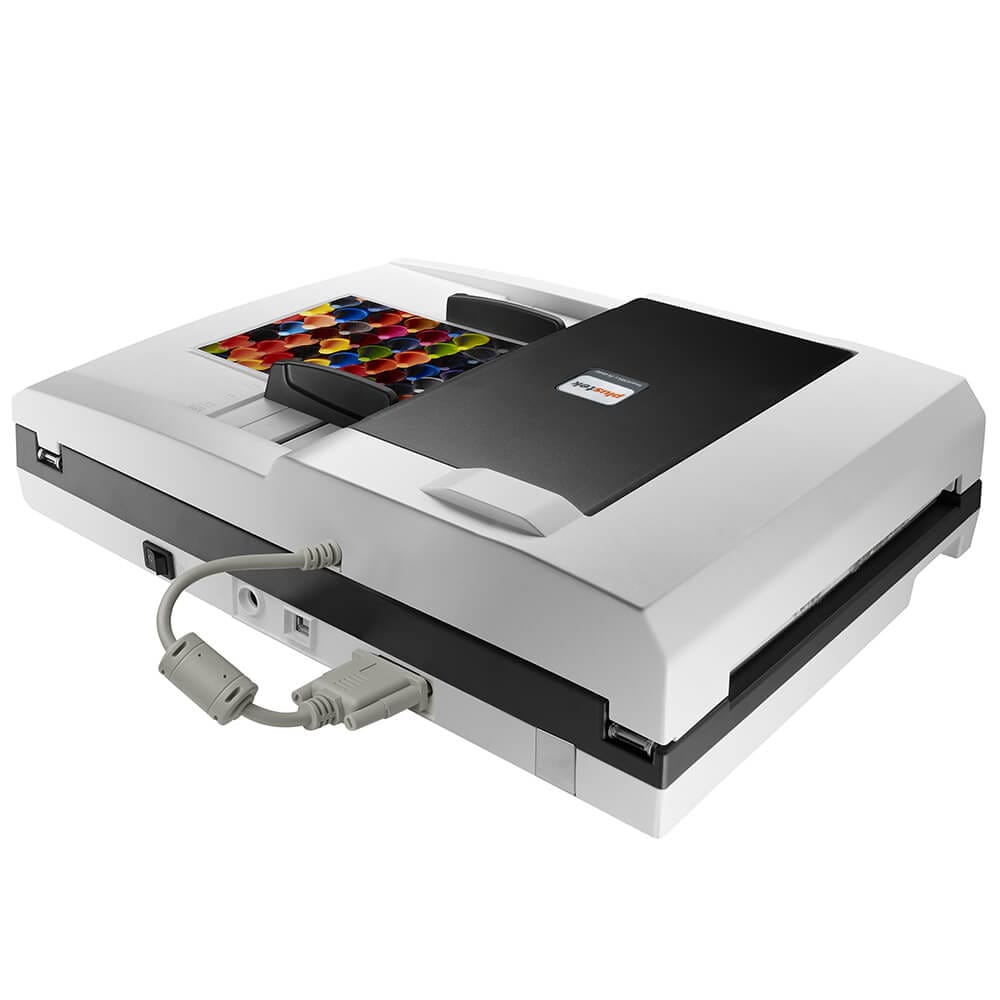

SmartOffice PL4080

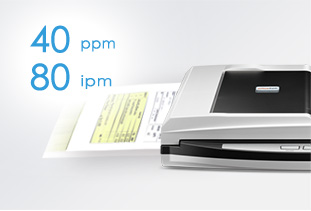

  • 40 ppm ADF speed (All color, 200dpi, A4)
  • Scan to any PC on your network
  • Automatic document detection for ADF/Flatbed
  • Duplex Scanning in Color, Grayscale or B/W

Description

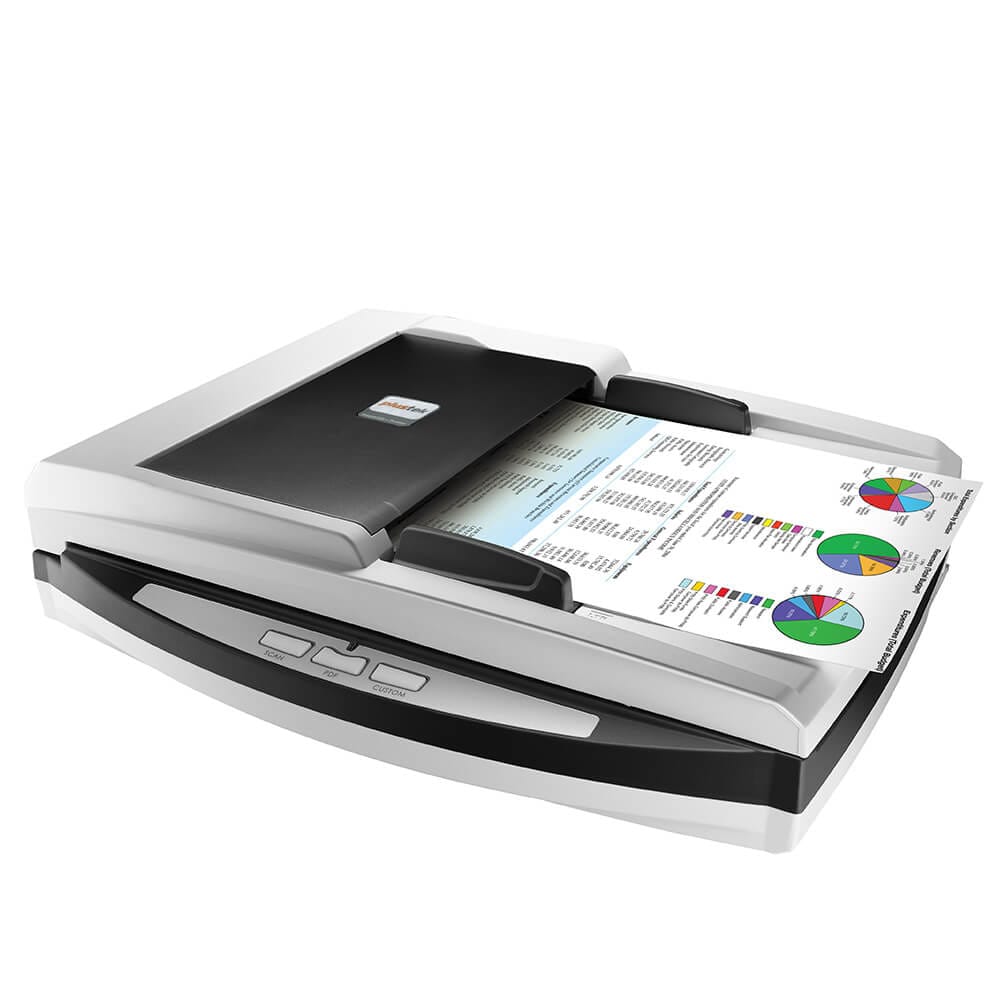

The Plustek SmartOffice PL4080 workgroup class document scanner is designed with the image quality, paper handling and reliability required by the most demanding business users.

Auto-detection for ADF and Flatbed!

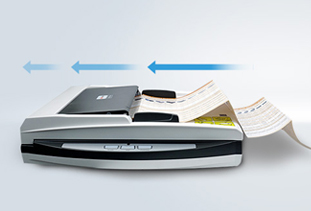

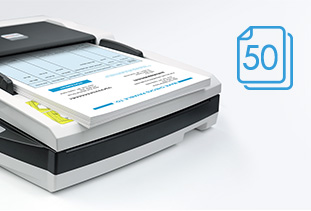

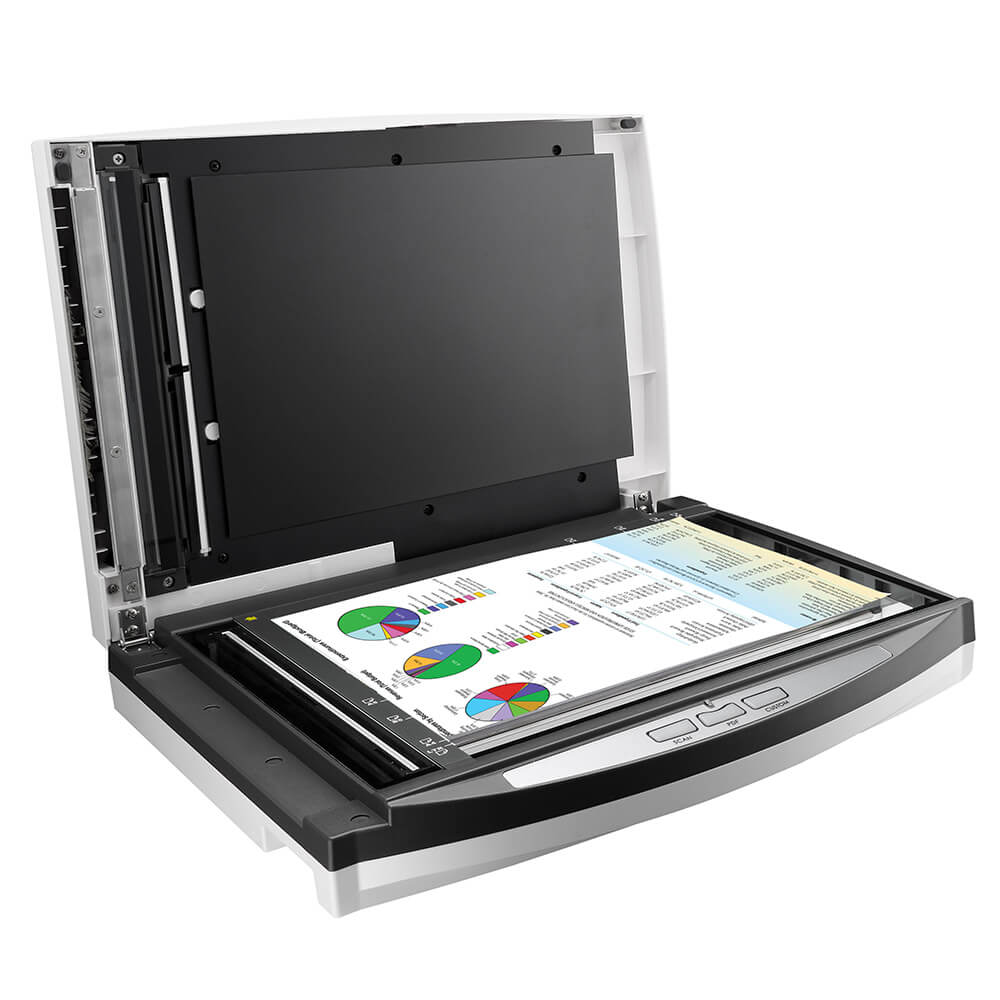

The PL4080 is a 40 pages per minute duplex scanner combining an Automatic Document Feeder (ADF) and flatbed unit with an up to 3000 pages per day duty cycle. The Automatic Document Feeder allows you to scan up to 50 pages by simply loading the feeder and pressing a button on the scanner. The flatbed enables you to scan fragile documents or small items such as receipts or business cards

Complete Your Scanning with One Touch

Single Touch buttons automate up to 7 different scanning jobs including: scan to searchable PDF, save to folder on your network or your computer, scan to email, scan to an application, and scan to printer.

Compatible with most imaging applications

Industry standard TWAIN and WIA drivers combined with TIF, JPG, PDF and Microsoft Office file formats ensure compatibility with thousands of scanning and imaging programs. ABBYY FineReader Sprint is included to easily create and manage searchable PDFs at the touch of a button. Built in image processing insures the highest image quality, reduces rescans and increases OCR accuracy.

Environmentally Responsible and Energy-Saving

The ENERGY STAR certification of the SmartOffice PL4080 guarantees environmentally responsible design features, such as low power LED illumination technology and power-saving functions.

Features

The SmartOffice PL4080 has following features:

● Auto Threshold

Automatically thresholds the current image into a binary black and white image.

● Auto Rotate

Automatically rotates document based on the contents of the document

● Auto Crop & Deskew

Automatically straightens and crops image to the documents actual size.

● Color Dropout

Removes red, green or blue color when scanning forms

● Blank Page Removal

Automatically removes blank pages without manual editing

Specification



TypeAutomatic Document Feeder (ADF) & Flatbed
Image SensorCIS x 2 (duplex)
Optical Resolution600 dpi
Hardware ResolutionFlatbed: 600 x 1200 dpi
ADF: 600 x 600 dpi
ADF Capacity50 sheets (A4/Letter, 70 g/㎡ or 18 lb.), Max. thickness under 5mm (0.2″).
20 sheets (Business Card)
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning SpeedADF Speed:
40 ppm (200 dpi, all color mode, A4 Portrait)
Flatbed Speed:
3,5 sec (200 dpi, Grayscale mode, A4)
Note: Results may vary depending upon your scanning application, computer processor and system memory
Scanning Area (W x L)Flatbed:
Max. 216 x 297 mm (8.5” x 11.69”)
Min. 12.7 x 12.7 mm (0.5” x 0.5”)
Scan : Name Card, A5, Quarto, Letter, & A4
ADF:
Max. 220 x 356 mm (8.66” x 14”)
Min. 12.7 x 12.7 mm (0.5” x 0.5”)
Scan : Name Card, A5, Quarto, Letter, A4, Folio (F4), & Legal
Acceptable Paper Sizes (W x L)Flatbed:
Max. 216 x 297 mm (8.5” x 11.69”)
Min. 12.7 x 12.7 mm (0.5” x 0.5”)
ADF:
Max. 220 x 356 mm (8.66” x 14”)
Min. 90 x 114 mm (3.55” x 4.5”)
Acceptable Paper Weight (Thickness)50 to 120 g/㎡ (14 to 32 lb.)
Daily Duty Scan ( Sheets )3.000
Roller Lifetime (Scans)100.000
Pad Lifetime (Scans)25.000
Action ButtonScan、PDF、Custom
Power Supply24Vdc/0.75 A
InterfaceUSB 2.0 port
Net Weight3.98 Kgs (8.77 Lbs.)

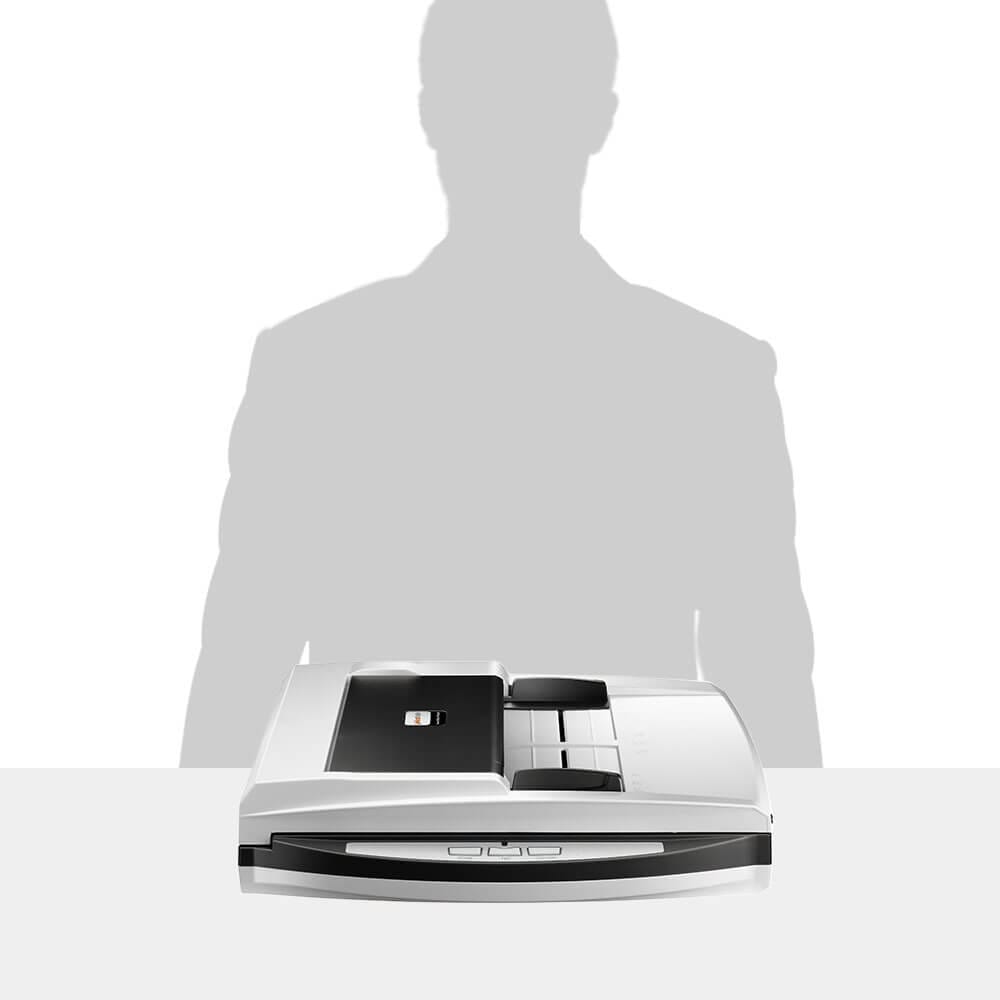

Dimensions (W x D x H)418 x 326 x 101 mm (16.45″ x 12.83″ x 4″)
ProtocolTWAIN Compliant
OSWindows XP, Vista, 7, 8, 10
Hardware RequirementsPentium IV 3.2 GHz processor or faster CPU
CD-ROM Drive
One available USB Port
2 GB RAM (or higher recommended)
2 GB free HDD space (or larger recommended)



Product Weight Specification

Net Weight3,78 Kg
Bruto Weight9 Kg
Product Dimensions (W x D x H)41,8 x 32,6 x 10,1 cm
Box Dimensions (W x D x H)59 x 56 x 28 cm
