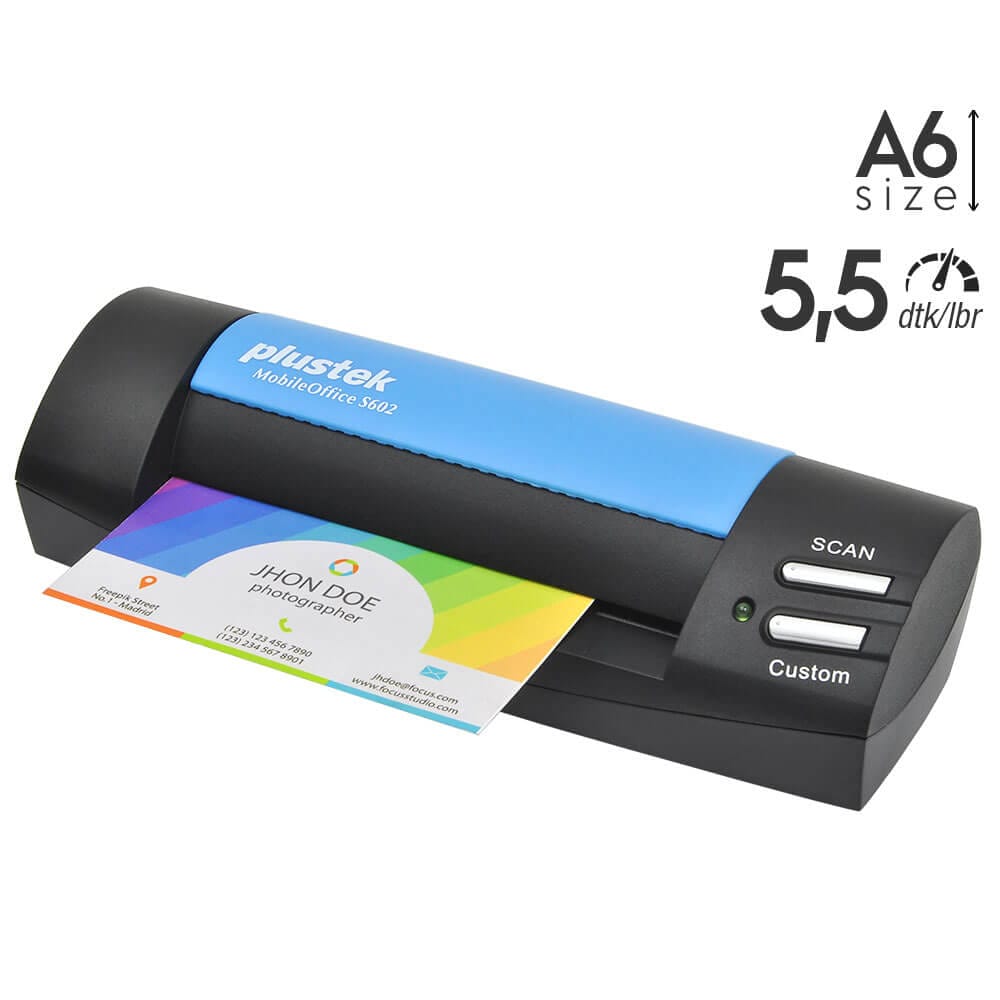

MobileOffice S602

  • A6 Size Sheetfed Color Scanning
  • Scans ID cards, drivers licences and photos
  • Business Card Management Software included
  • USB Powered

Description

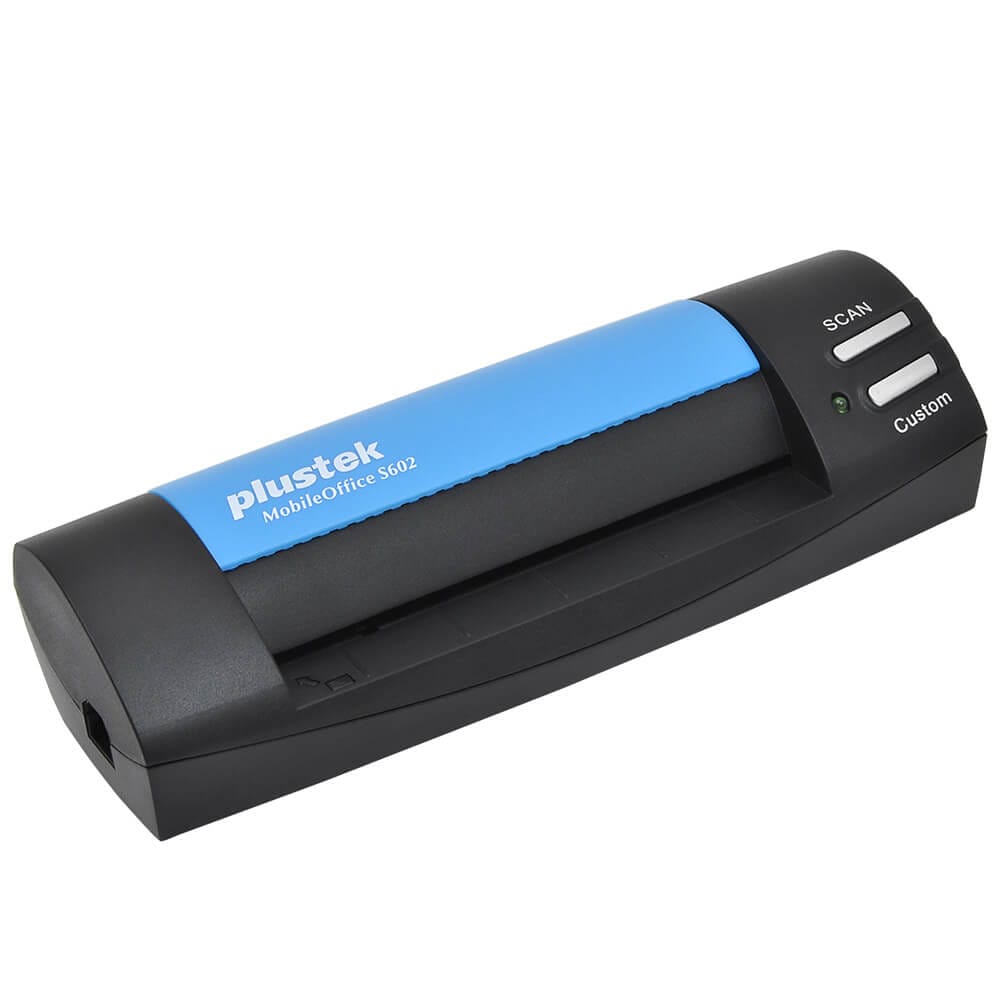

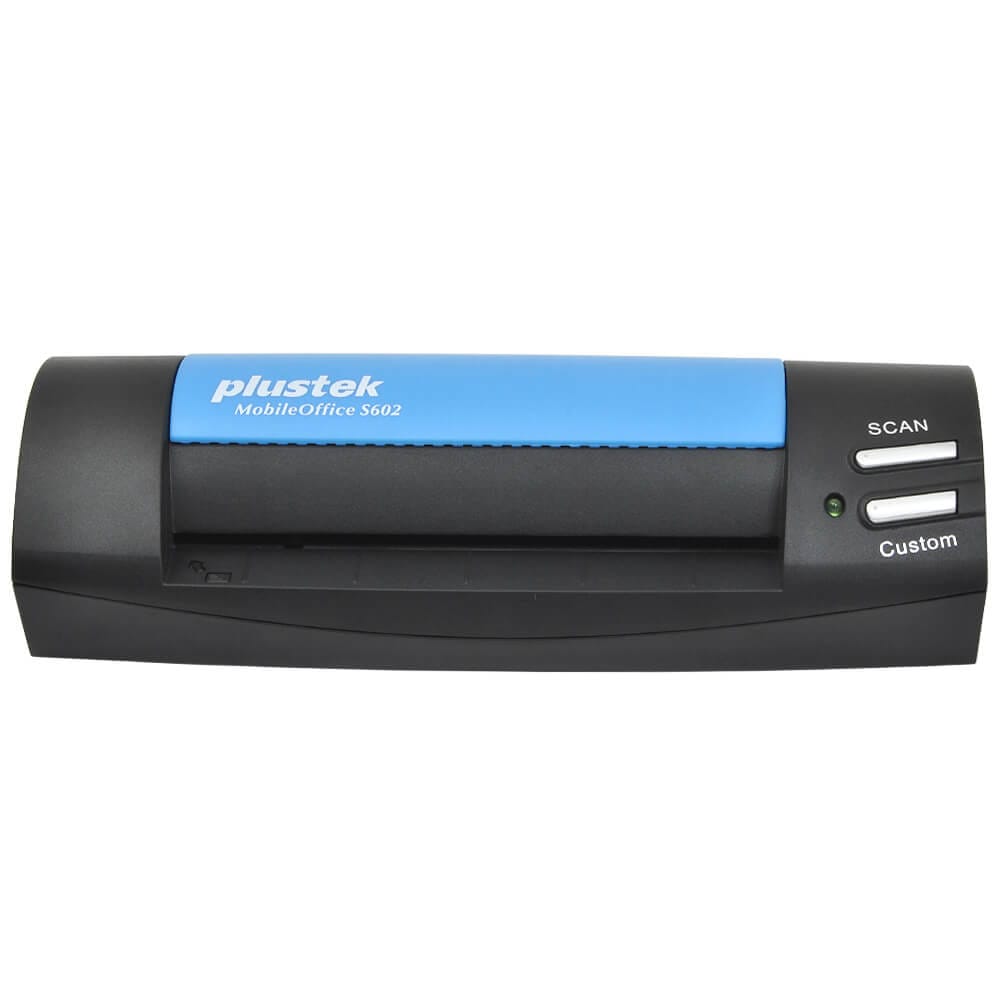

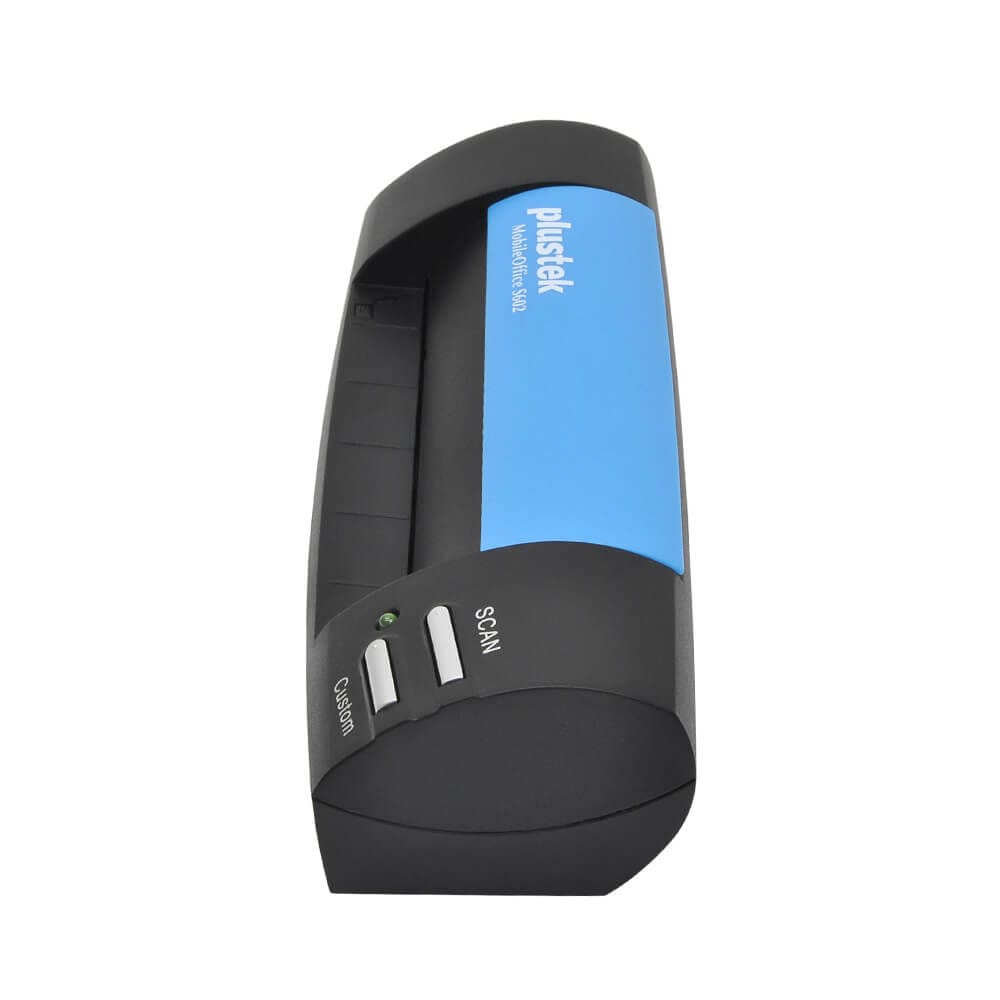

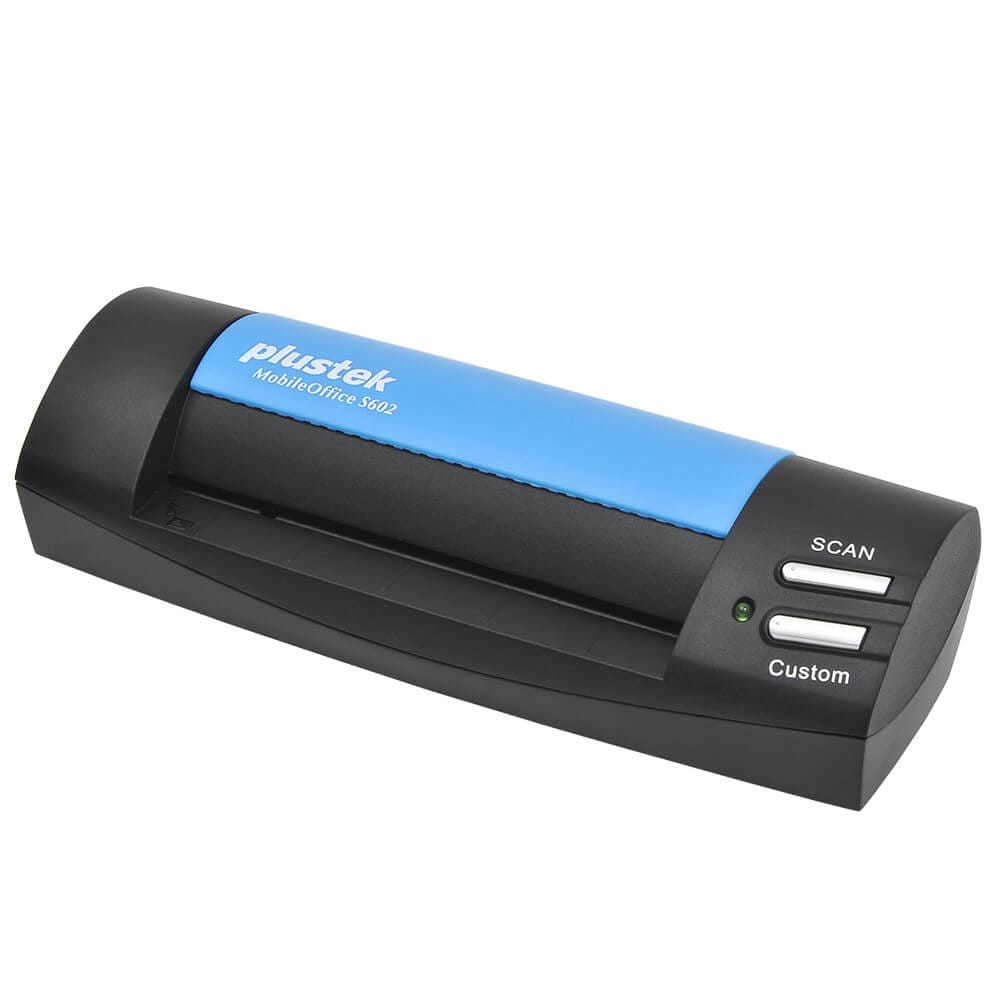

The Plustek MobileOffice S602 is a small, commercial duty, USB powered ID and card scanner. It scans drivers’ licenses, insurance cards, social security cards, membership cards such as credit and healthcare benefit account cards. Card, receipt or document as small as 1.3″ x 1.7″ is easily scanned. The MobileOffice S602 also offers high-resolution scanning of 4″ x 6″ color photos. The built in software and image processing enables scanning and PDF creation at the touch of a button. TWAIN and WIA drivers ensure compatibility with thousands of healthcare and ID card reading systems.

LED Light Source

LED light source provides stable illumination that results in higher quality images with no warm-up time.

Compact and Lightweight Design

This small scanner takes up as little desktop space as a smartphone and is easily transportable.

USB Powered

The USB 2.0 interface lets you scan images in as fast as 6 seconds. The scanner is powered by the USB cable eliminating the need for power adapters and other cables.

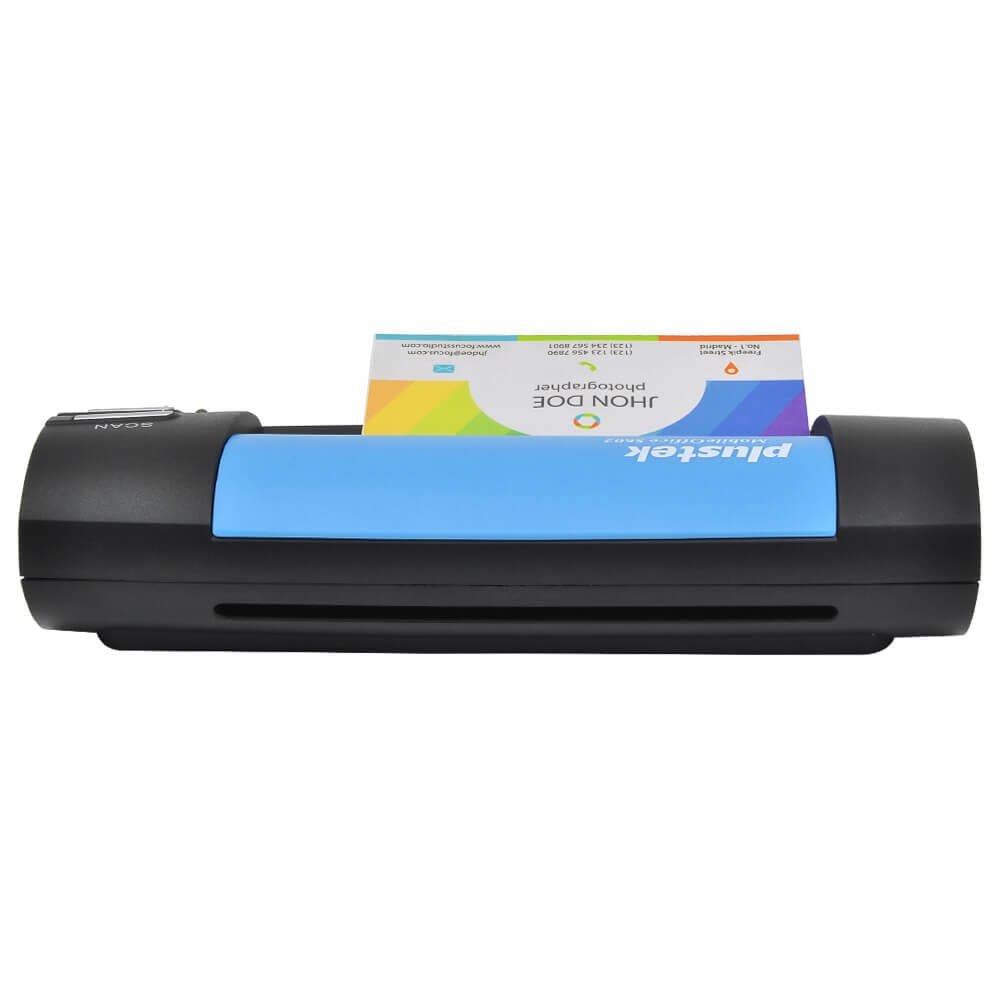

Business Card Management

Comprehensive BCR (Business Card Recognition) software that helps you scan business cards, edit business cards, and then synchronize the contacts to various management applicationsa

Specification



Light SourceLED
Image SensorCIS
Optical Resolution1200 dpi
Hardware Resolution1200 x 1200 dpi
Scan ModesColor: Input 48-bit; Output 24/48-bit
Grayscale: Input 16-bit; Output 8/16-bit
B/W: 1-bit
Scanning Speed5.5 Seconds (Color, 300 dpi, A6)
Scanning Area (W x L)Maximum: 104.9mm x 500mm (4.13″ x 19.69″)
Minimum: 33mm x 43mm (1.3″ x 1.7″)
TWAIN support 104.9 x 500 mm (4.13” x 19.69”)
Name card, Postcard (3R)
Acceptable Paper Weight (Thickness)Paper: 50 g/㎡ to 120 g/㎡
Plastic card: Non-Embossed up to 0.76 mm
Action ButtonScan, Custom
InterfaceUSB 2.0
Net Weight0.19 Kgs (0.42 Lbs)
Dimensions (W x D x H)174.5 x 60.5 x 38.5 mm (6.87″ x 2.38” x 1.52”)
ProtocolTWAIN Compliant
OSWindows 7 / 8 / 10
Hardware RequirementsIntel Core 2 Duo 1GHz processor or higher
DVD-ROM drive
One available USB 2.0 Port
2 GB RAM
2 GB Hard disk free space



Product weight specification

Net weight0.19 Kg
Bruto weight1 Kg
Product Dimensions (W x D x H)17,45 x 6,05 x 3,85 cm
Box Dimensions (W x D x H)26 x 18 x 5.2 cm



Downloads



Driver Scanner :
Icons Windows MobileOffice S602 Driver for Windows XP-10
Size : 69.5 mB (updated 26 January 2017)
Leaflet :
Icons-PDF MobileOffice S602 Leaflet
Size : 858 kB (updated 7 February 2017)
